25 EX – SPECS

Overall length: 8,32 m
Hull length: 7,88 m
Maximum beam: 2,84 m
Dry weight (approx., depends on engines & options): 4.000 kg
Maximum horsepower:2 x 230 HP
Fuel capacity: 360 l
Fresh water capacity: 80 l
Sleeping capacity: 2
CE navigation category: B
Maximum persons capacity: 6
CE navigation category: C
Maximum persons capacity: 8

STANDARD MECHANICAL AND ELECTRICAL FITTING

General electrical system

Electrical system 12 V
General electrical panel inside

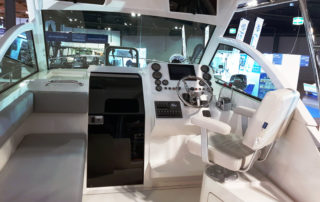

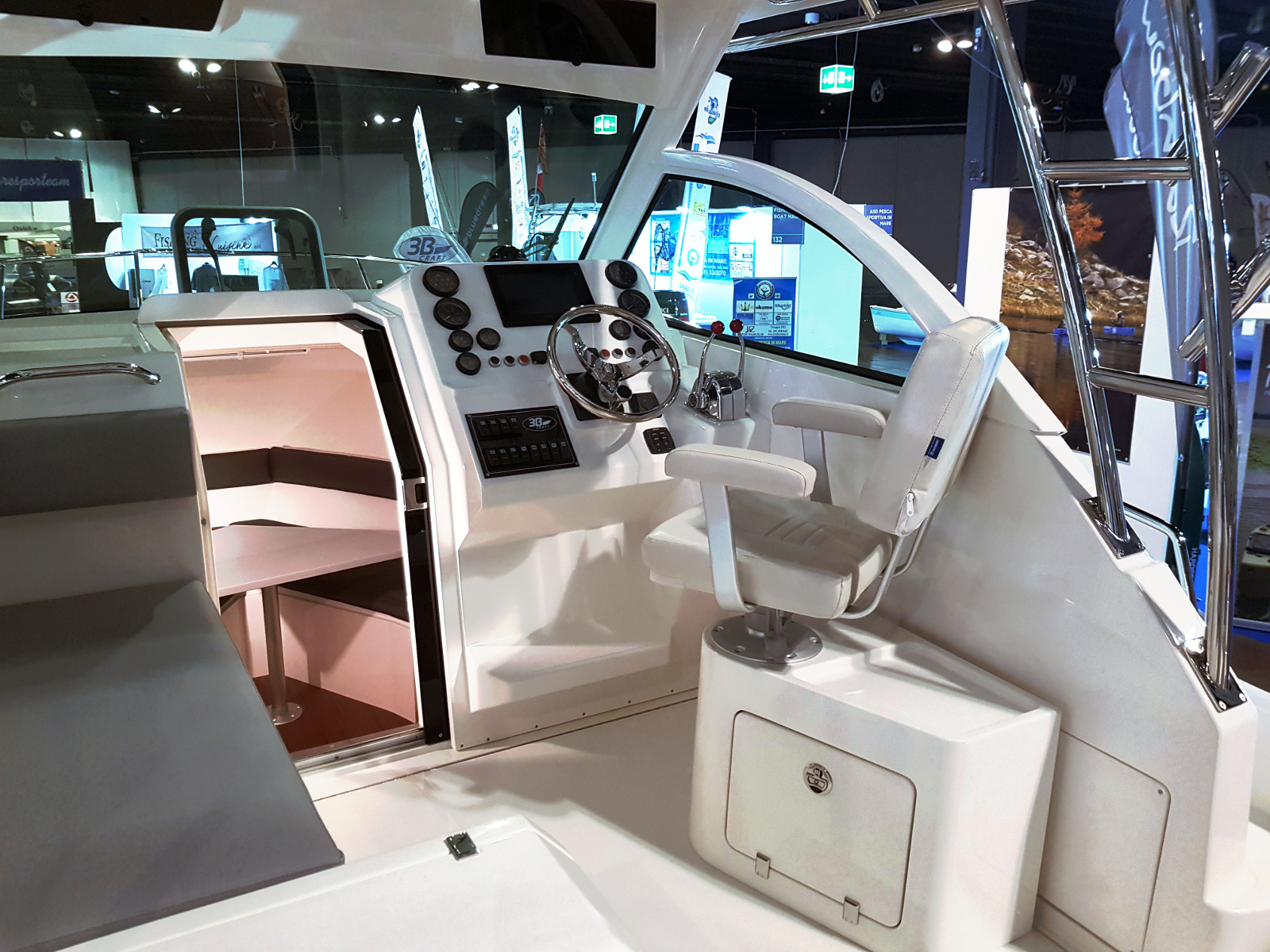

Helm panel with engines instrument package: rev. meters, water thermometers, oil-pressure gauges, engine hour meters, water level, fuel level, acoustic warning signals for engines alarm
2 x 160 Ah batteries
n° 3 battery switches
Battery parallel
Compass 3”
Built-in lights in all the rooms
Current taps 12 V

Fuel system

n° 2 stainless steel fuel tanks – capacity 360 l
Fuel level indicator
n° 1 fuel filler cup
Fuel filters

Fresh water system

Fresh water tank – capacity 80 l
Water level indicator
n° 1 fresh water filler cup
Fresh water pressure system pump
Sea water suction filters

Bilge pump system

n° 3 automatic bilge pumps
n° 2 manual bilge pumps

Steering system

Hydraulic steering
Ships’ wheel

Engine controls

One lever mechanical controls
Control cables

Safety

Fire extinguishing system in the engines room
n° 3 manual dry fire extinguishers
Remote-controlled fuel tanks closing system with electric valves
Remote-controlled engine vents closing system

Complete system of zincs for galvanic current

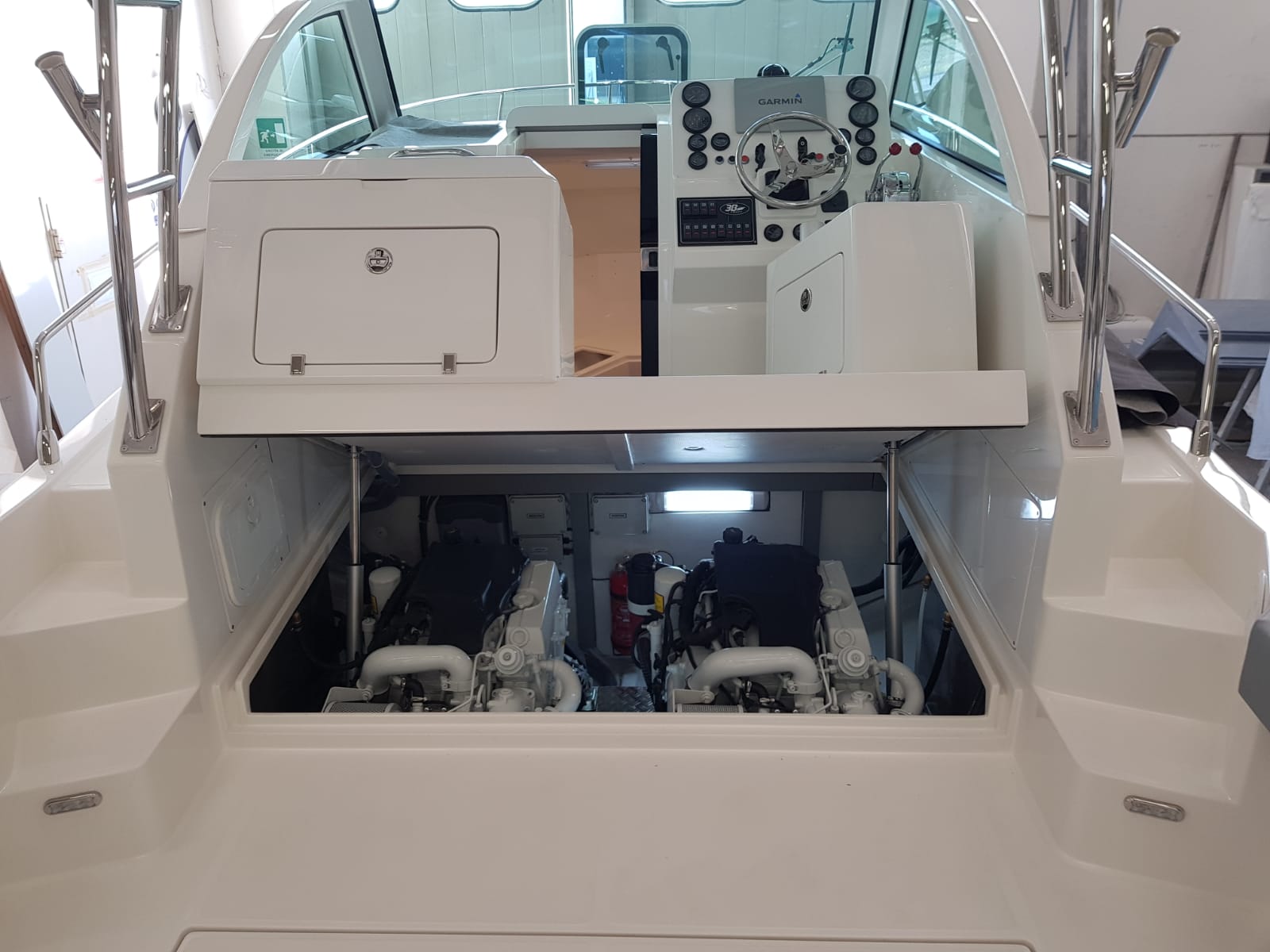

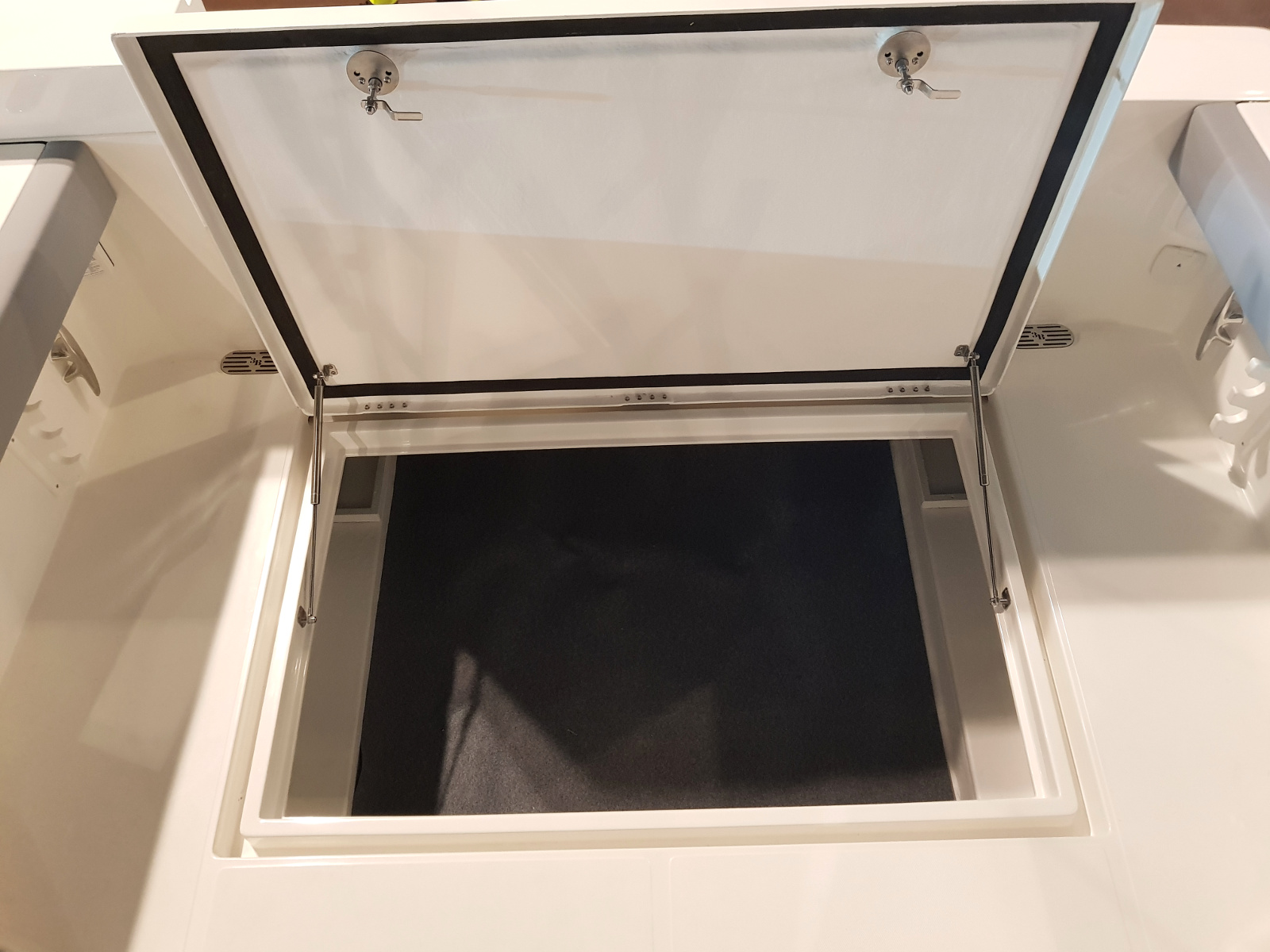

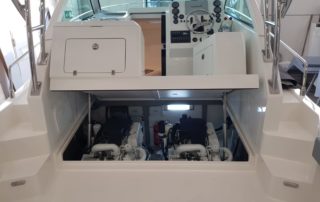

Electric engines hatch-lift
Engines room acoustic insulation

STANDARD OUTDOOR FITTING

Hull

Gel coat
Hand-laid fiberglass with vinyl ester resin skin coats
Termanto cored topsides
Solid fiberglass bottom
Water-line
Antifouling bottom paint
PVC rubbing strake

Deck

Gel coat
Hand-laid fiberglass
Termanto core

Structures

Ply-Foam stringer system
Plywood bulkheads

Navigational lights

Navigational lights
Stainless steel support for 360° light
Radar reflector

Hatchway and portholes

n° 1 aluminium hatchway with plexiglas in the bow cabin

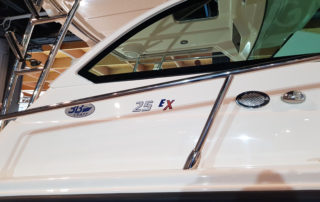

n° 2 aluminium portholes with plexiglas

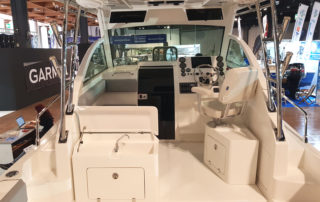

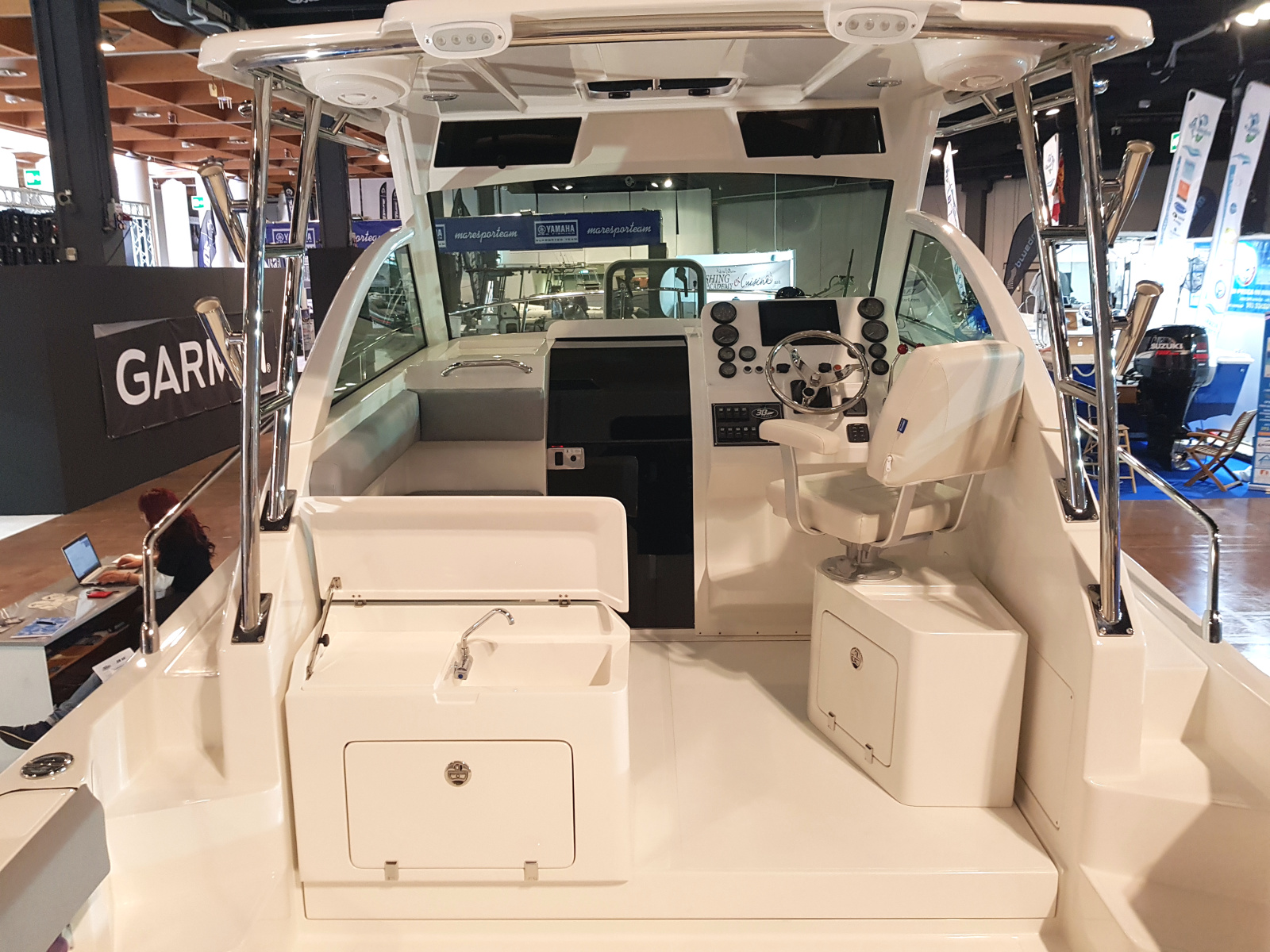

Cockpit and deck fitting

Fiberglass Hard Top
Stainless steel structure with 4 rod holders
Hard Top total enclosures
n° 1 aluminium hatchway with plexiglas in the Hard Top
Cockpit lights
Glued tempered glasses
Windshield wiper with washer

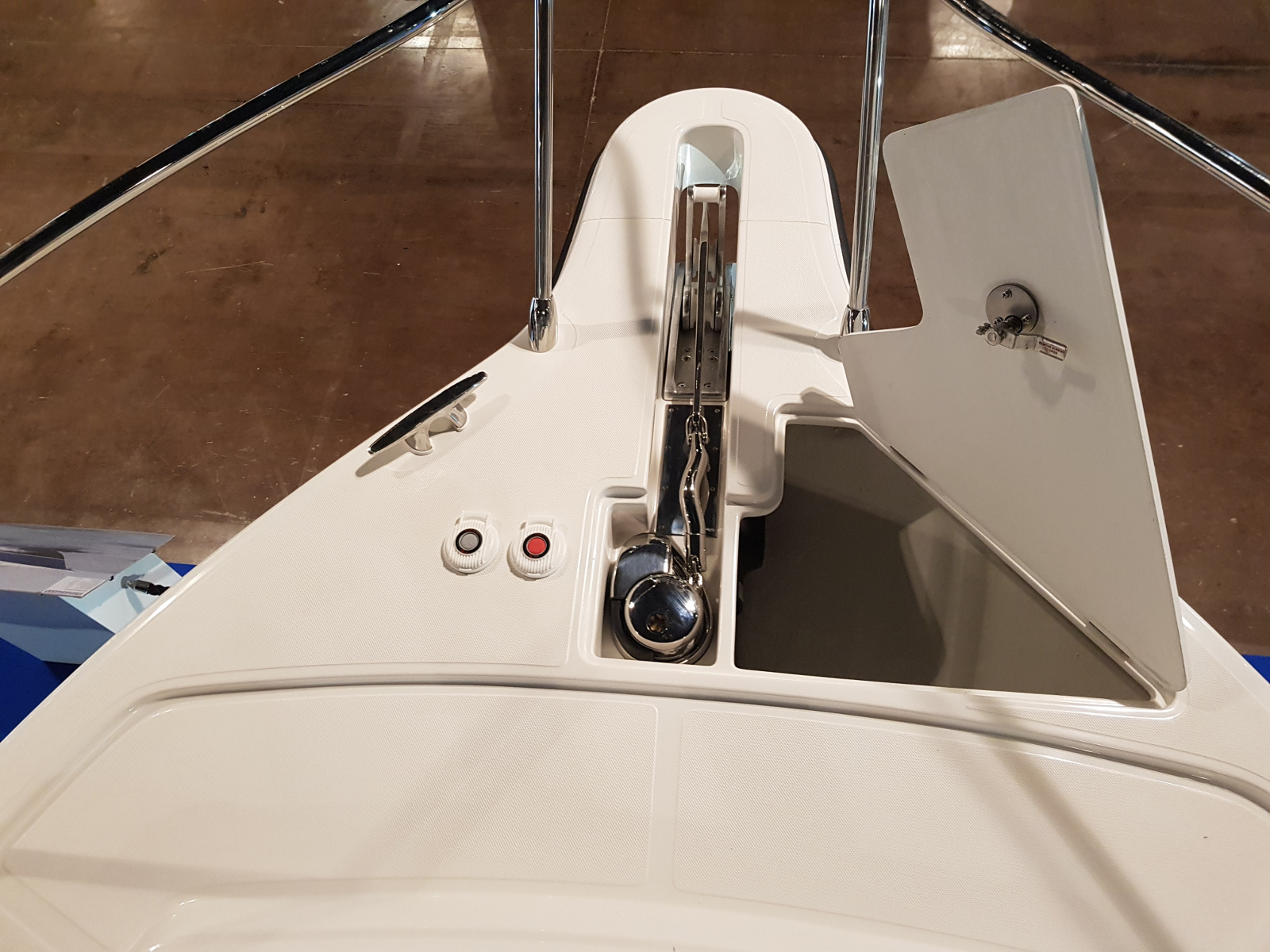

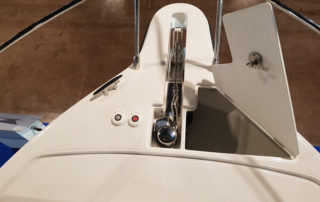

Bow plate
Stainless steel bow pulpit
Delfiniera included in the hull mould
Chain peak with drain
n° 6 stainless steel mooring cleats
n° 2 stainless steel stern mooring hawsers
n° 4 stainless steel built-in rod holders
Acoustic warning signal

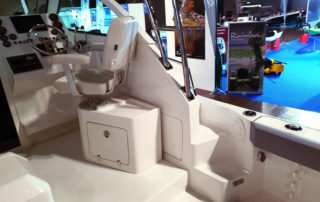

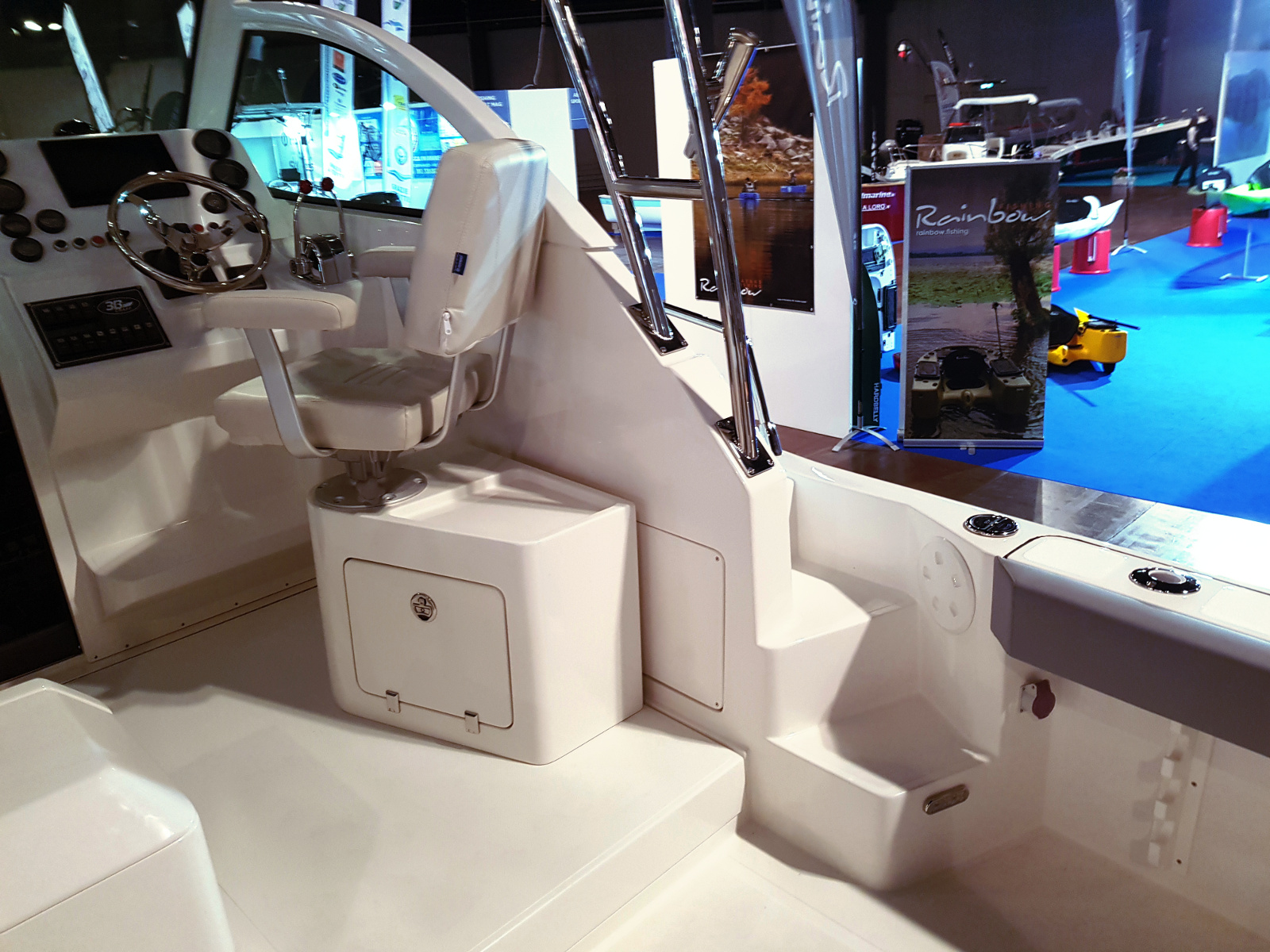

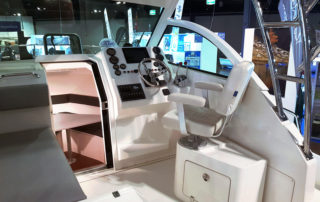

Pilot chair

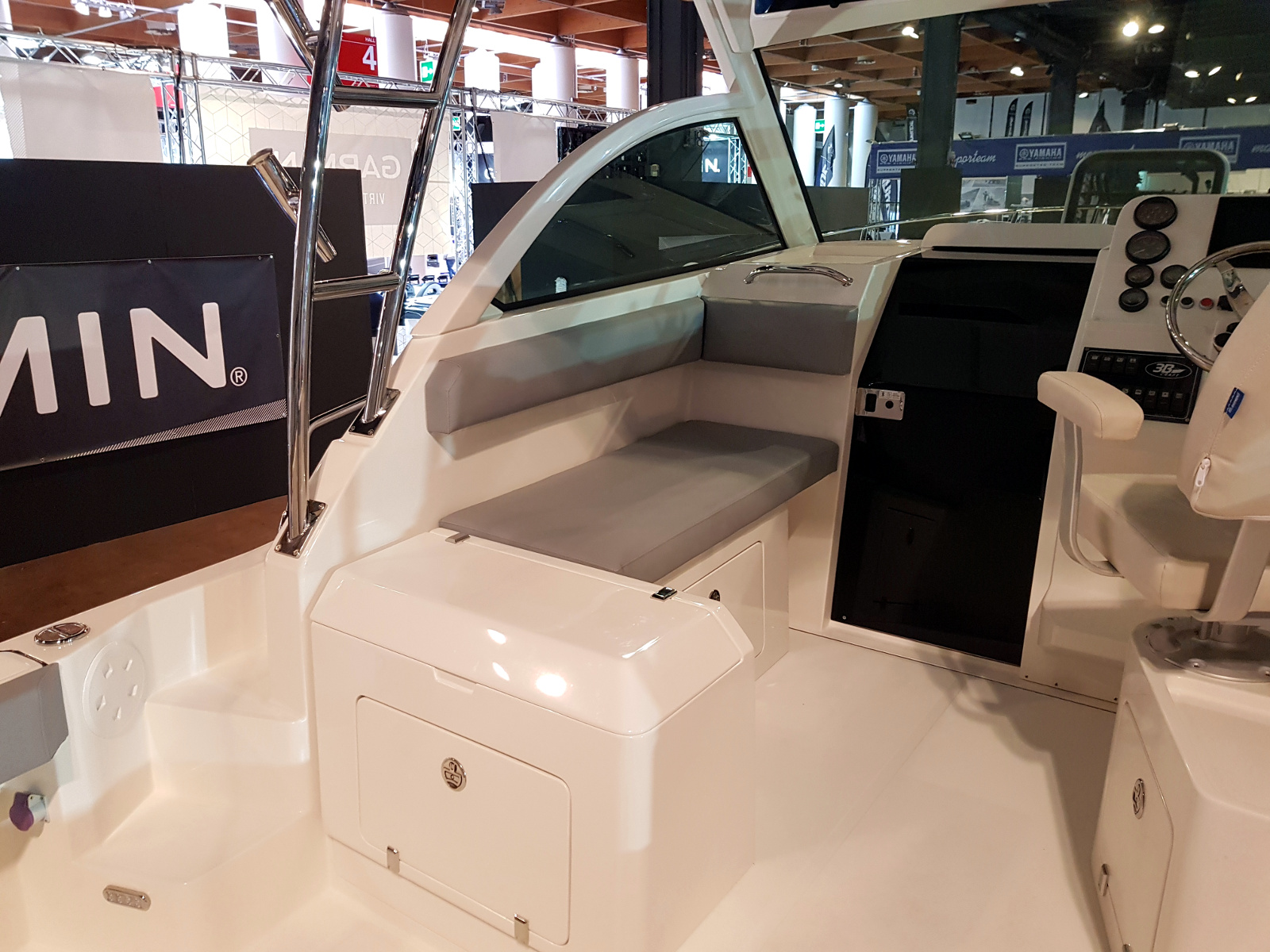

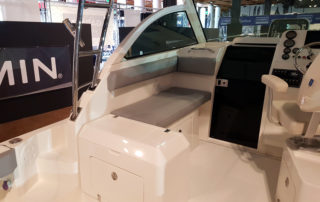

Co-pilot bench
Cockpit paddings
Courtesy lights

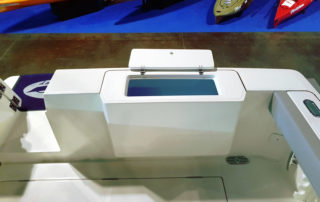

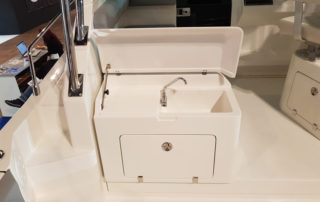

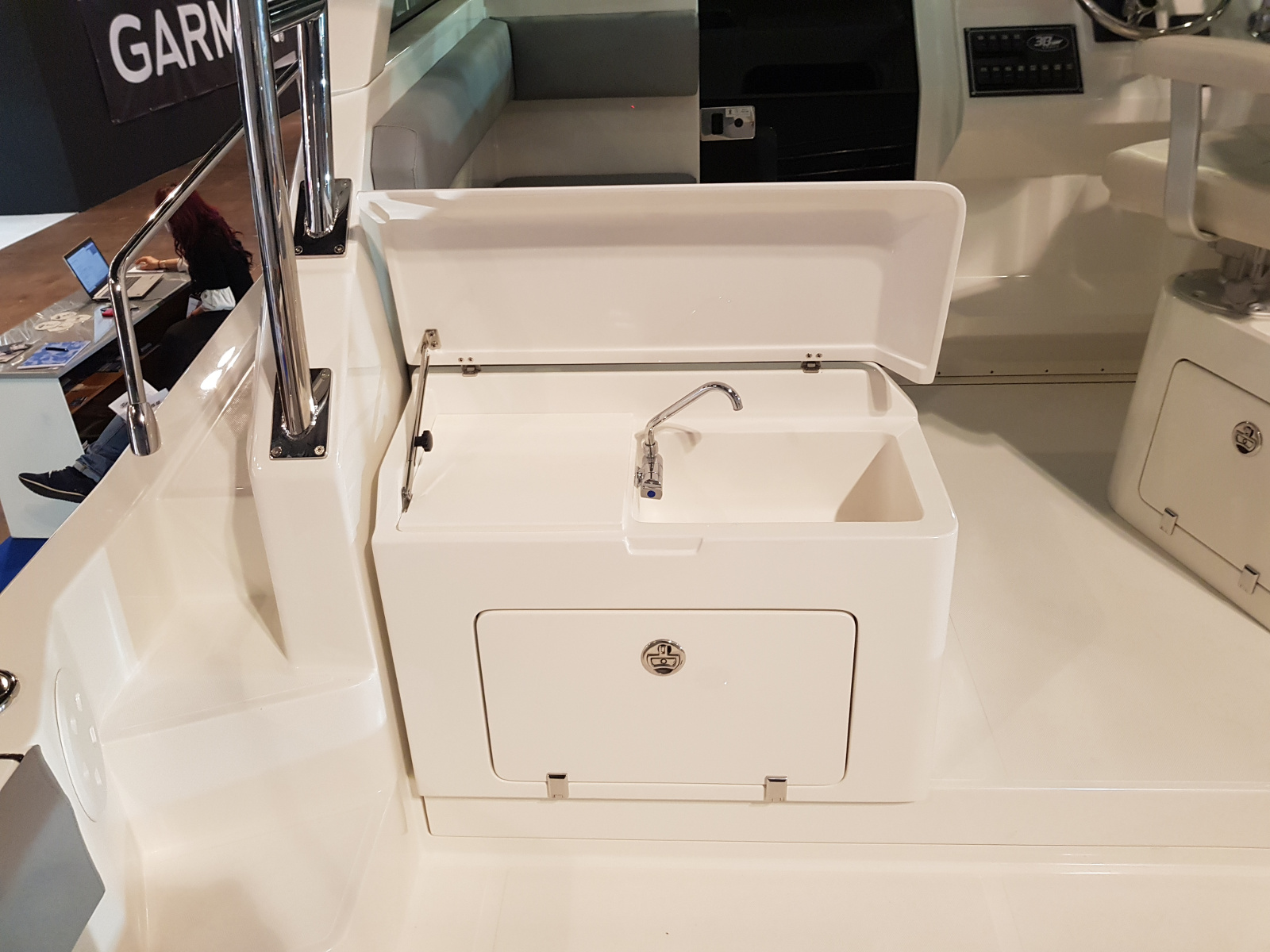

Cockpit storage with tub for fish

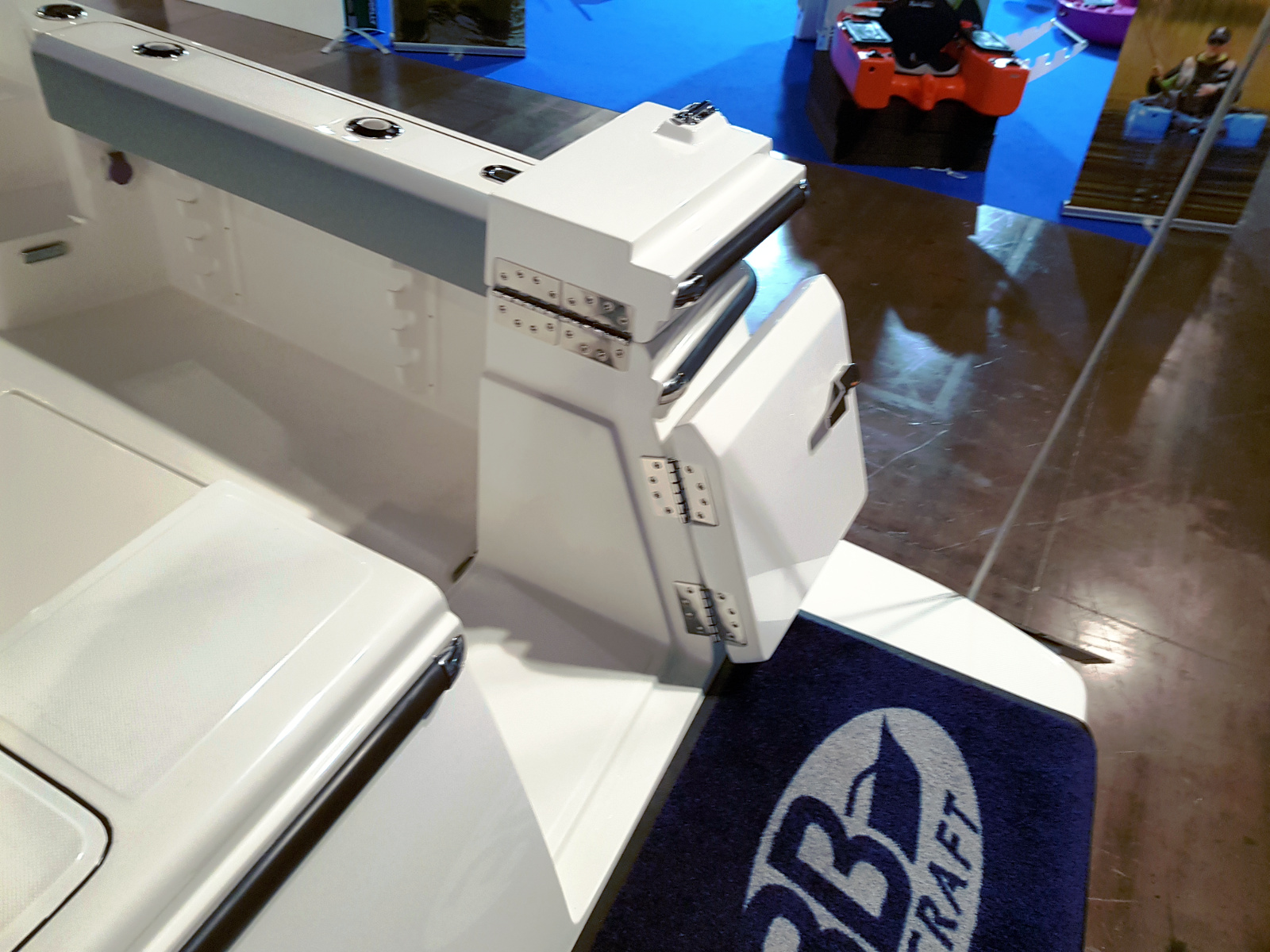

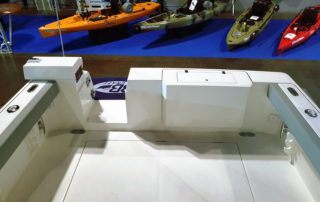

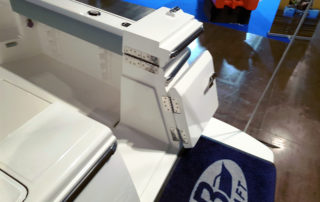

Transom door with tuna gate
Swim platform with stainless steel boarding ladder

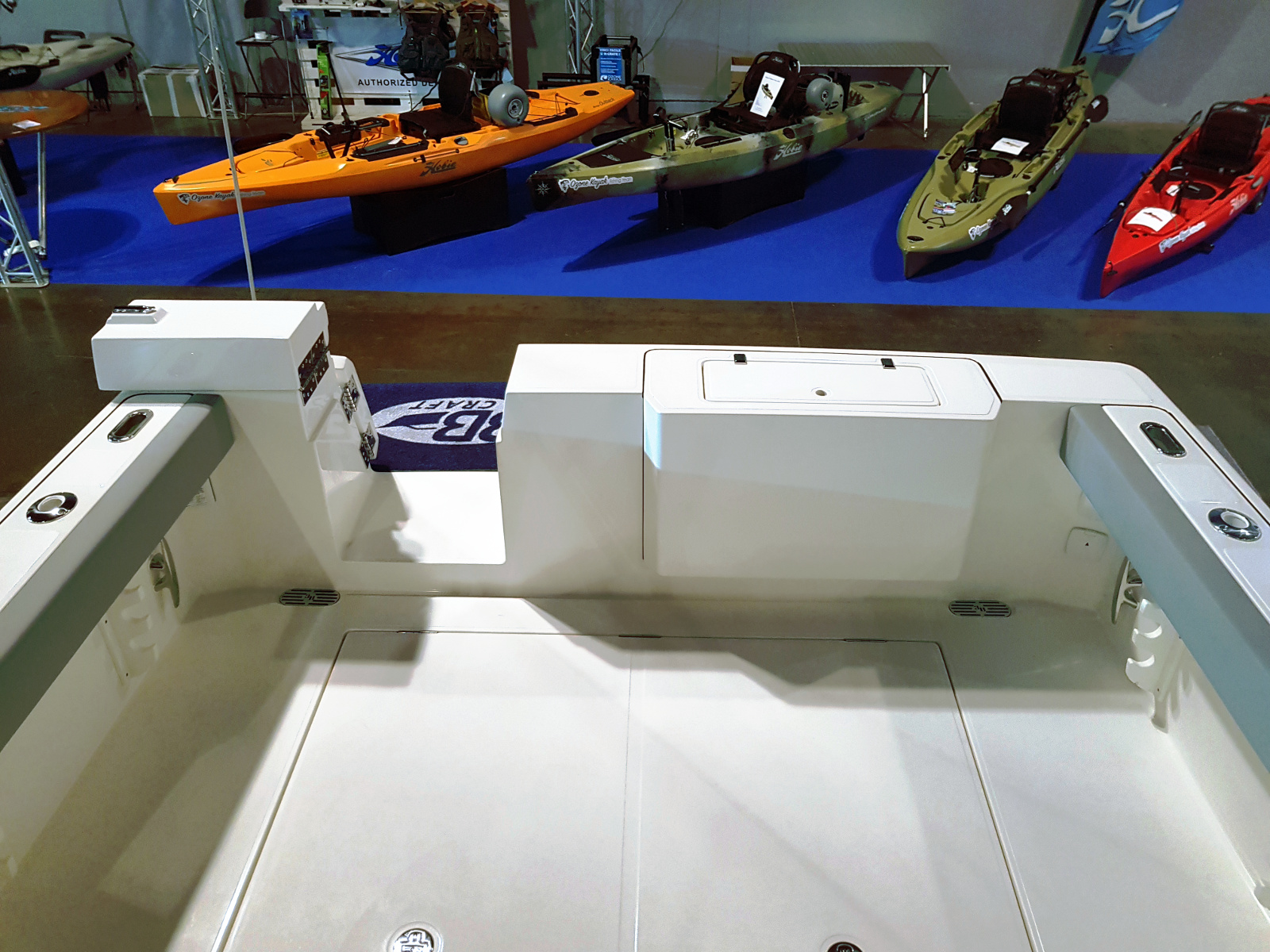

Self-draining cockpit

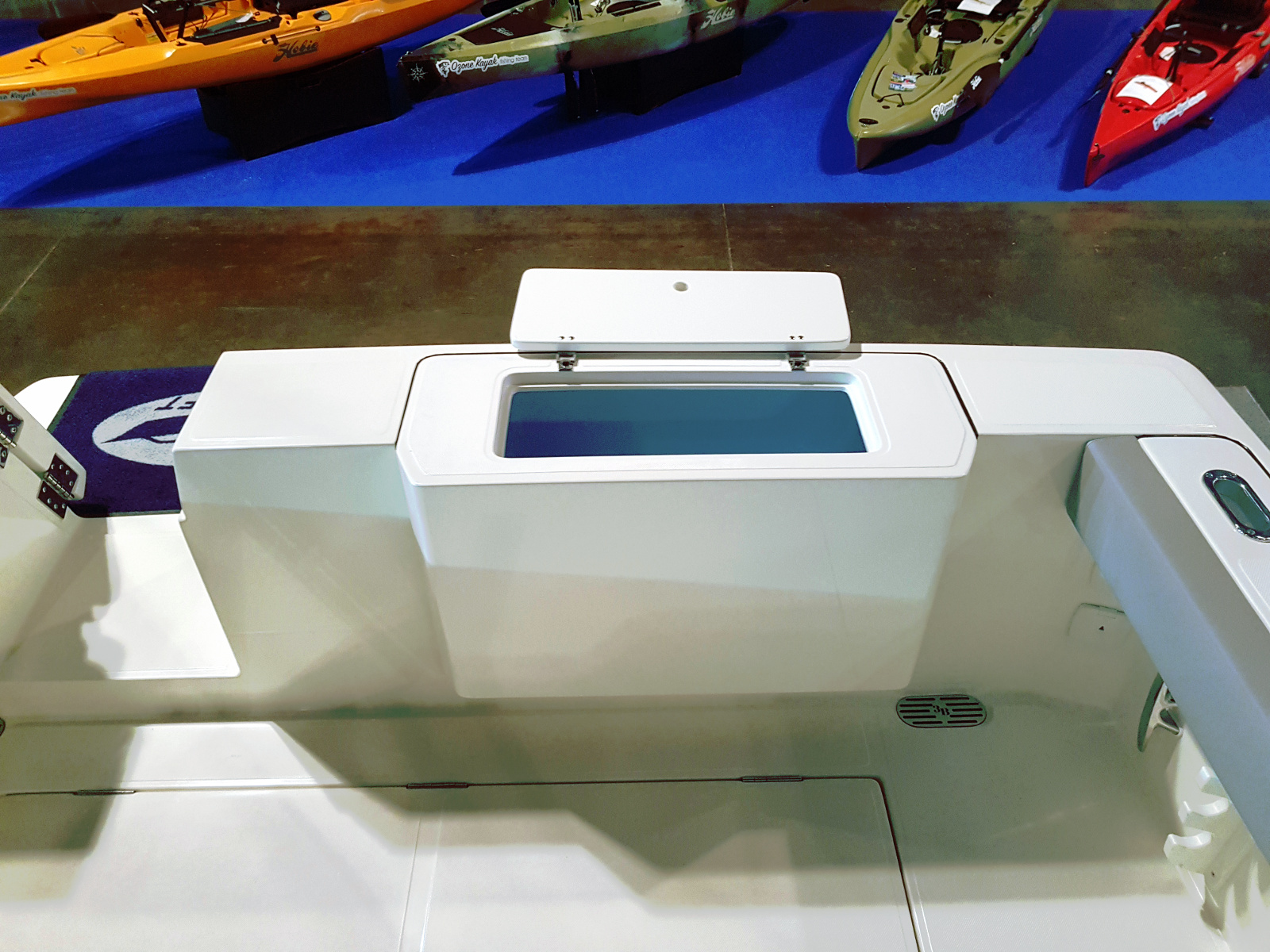

Transom fish box with pump
Non-skid surface on the deck and the cockpit

STANDARD INTERNAL FITTING

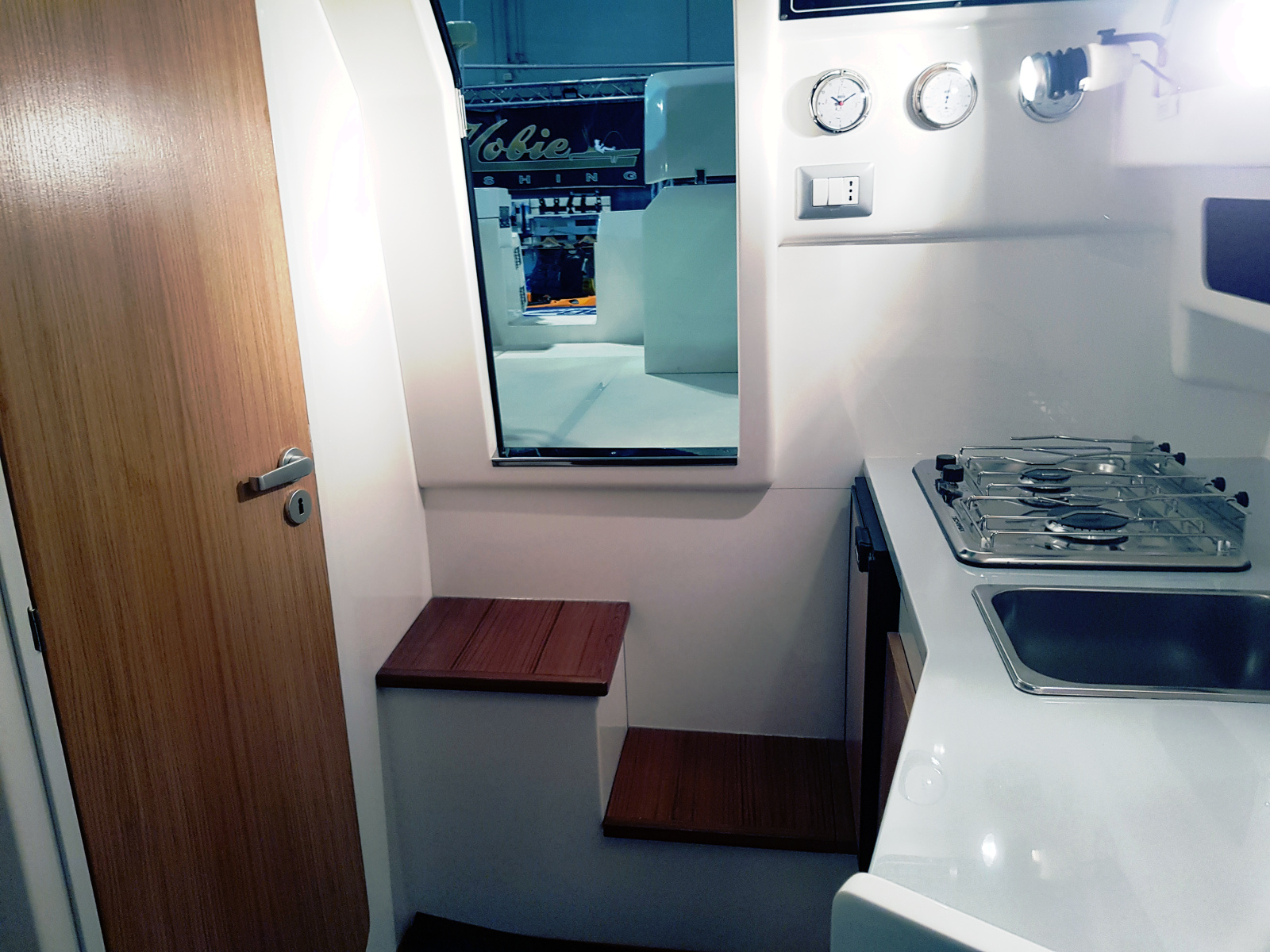

Bow cabin

Sliding entrance door in the cabin in plexiglas with lock
Cabin stairs with wood steps

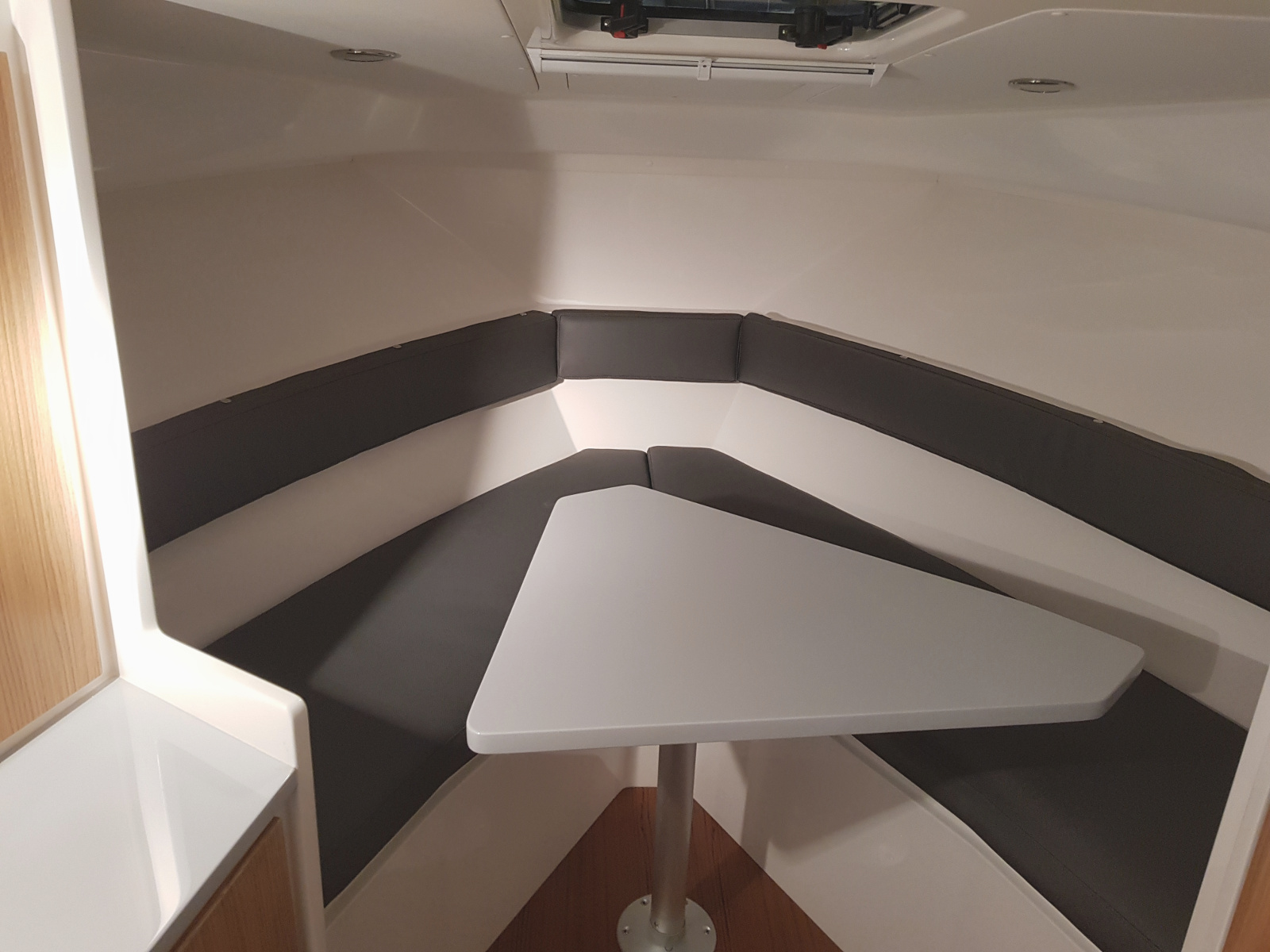

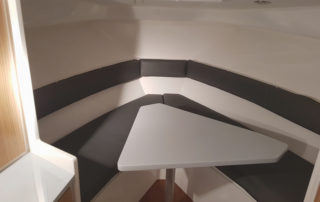

Dinette lounge with cushions convertible into berth for two
Dinette table in wood
Storages below lounge
Clock, barometer and thermometer with hygrometer

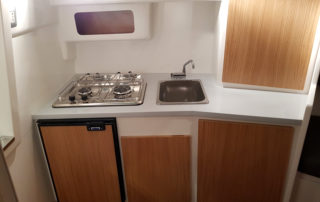

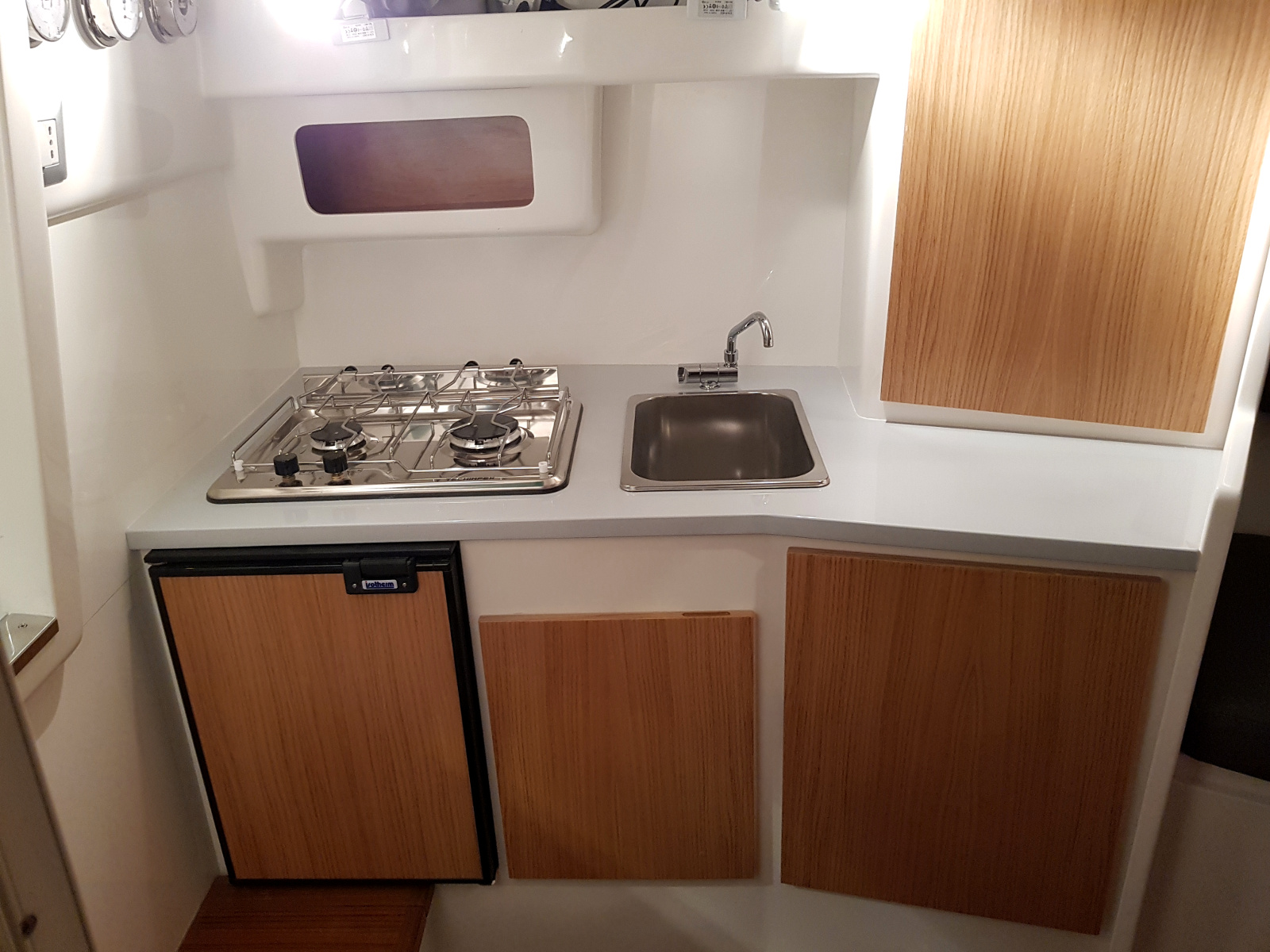

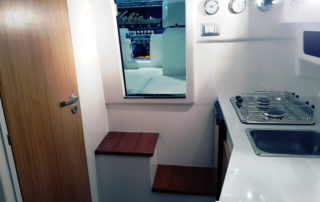

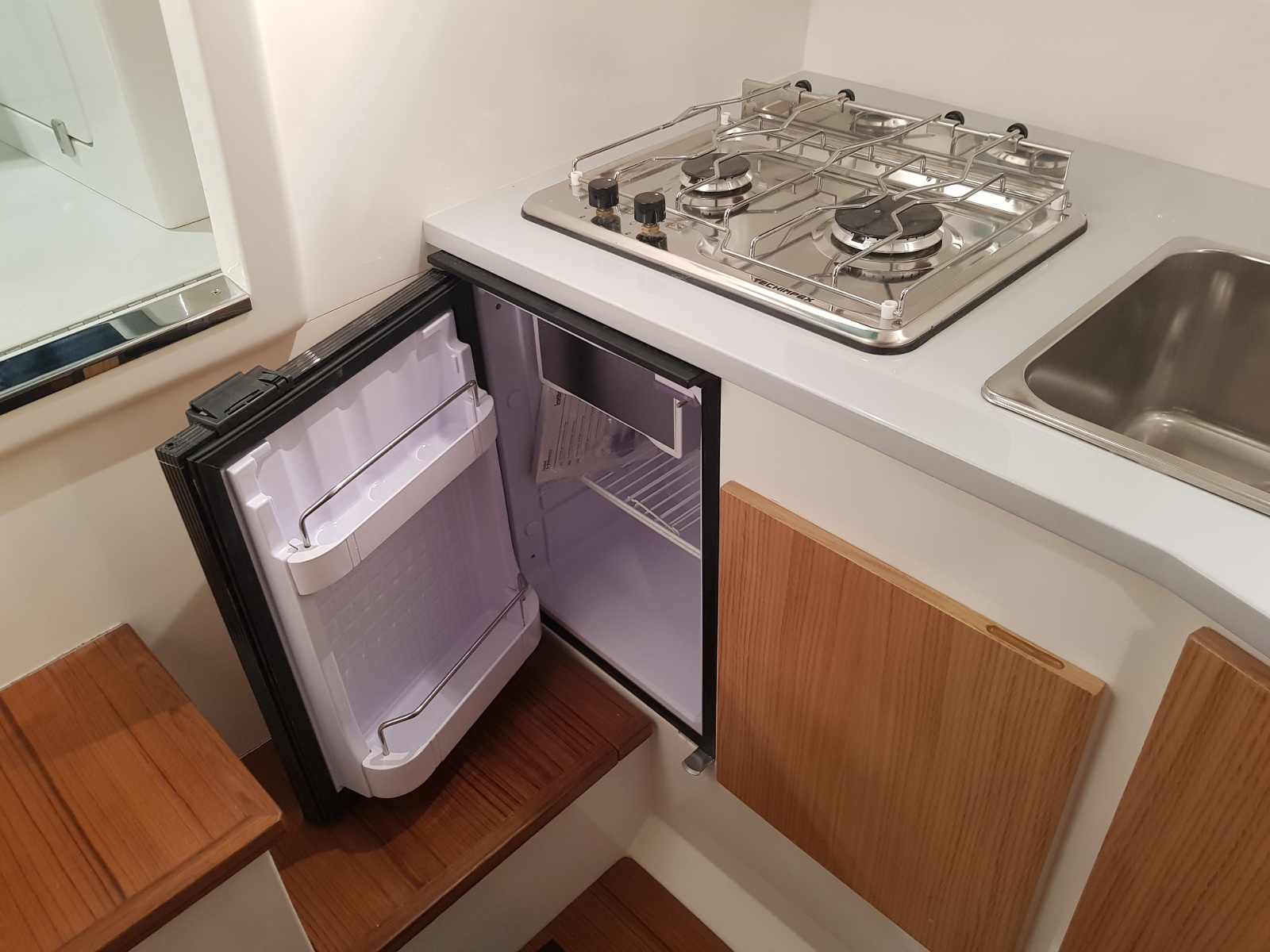

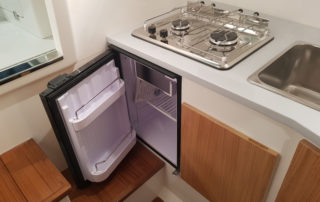

2-burners cooker
Stainless sink in the kitchen

Bathroom

Electrical toilet
Waste system with holding tank, level and filter

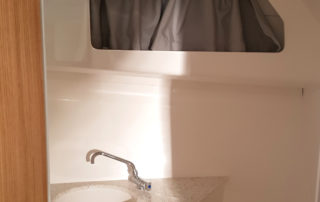

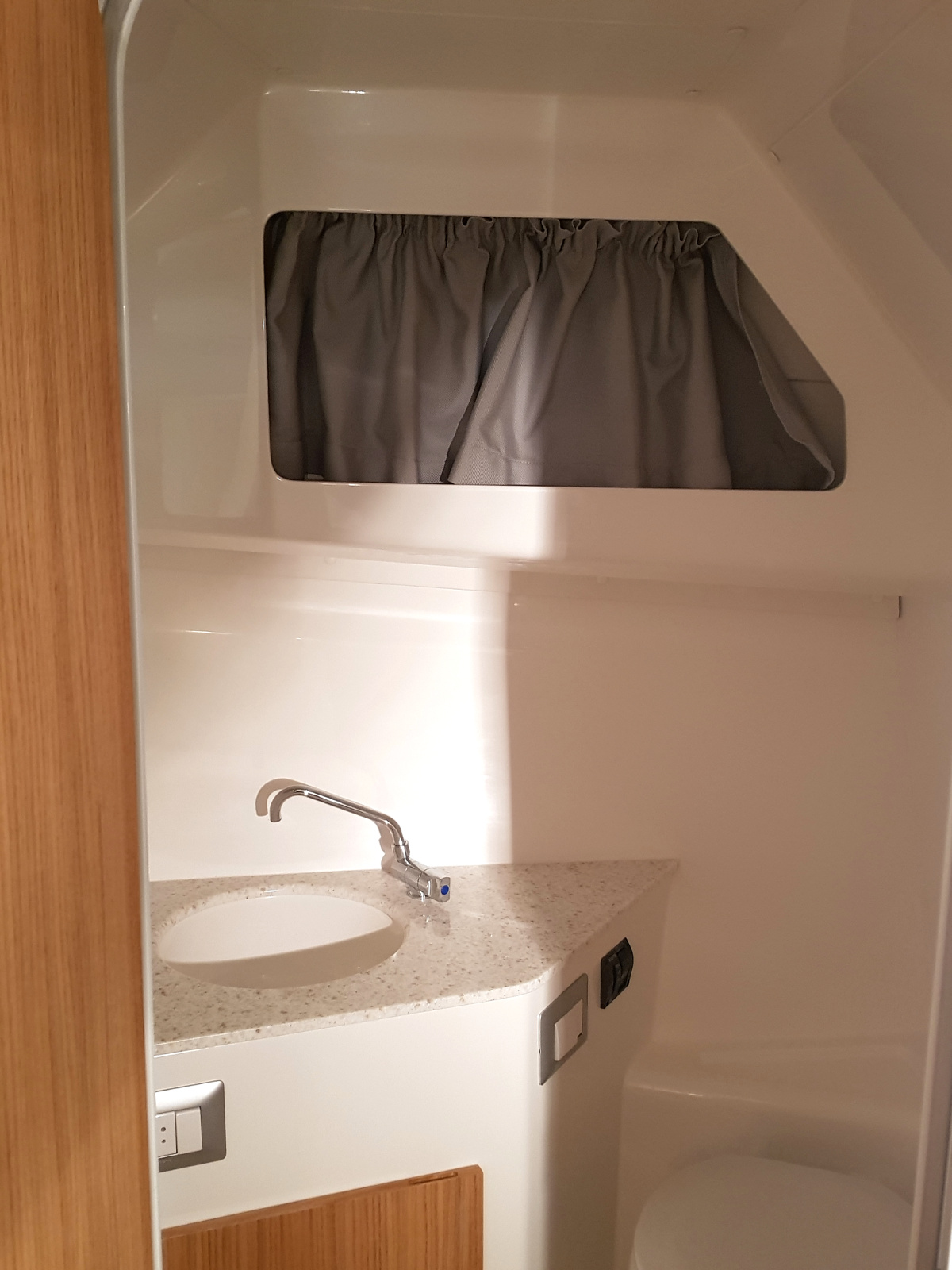

Bathroom sink

Inside furniture and cabin floor in wood

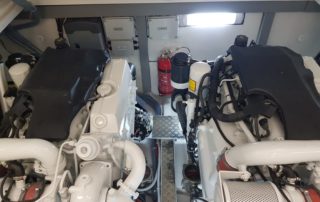

POWER OPTIONS

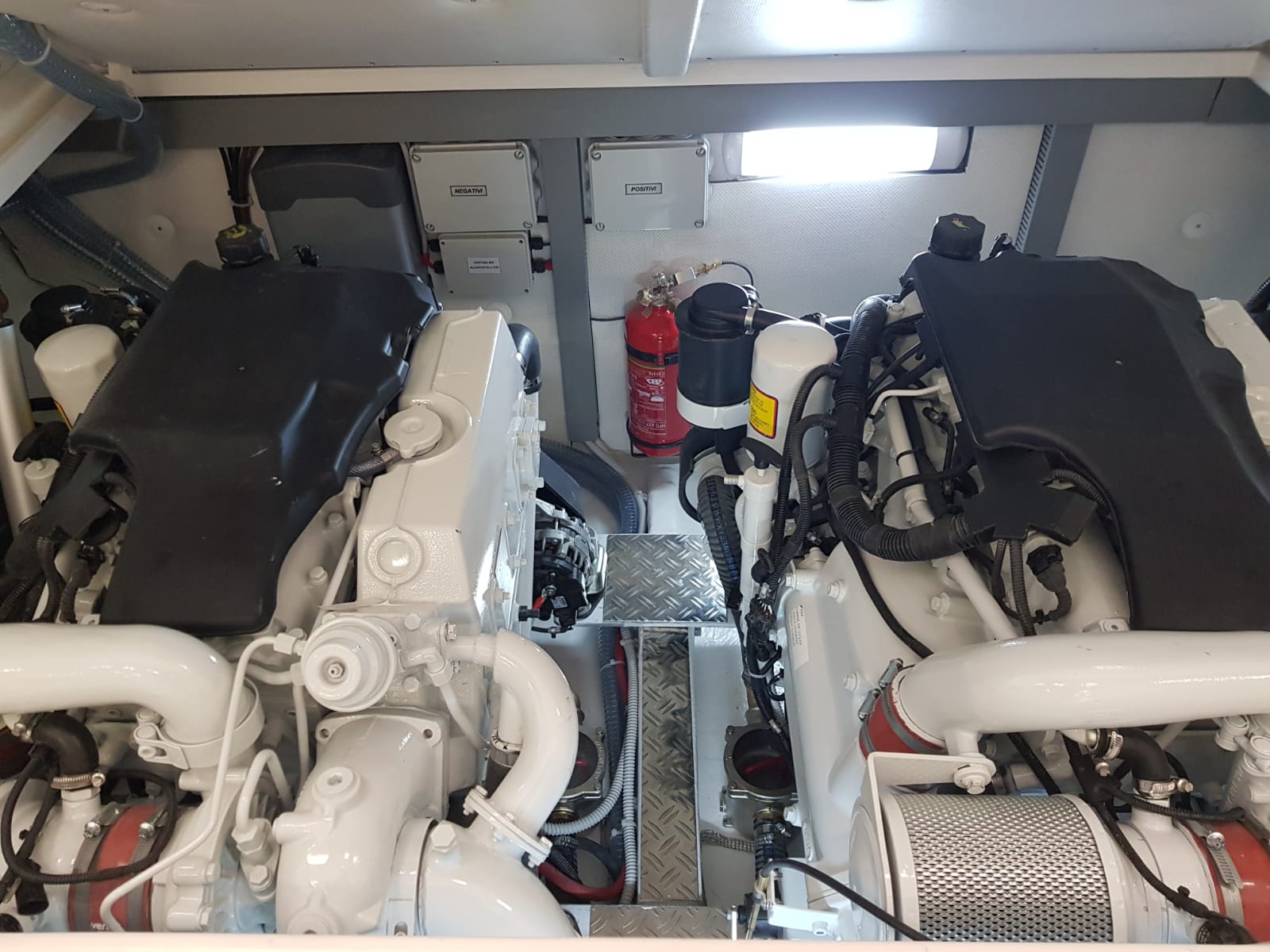

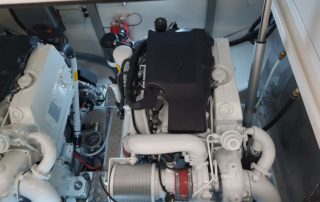

twin inboard turbo-diesel engines FPT – Fiat Powertrain Technologies (S30 ENTM23) 230 HP

twin inboard turbo-diesel engines LVM – VM MOTORI (ML 704 LX) 225 HP

twin inboard turbo-diesel engines YANMAR (4LV-230) 230 HP

OPTIONAL ACCESSORIES

Cockpit sliding curtain
Electrical windlass 700 W with anchor and 50 m zinc plated chain Ø 6
Battery charger 40 Ah with cable with dockside power, current taps 220 V and ground fault circuit interrupter in the cabin
n° 2 cockpit sockets 12 V
Hydraulic trim tabs system 12 V with stainless steel plates and digital trim tabs indicators
Cockpit sea water pump
Fresh water shower in the cockpit
Electrical hot water heater 220 V – capacity 15 l
Bow propeller
42 l refrigerator 12 V
AM/FM stereo with CD and 4 speakers
Bow sundeck
Trolling valve
Custom hull GELCOAT colour (when different from white)
