330 CC – Data sheet
330 CC – SPECS
Overall length: 10,00 m
Hull length: 9,99 m
Maximum beam: 3,60 m
Dry weight (approx., depends on engines & options): 5.100 kg

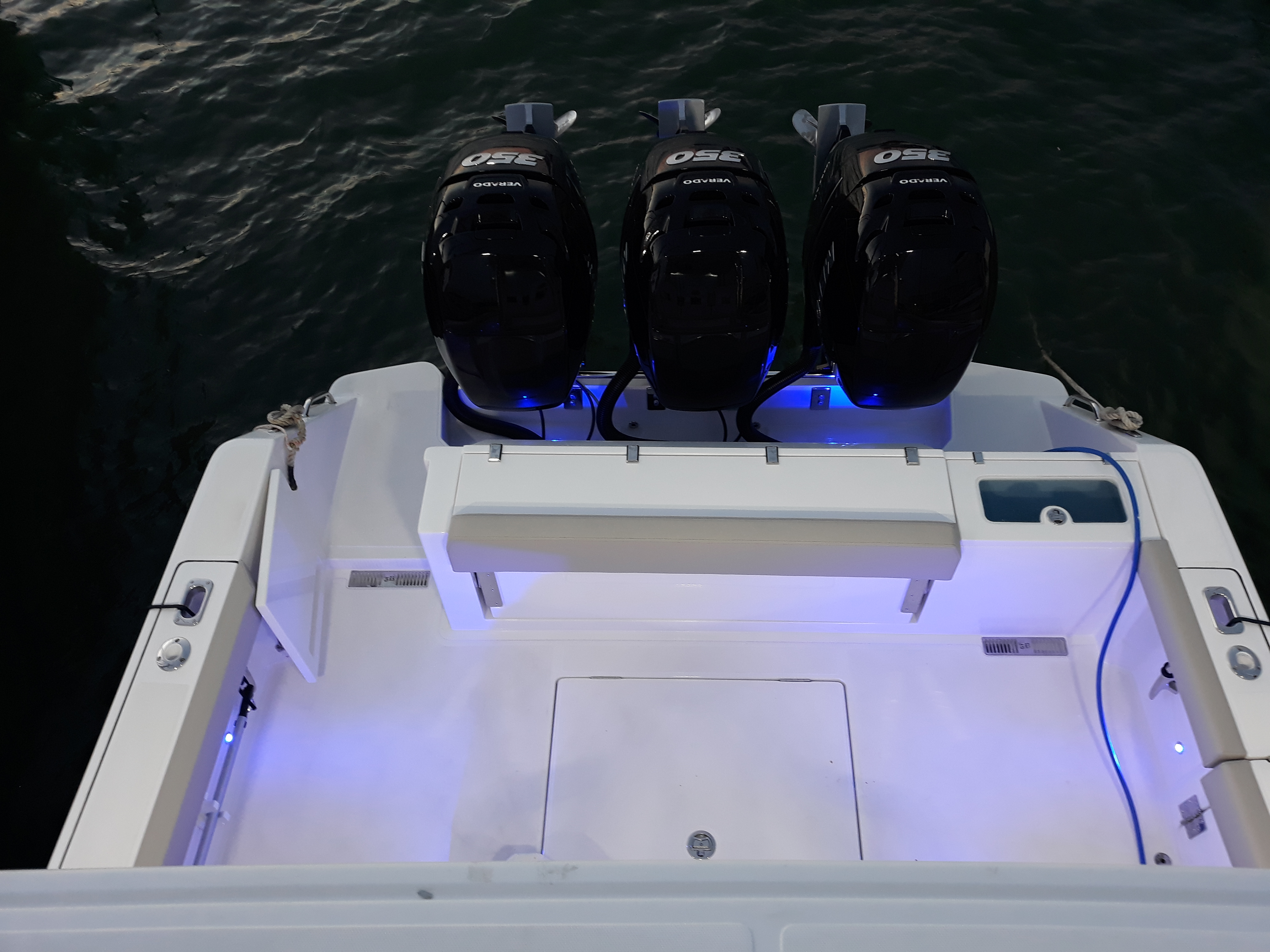

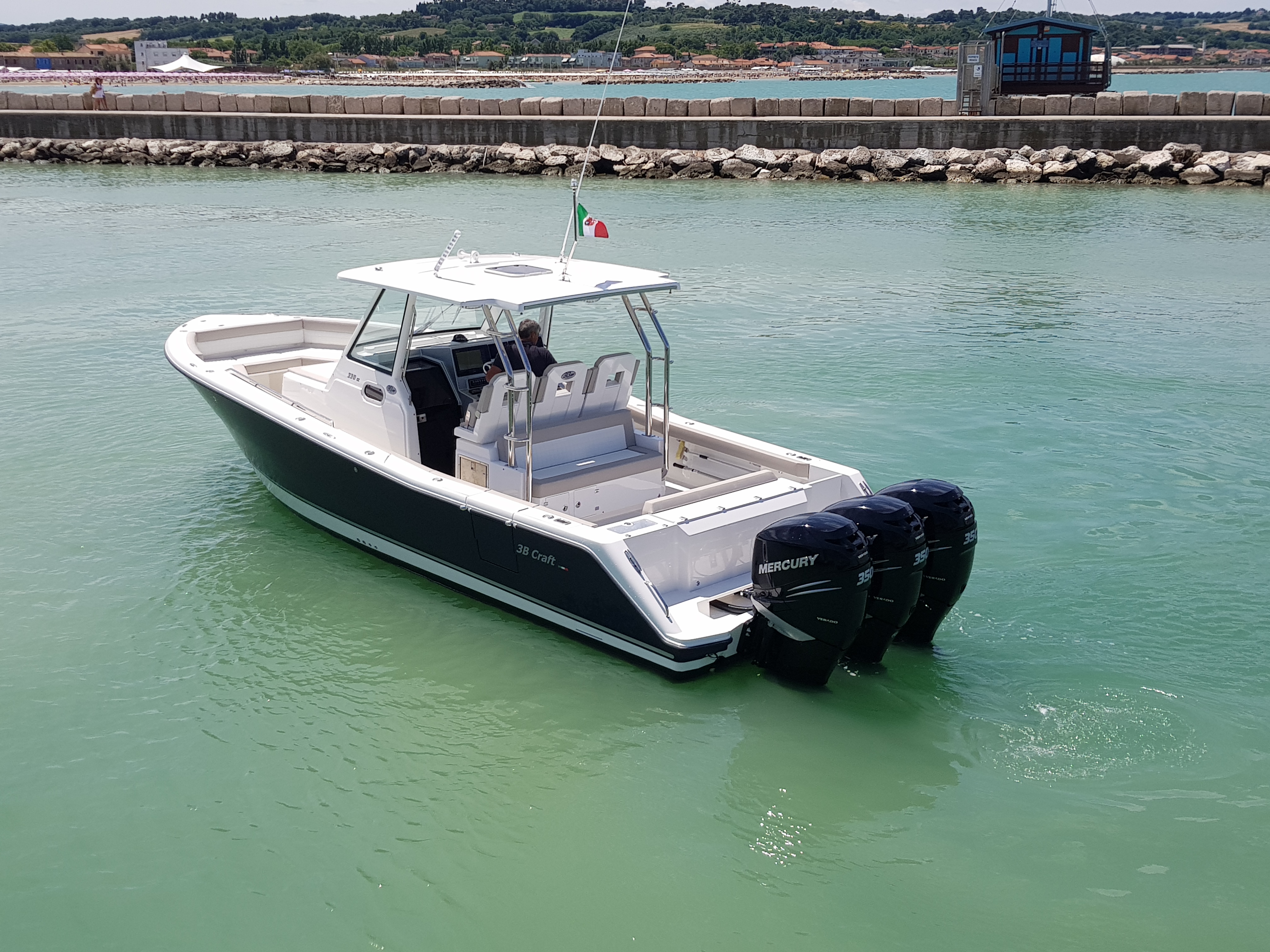

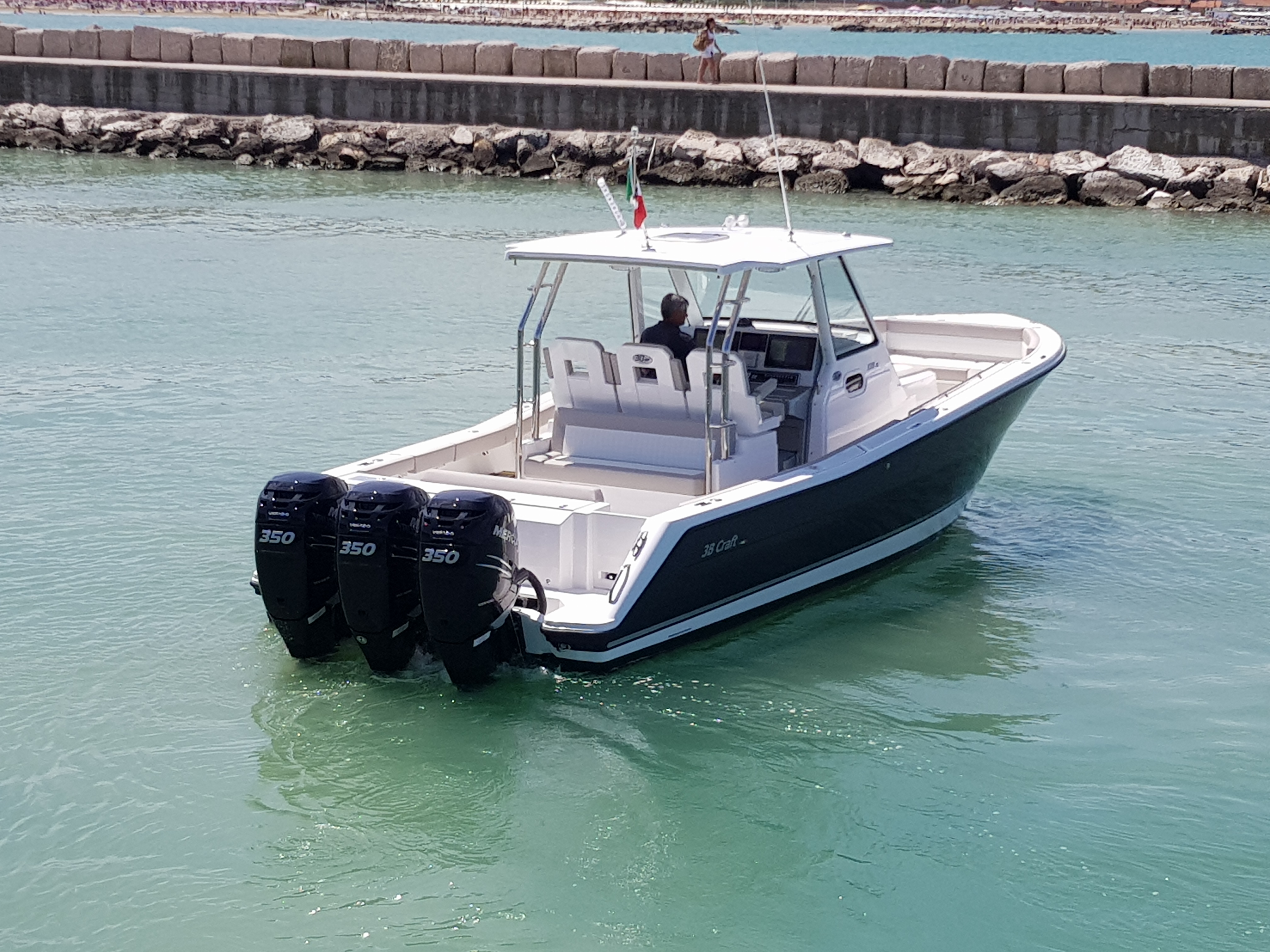

Maximum horsepower: 2 x 450 HP – 3 x 350 HP
Fuel capacity: 930 l
Fresh water capacity: 150 l
Sleeping capacity: 2
CE navigation category: B – Maximum persons capacity: 8
CE navigation category: C – Maximum persons capacity: 12
STANDARD MECHANICAL AND ELECTRICAL FITTING
General electrical system
Electrical system 12 V

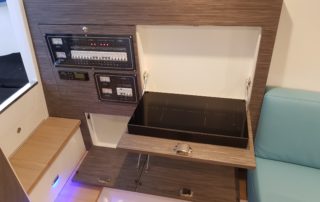

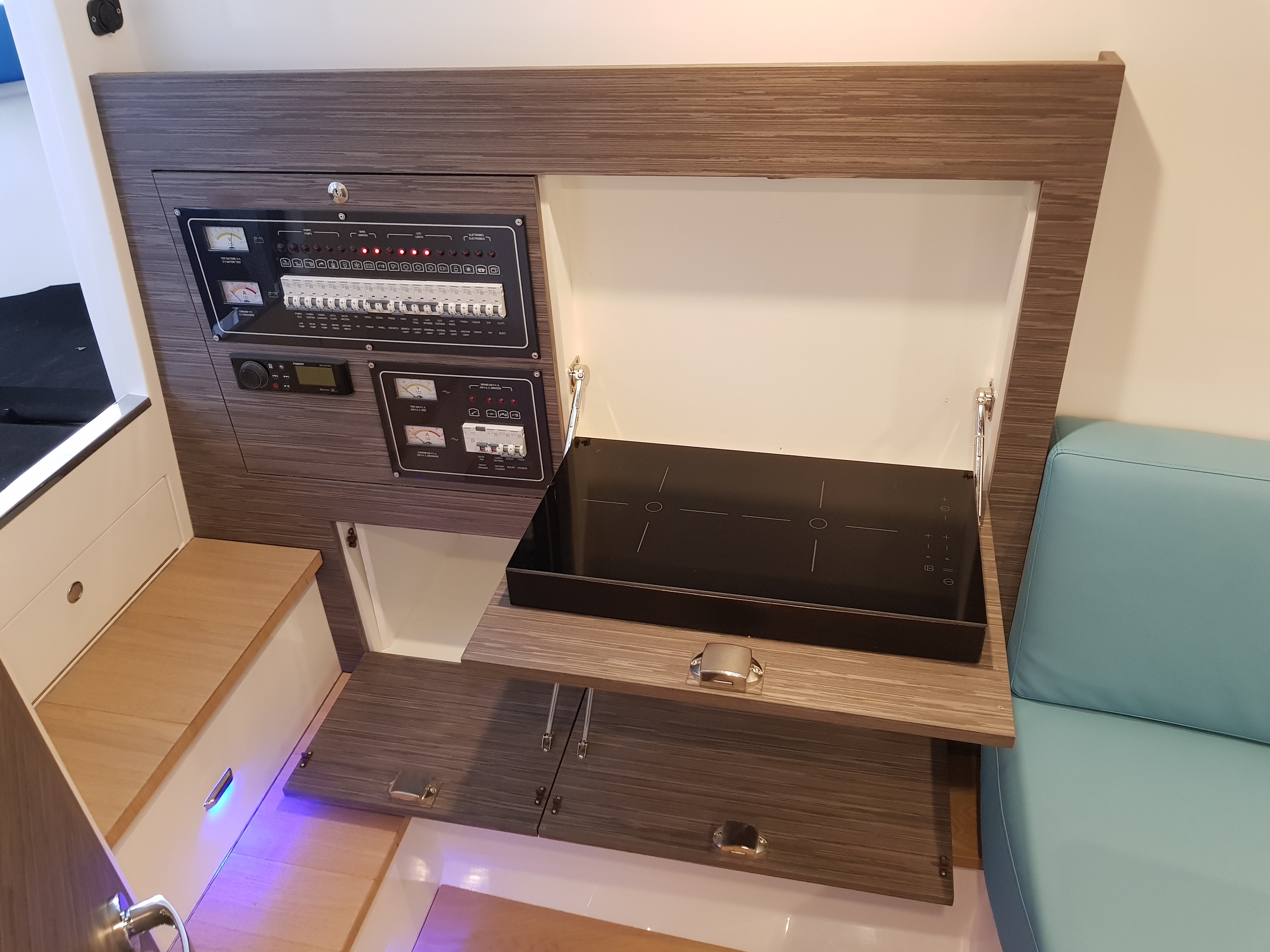

General electrical panel inside

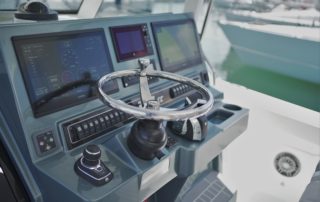

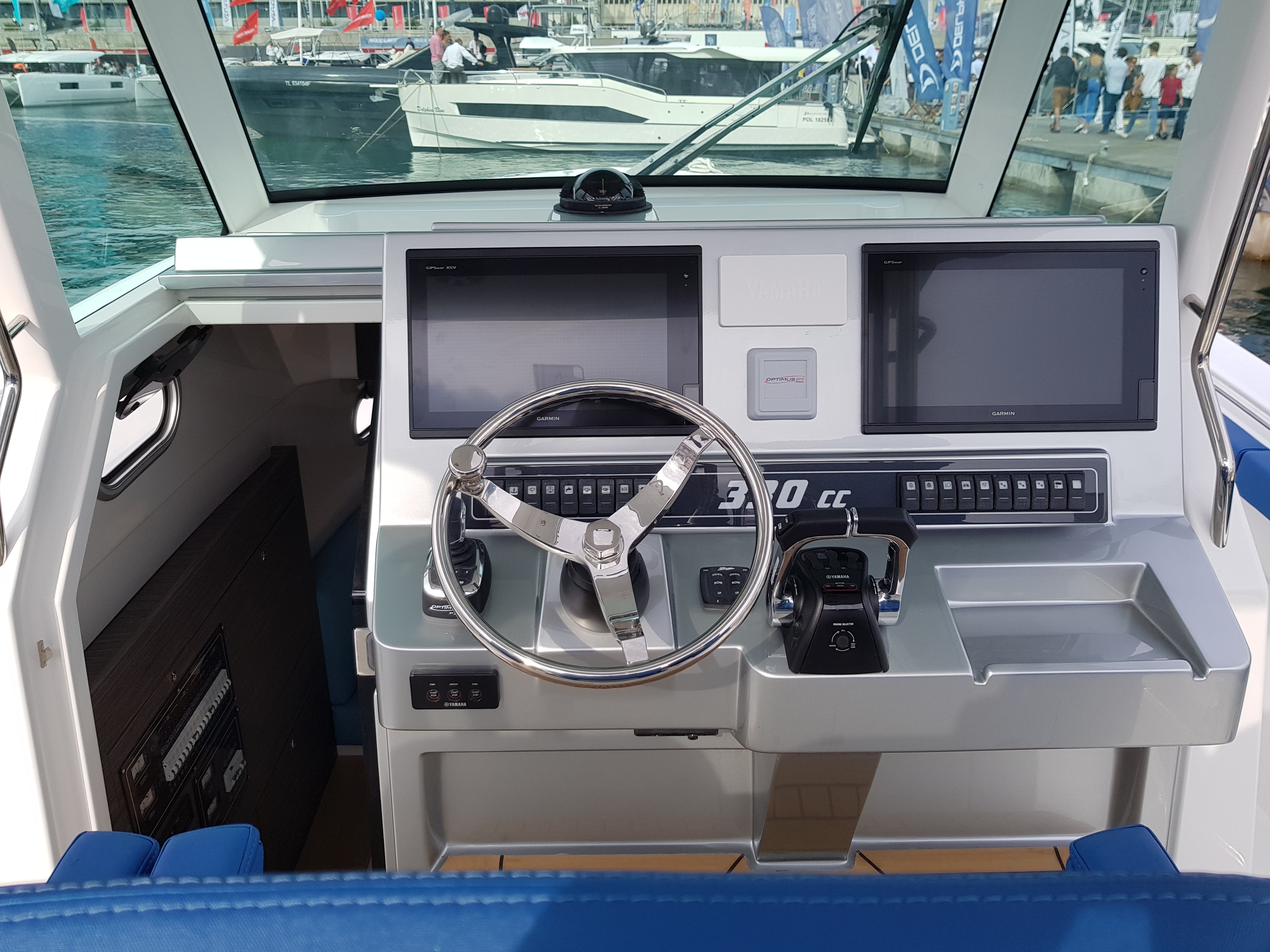

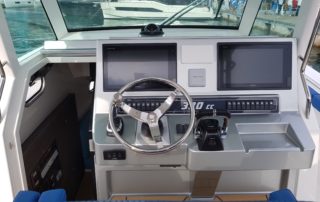

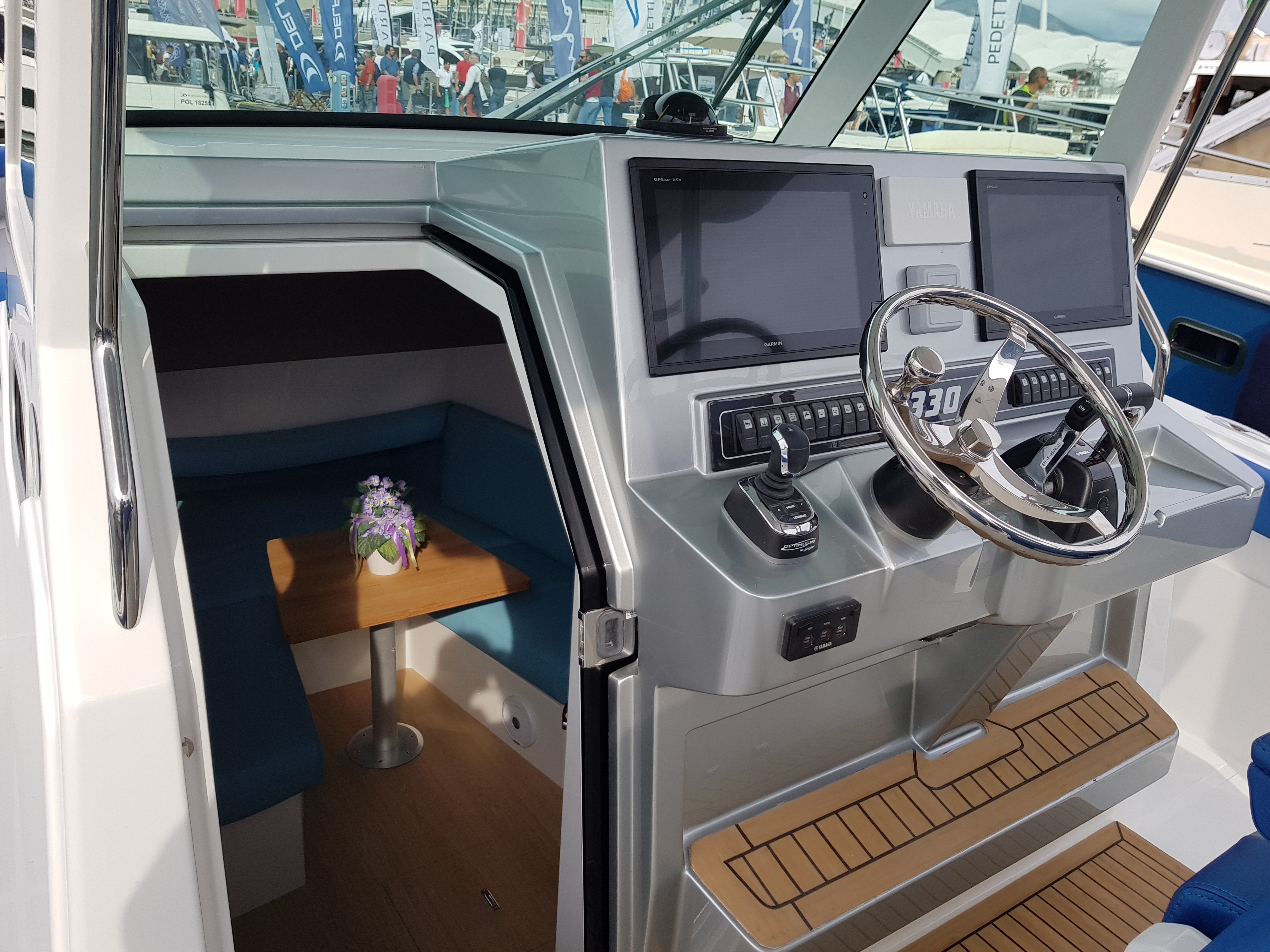

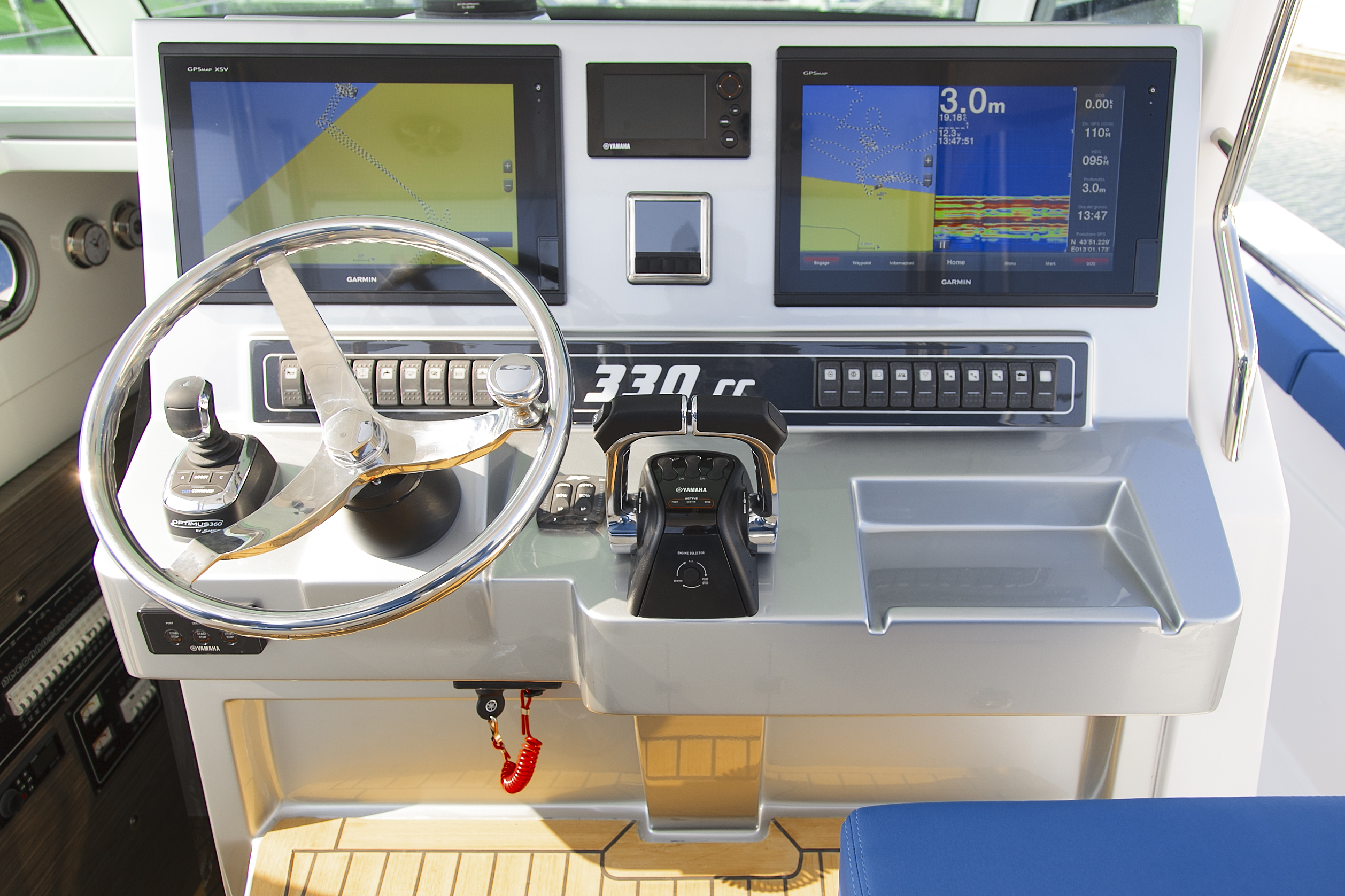

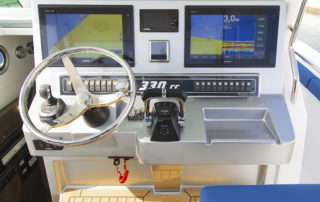

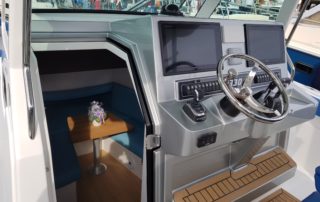

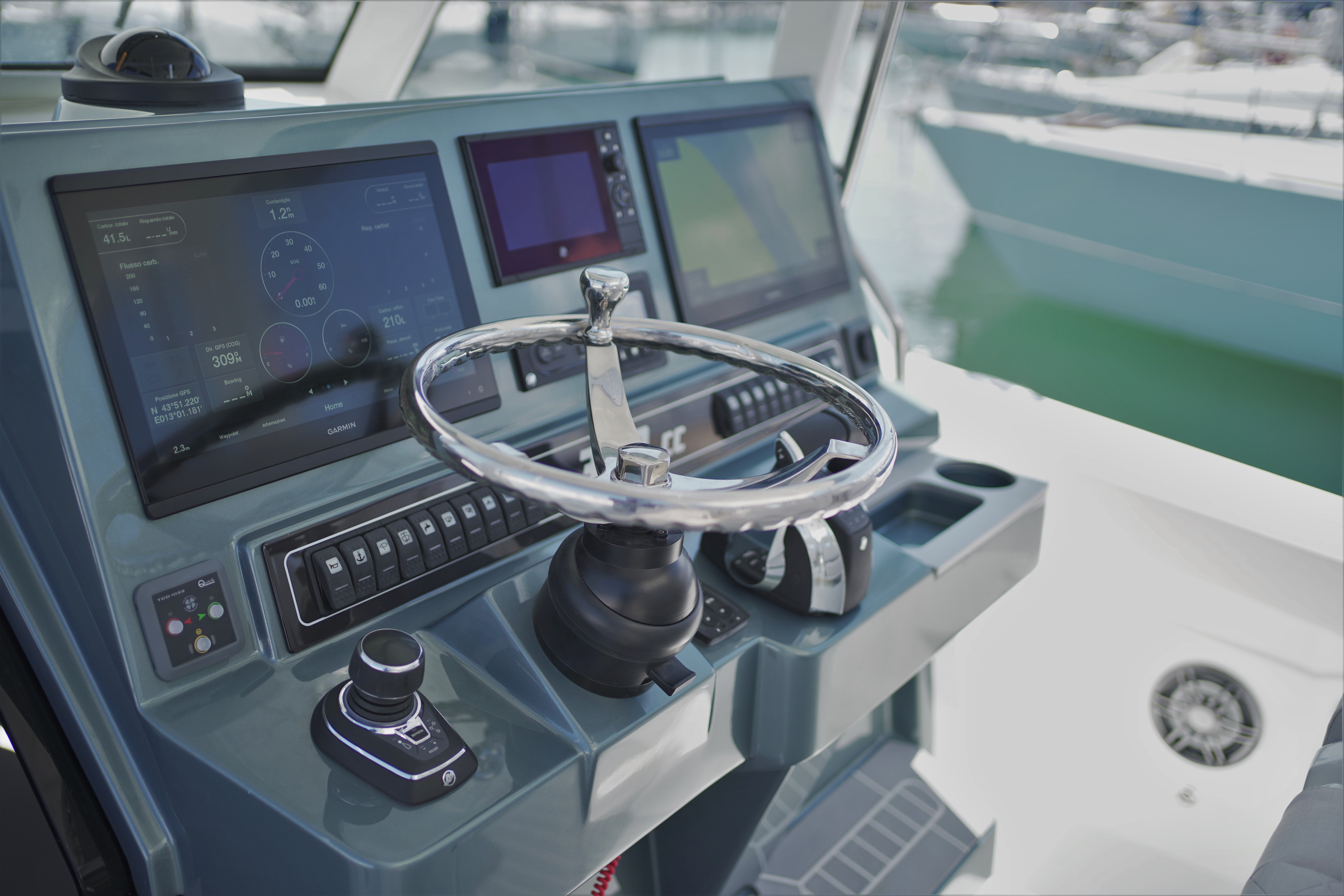

Helm panel with switches
Compass 4”
Battery charger 60 Ah
2 x 140 Ah batteries for engines
1 x 190 Ah battery for services
n° 3 battery switches
Battery parallel
Cable with shore power
12 V sockets
220 V sockets
Built-in lights in all the rooms
Fuel system
Stainless steel fuel tank – capacity 930 l
Fuel level indicator
n° 1 fuel filler cup
Fuel filters
Fresh water system
Fresh water tank – capacity 150 l
Water level indicator
n° 1 fresh water filler cup
Fresh water pressure system pump
Bilge pump system
n° 2 automatic bilge pumps
n° 2 manual bilge pumps
Trim tabs system
Hydraulic trim tabs system 12 V with stainless steel plates
Digital trim tabs indicators
Steering system
Pump for hydraulic steering
Ships’ wheel
Windlass system
Electrical windlass 1000 W
Windlass double control
Bow plate
Anchor 10 kg
Joint for anchor
50 m zinc plated chain Ø 6
Chain peak with drain
Safety
n° 2 manual dry fire extinguishers
Remote-controlled fuel tank closing system with electric valves
Complete system of zincs for galvanic current
STANDARD OUTDOOR FITTING
Hull
Gel coat
Hand-laid fiberglass with vinyl ester resin skin coats
Termanto cored topsides
Solid fiberglass bottom
Boot line
Antifouling bottom paint
PVC rubbing strake
Deck
Gel coat
Hand-laid fiberglass
Termanto core
Structures
Ply-Foam stringer system
Plywood bulkheads
Navigational lights
Navigational lights
Stainless steel support for 360° light
Radar reflector
Portholes
n° 4 aluminium portholes with plexiglas
Cockpit and deck fitting
Stainless steel handrails on side stringers
Glued tempered glasses
Windshield wiper with washer

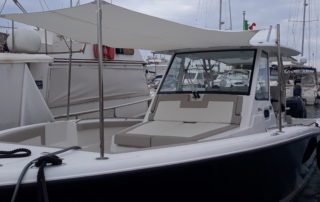

Fiberglass Hard Top on a stainless steel structure
n° 1 aluminium hatchway with plexiglas in the hard top
Lights fore and aft
n° 8 stainless steel folding mooring cleats
n° 2 stainless steel fixed mooring cleats
n° 2 stainless steel stern mooring hawsers
n° 9 stainless steel built-in rod holders
Acoustic warning signal

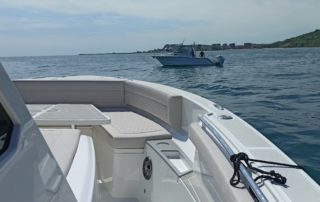

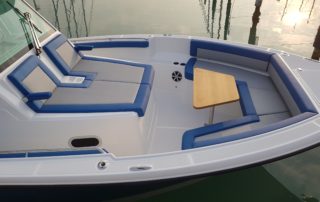

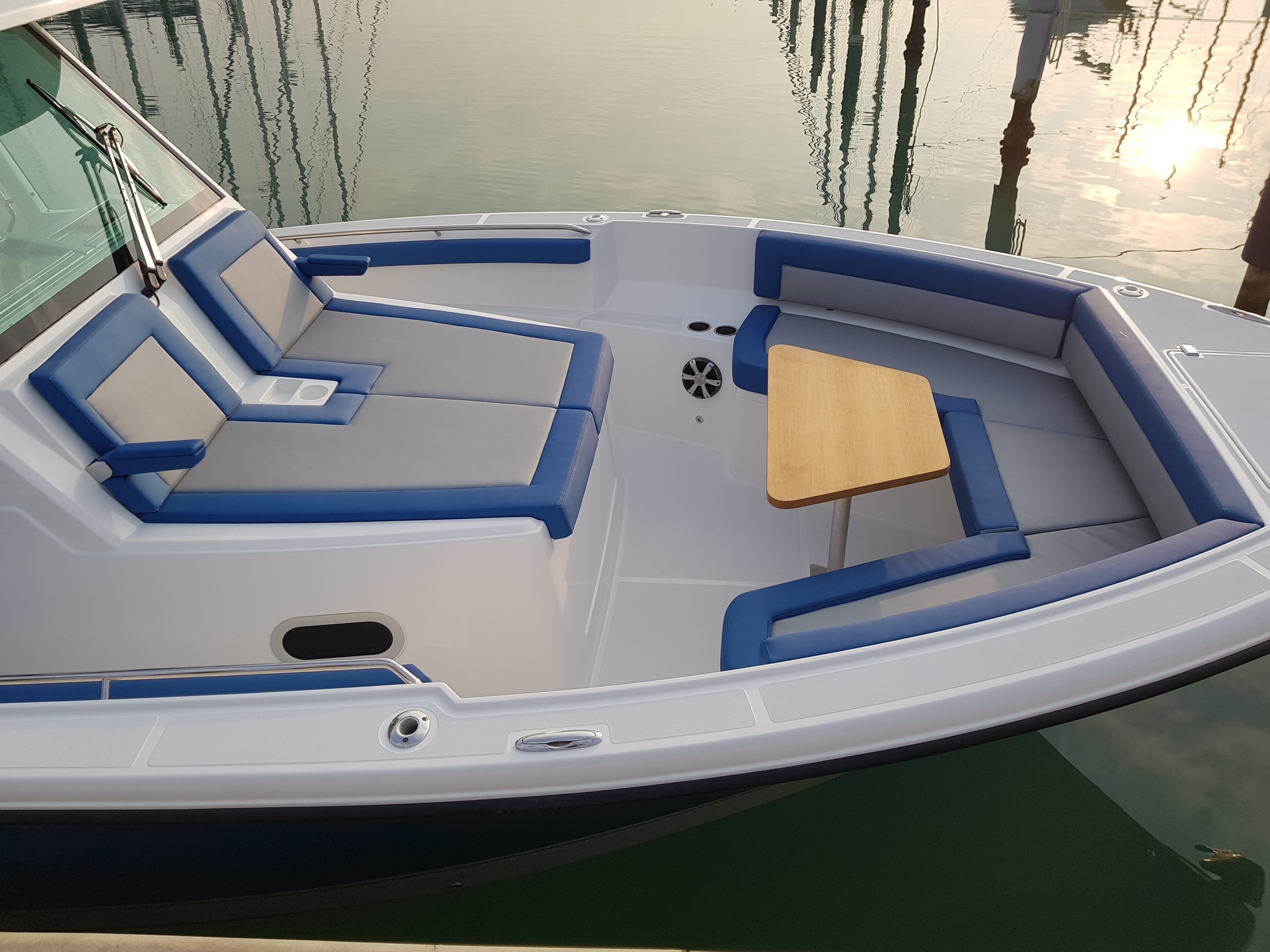

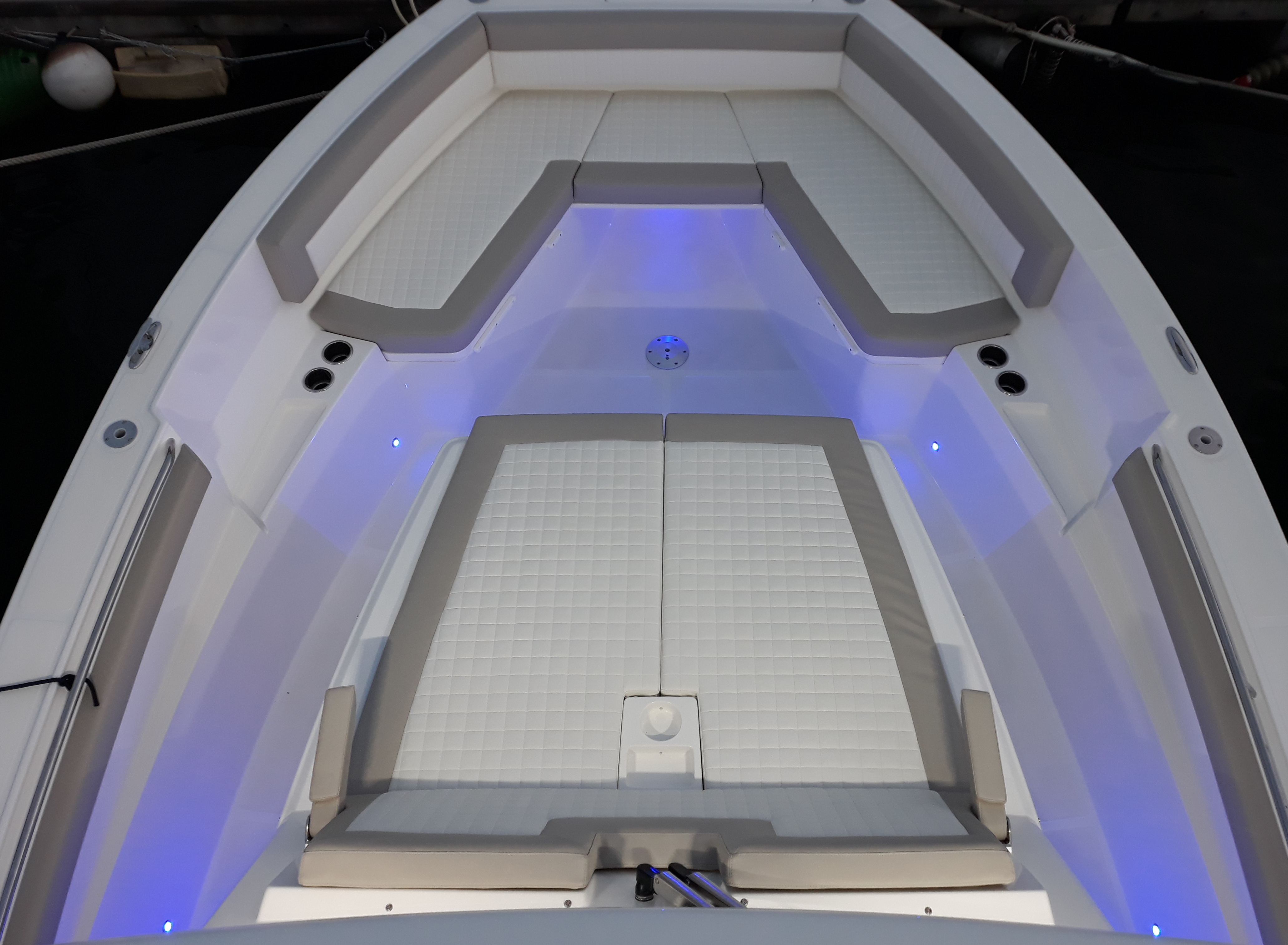

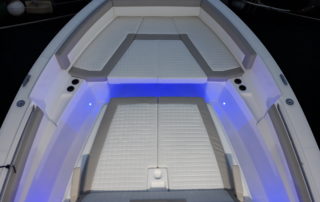

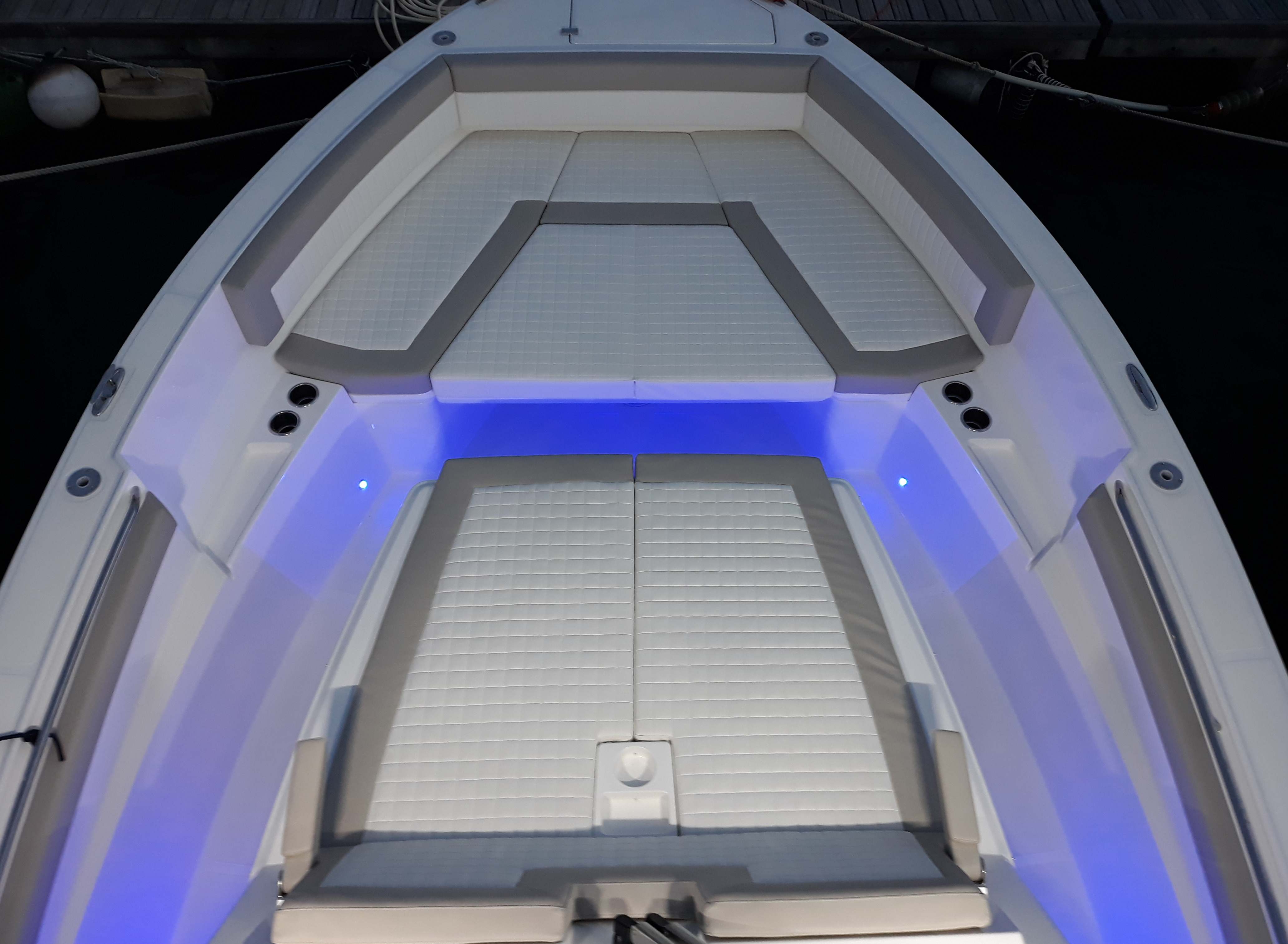

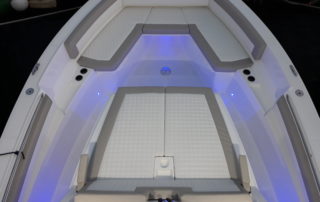

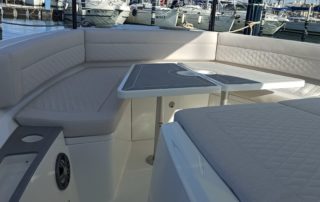

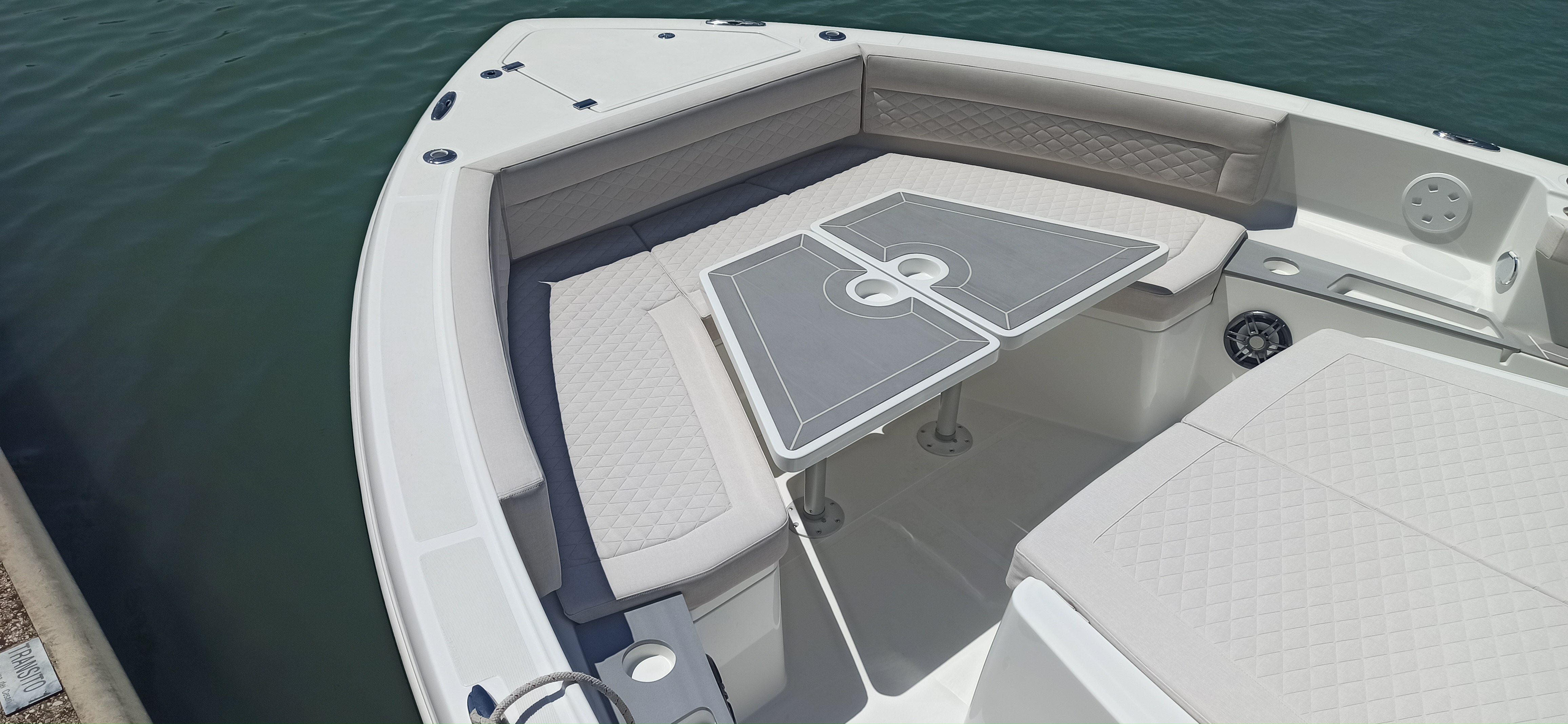

Bow bench with cushion

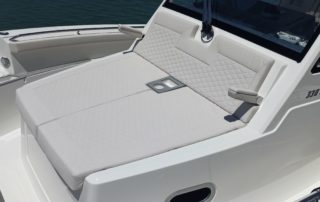

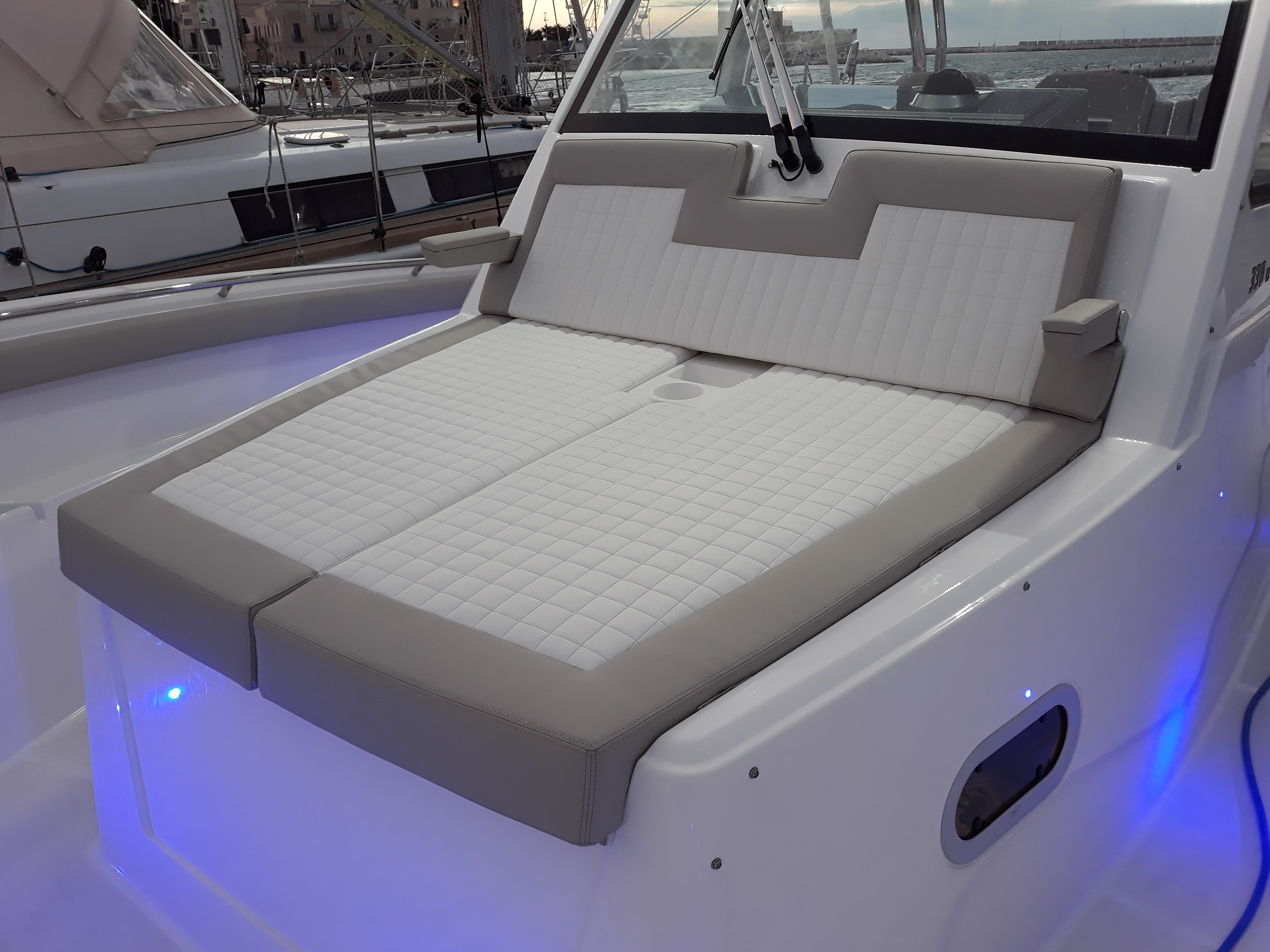

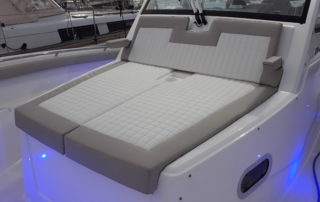

Bow chaise longue with cushion

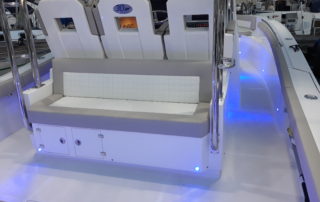

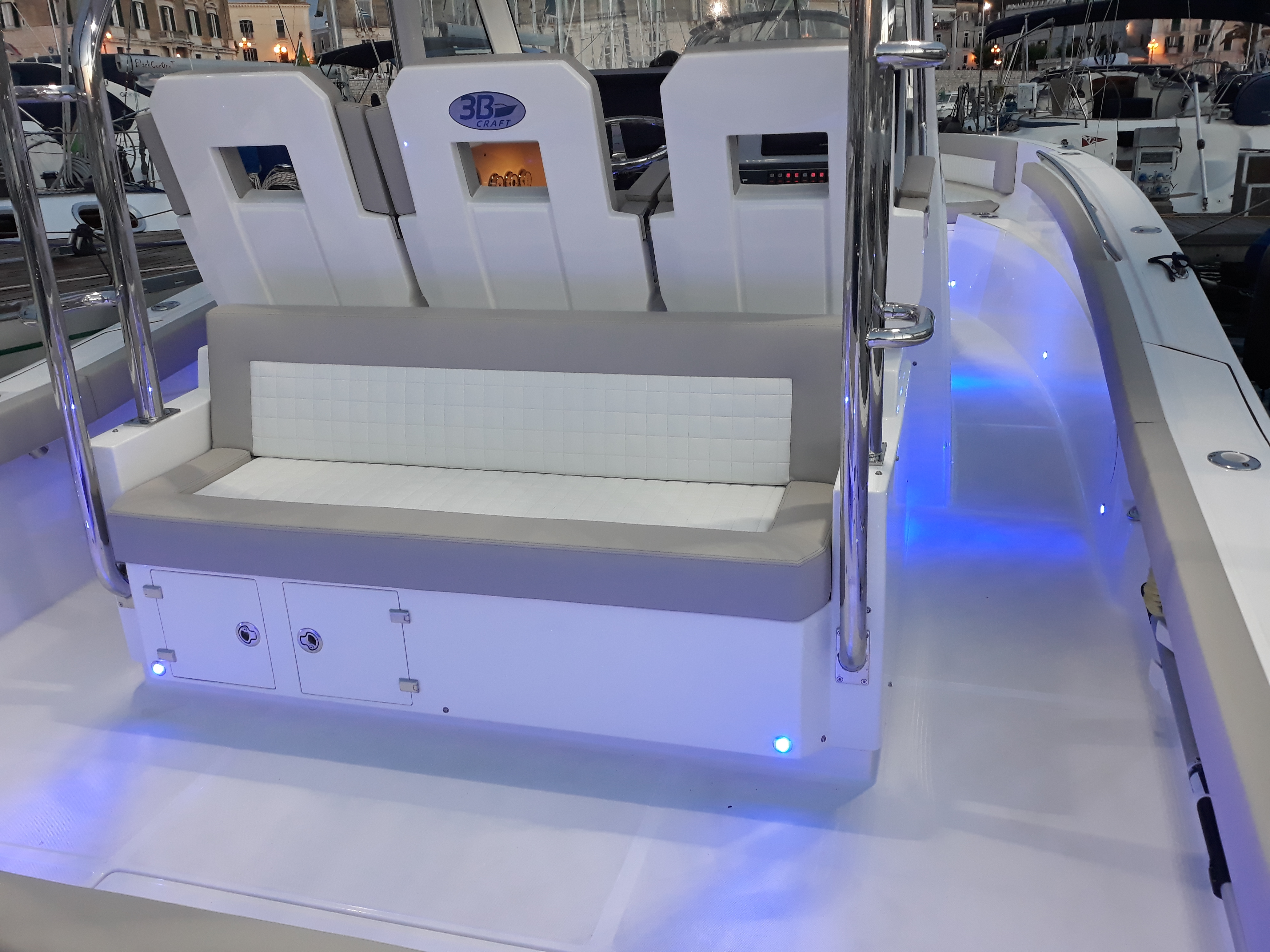

Cockpit unit with:

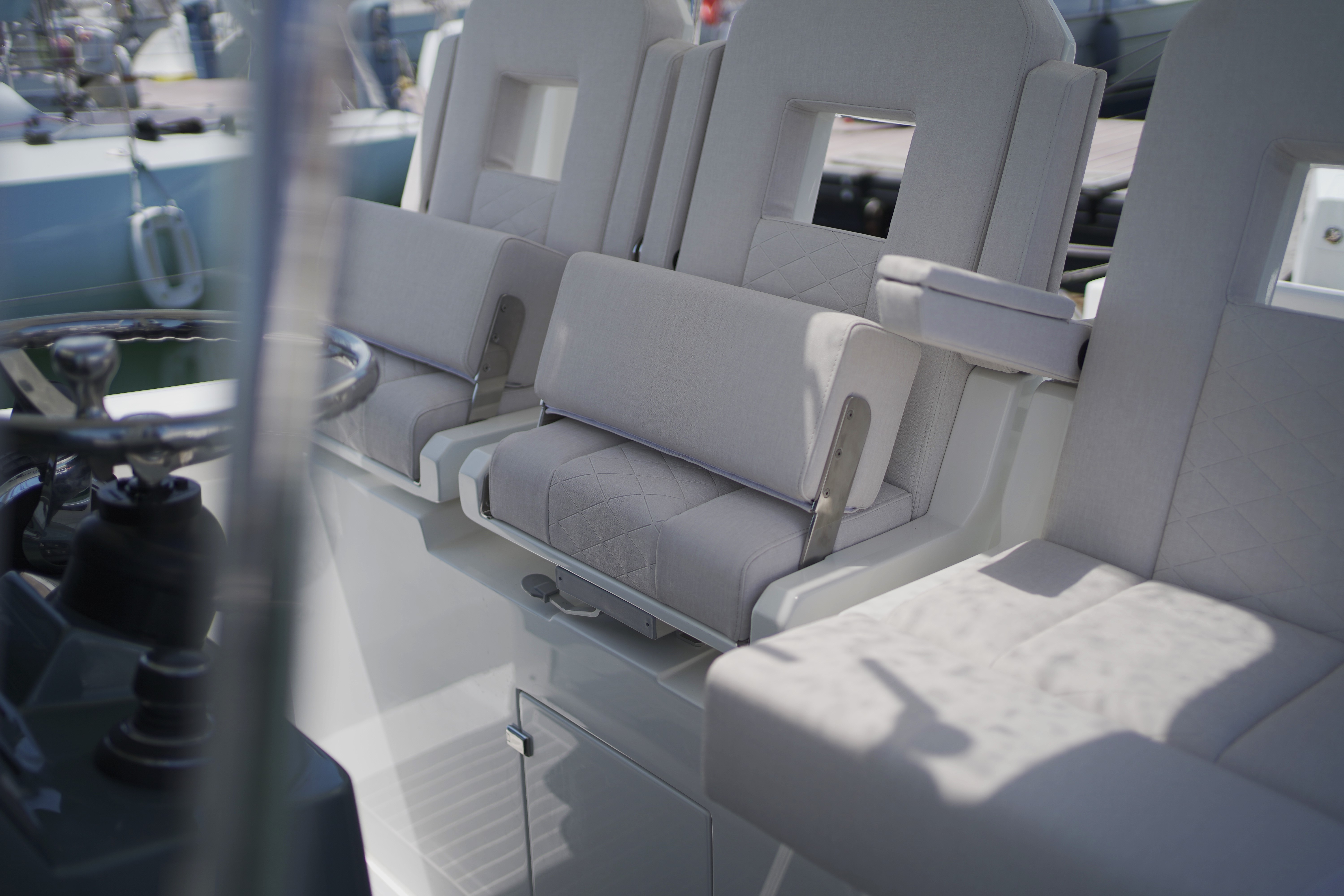

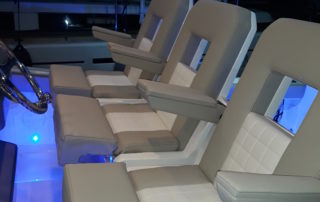

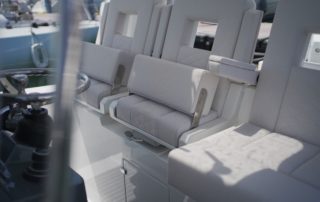

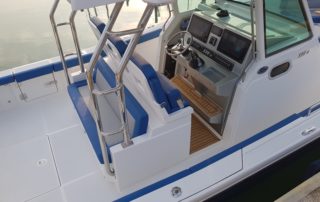

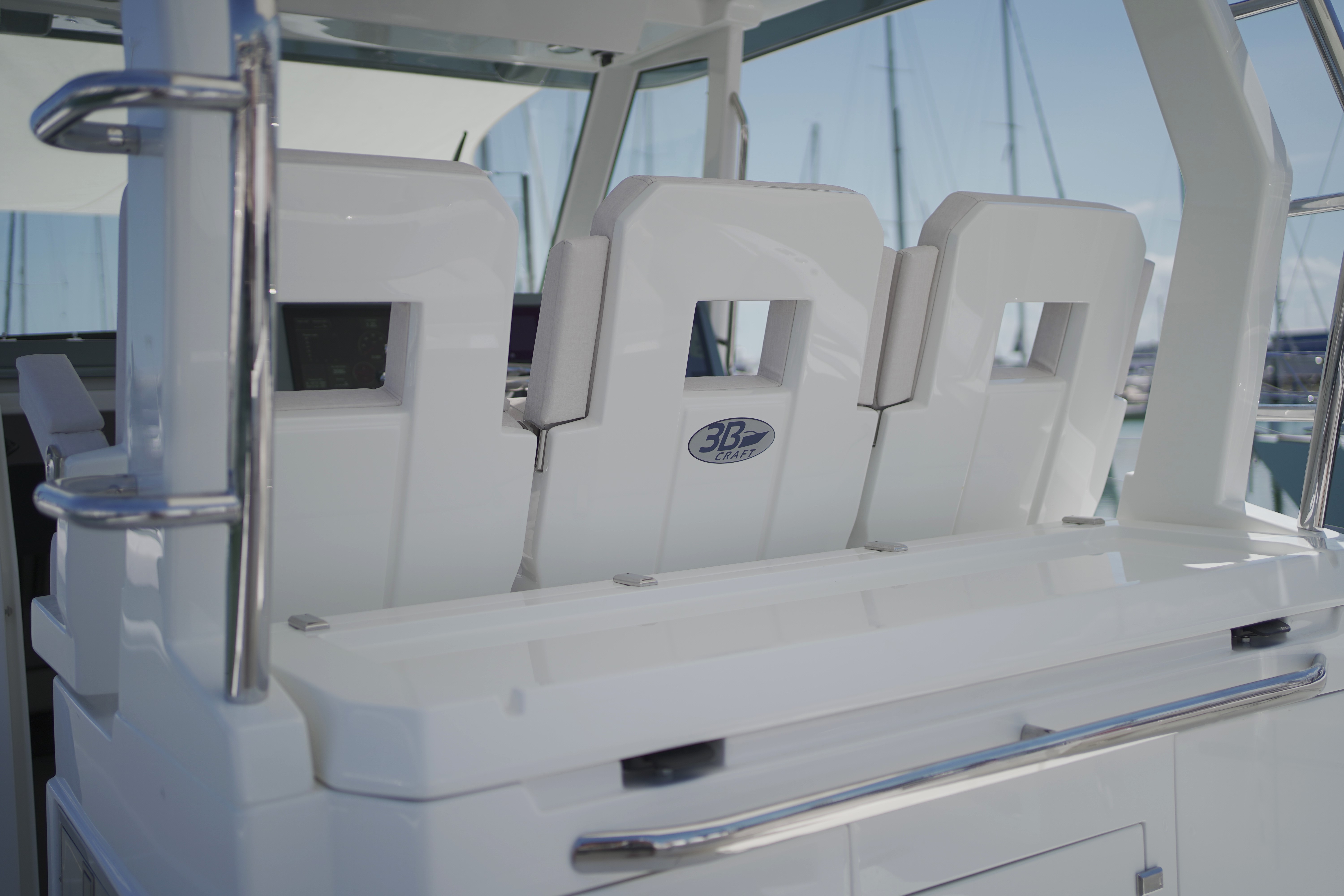

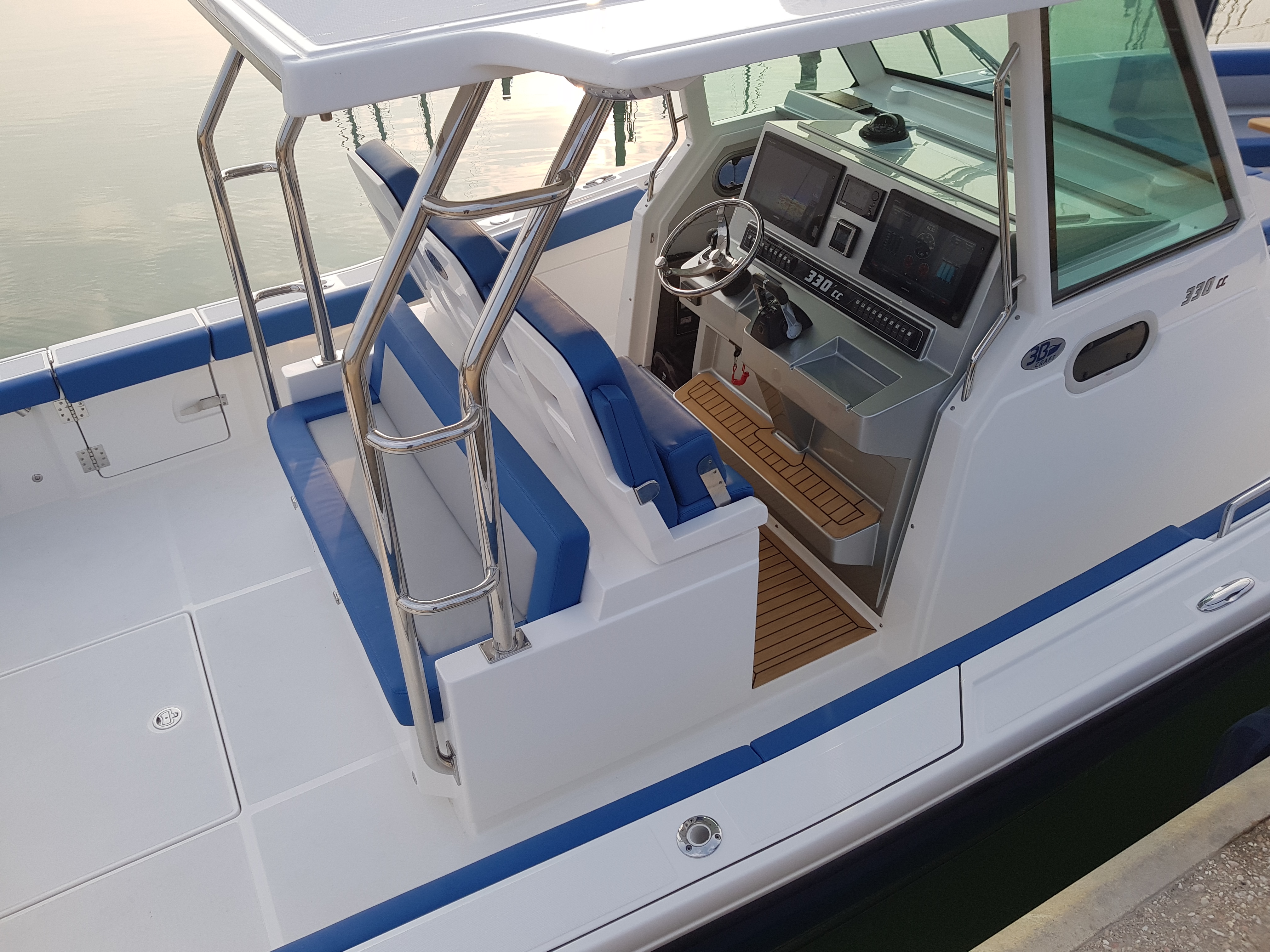

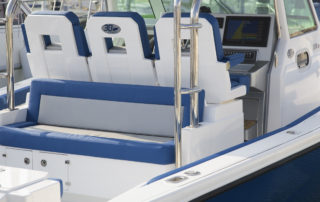

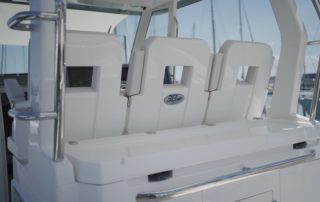

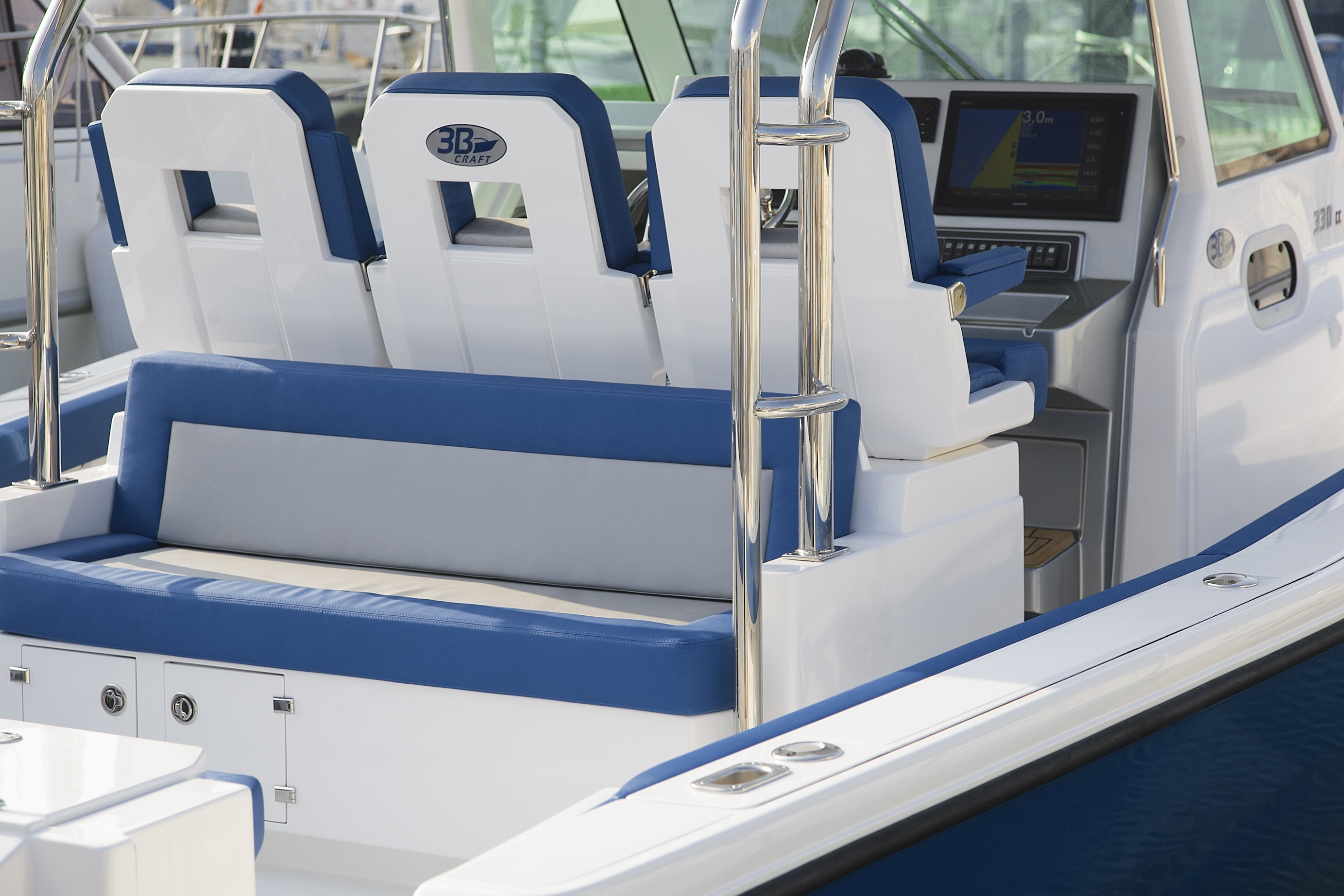

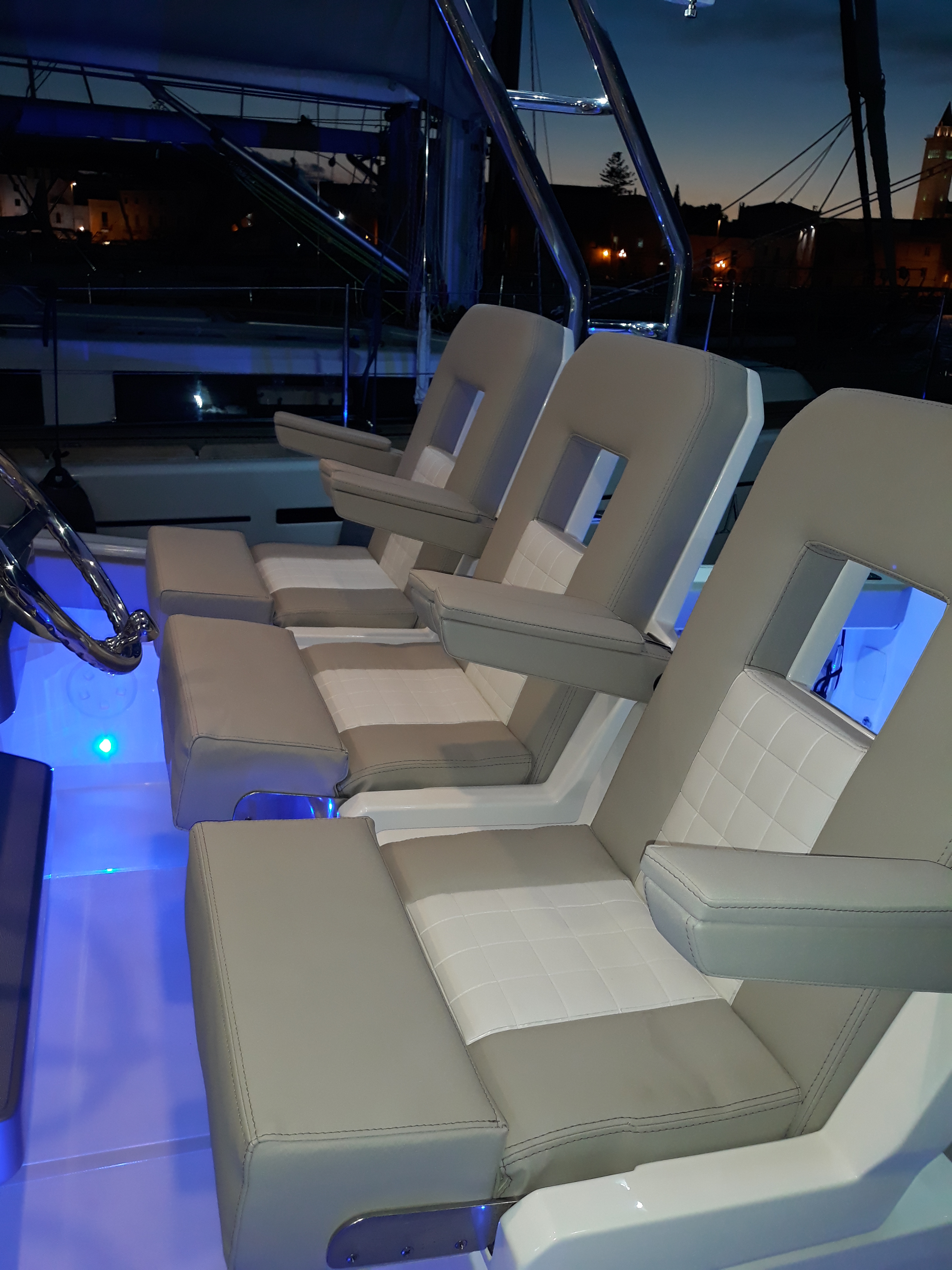

- n° 3 pilot and co-pilots chairs
- stern seat

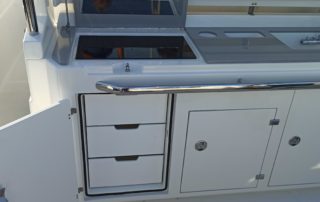

- bait and tackle storage drawers
Footrest under the driver’s seats
Courtesy lights
Cockpit paddings
Fresh water shower in the cockpit

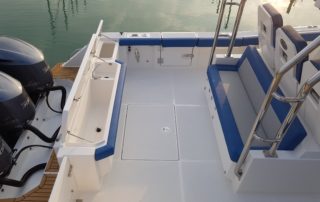

Transom door with tuna gate
Bulwarks door

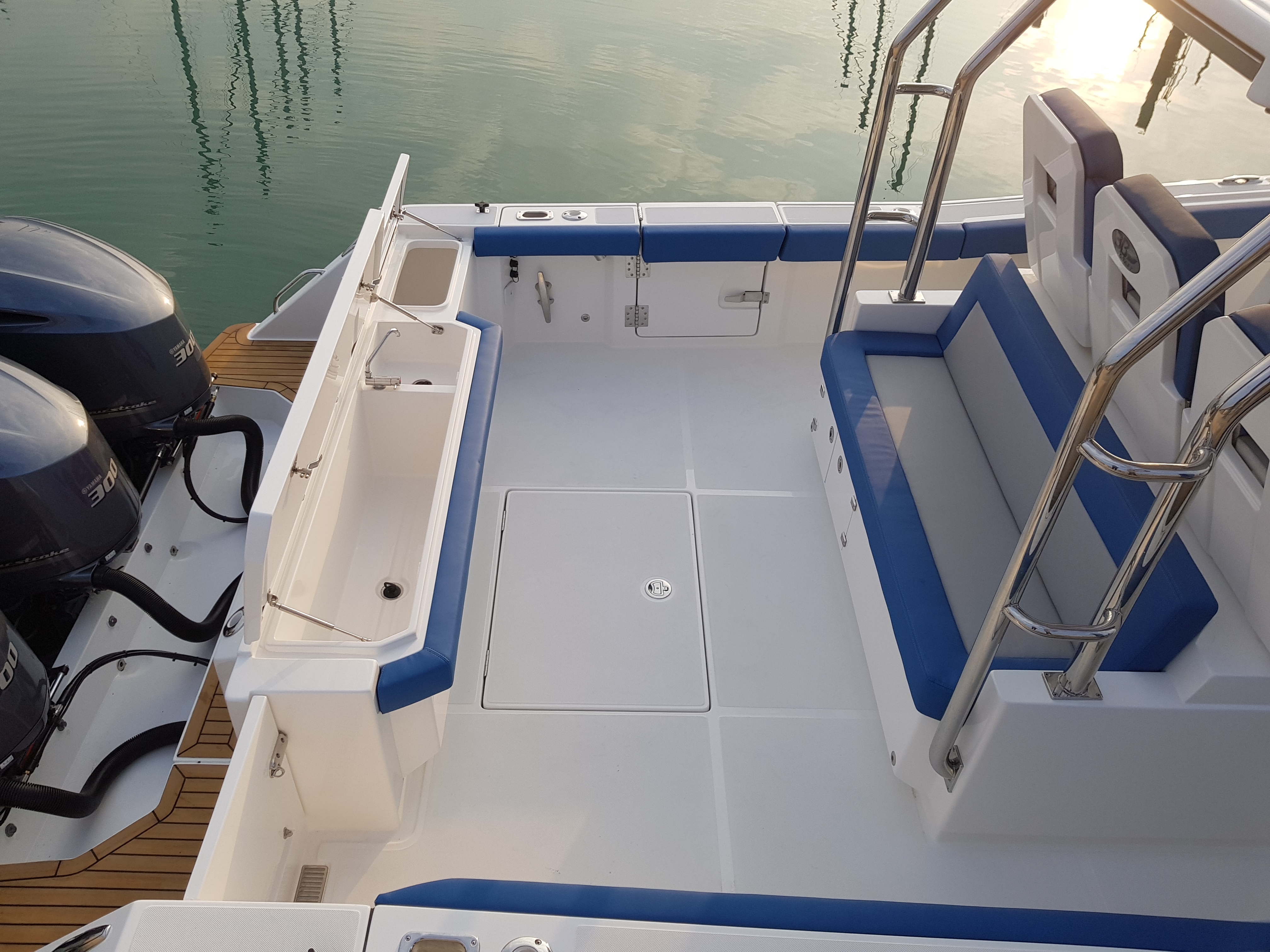

Transom fish box with pump in the stern bulwarks

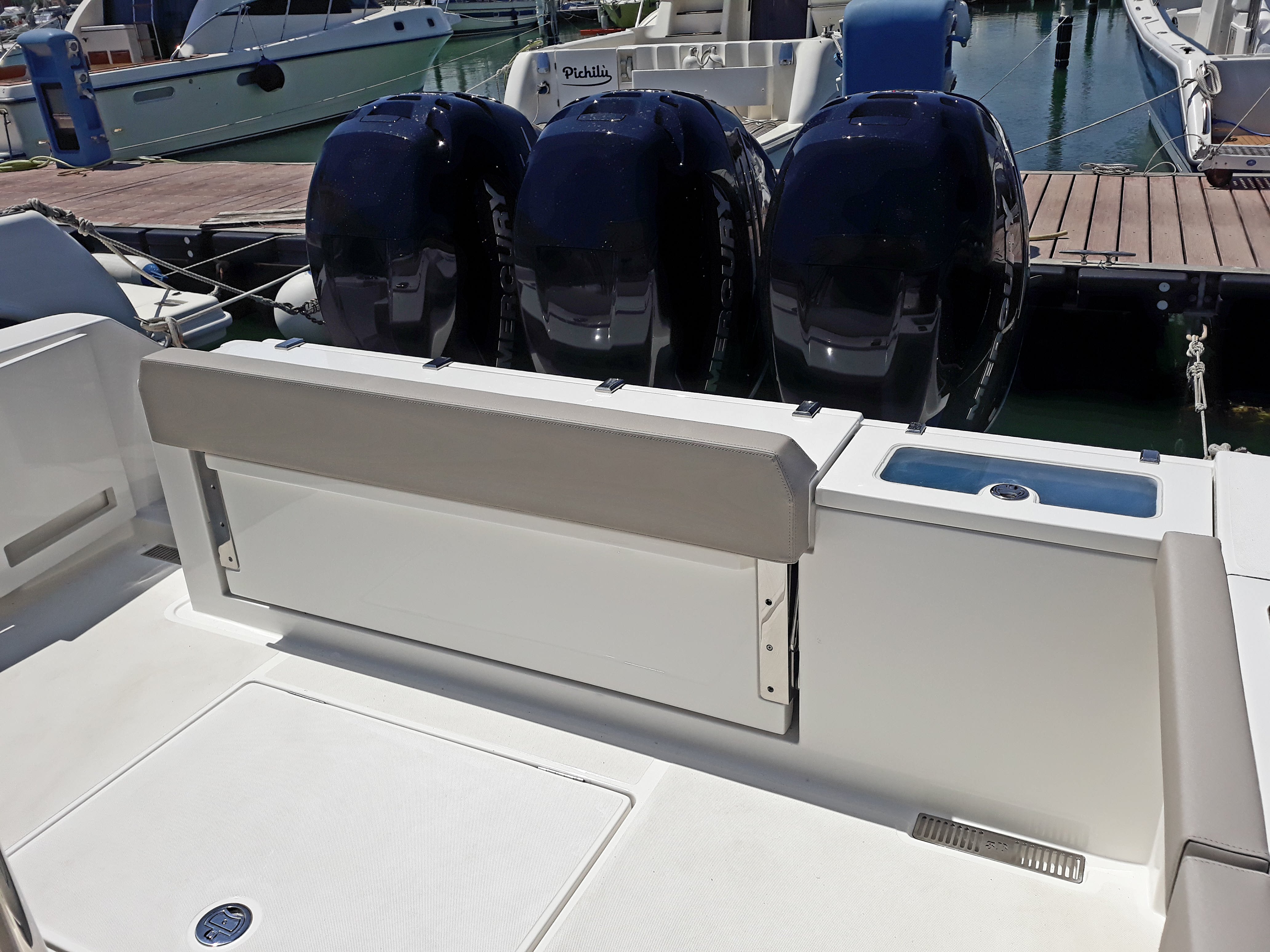

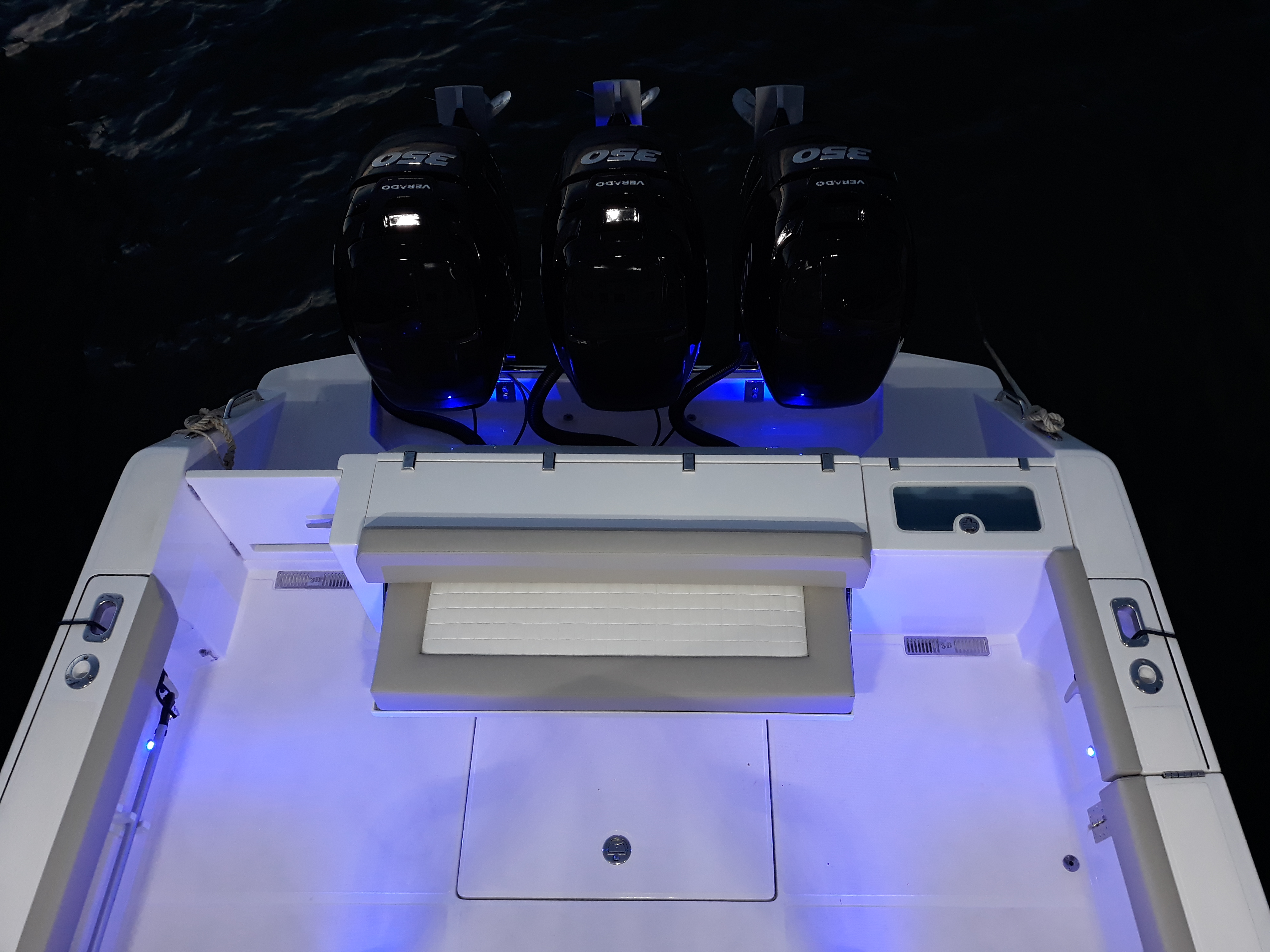

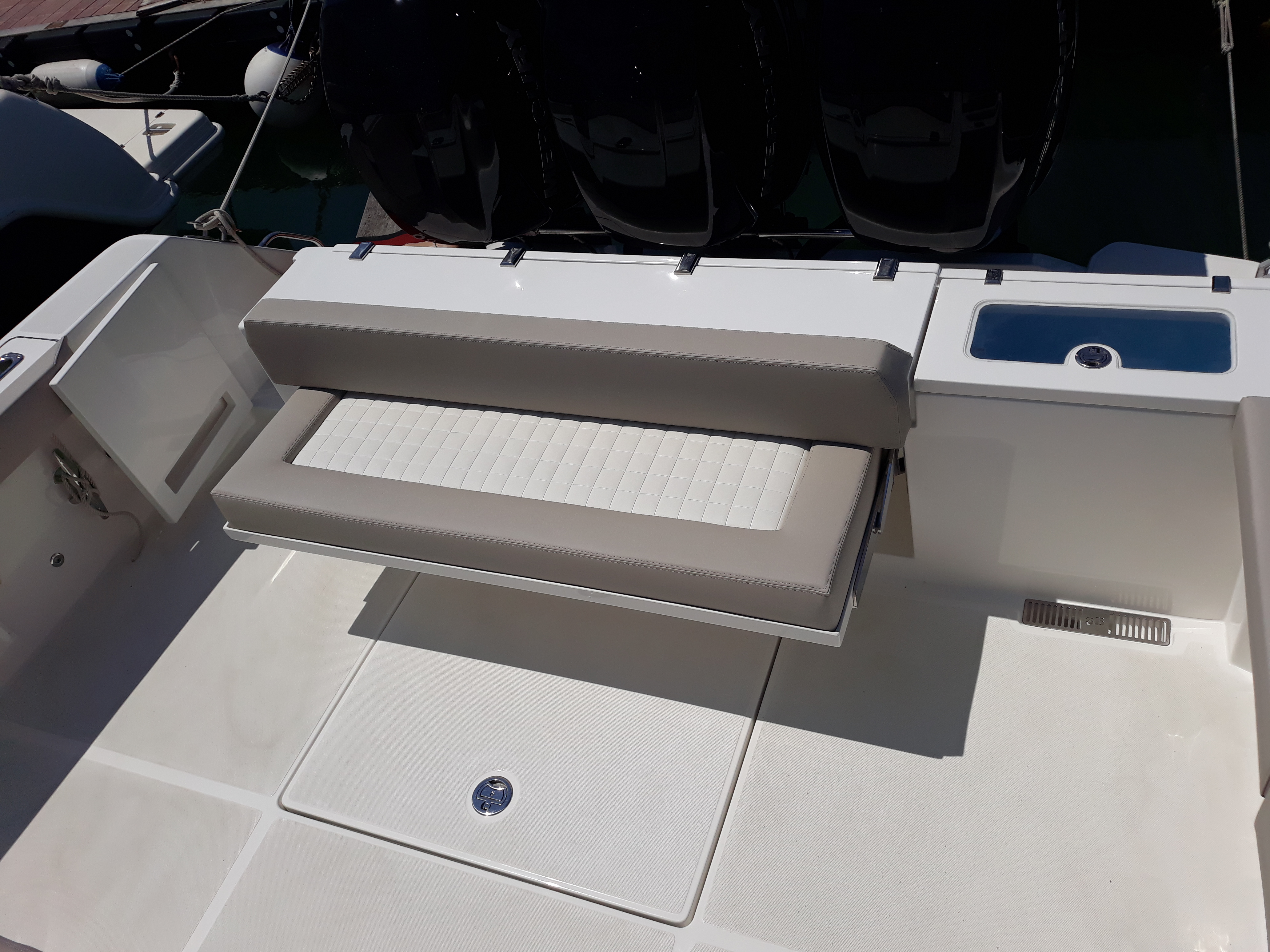

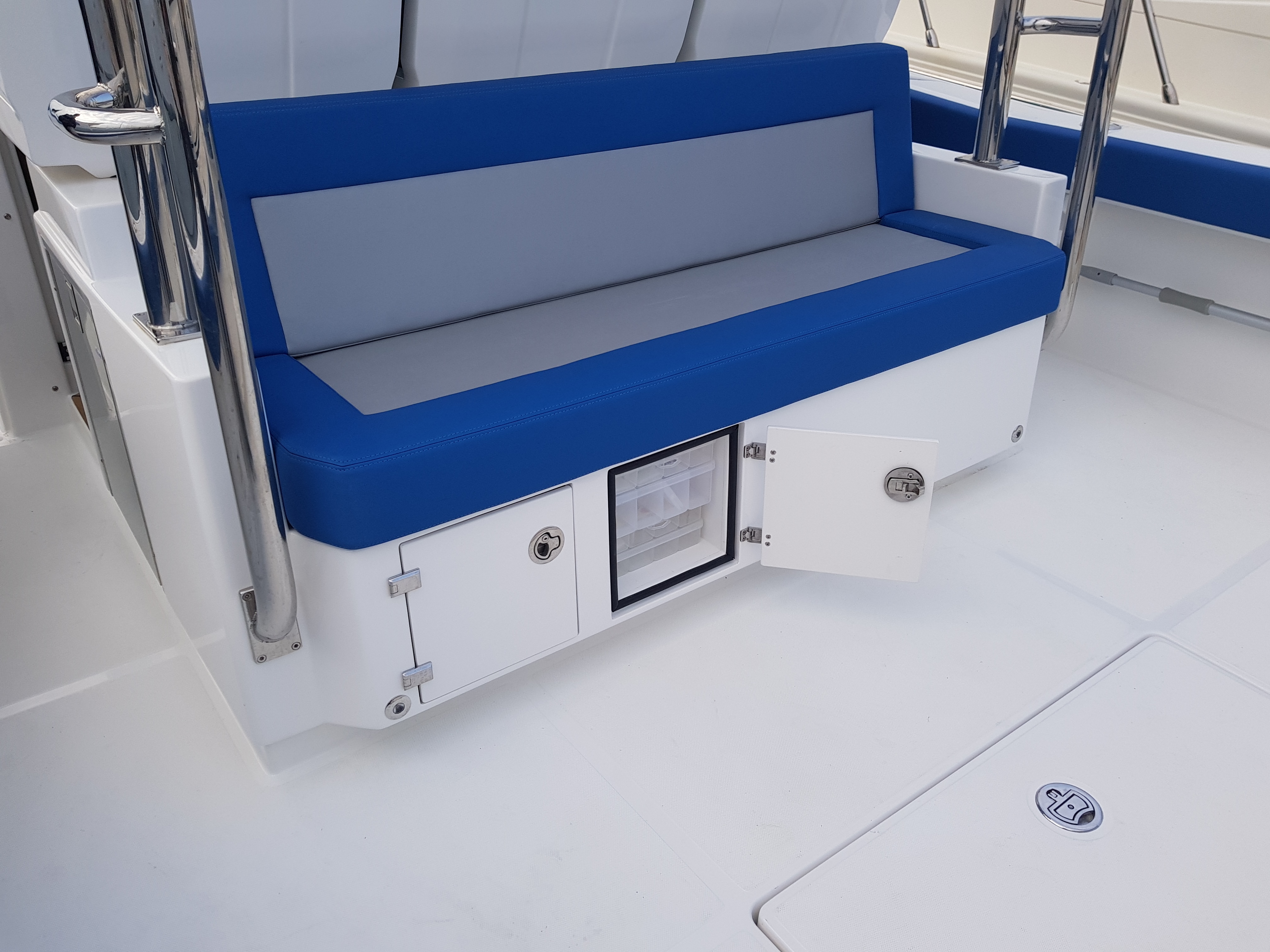

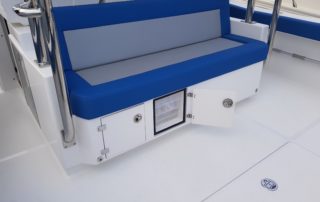

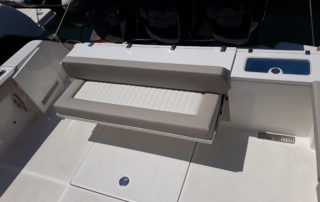

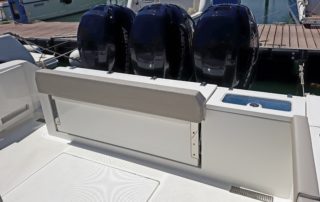

Foldaway stern sofa with cushions

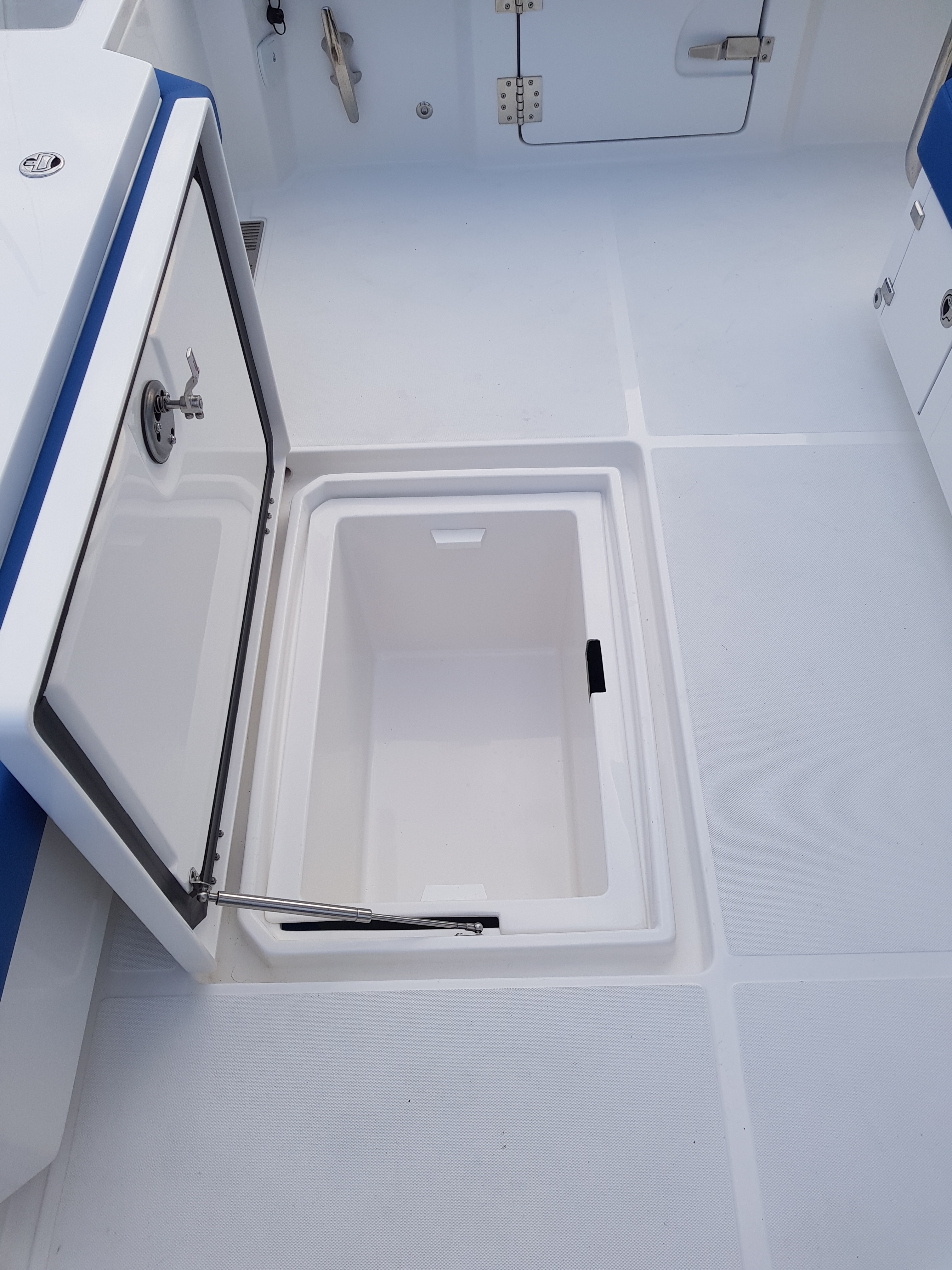

Cockpit storage with tub for fish

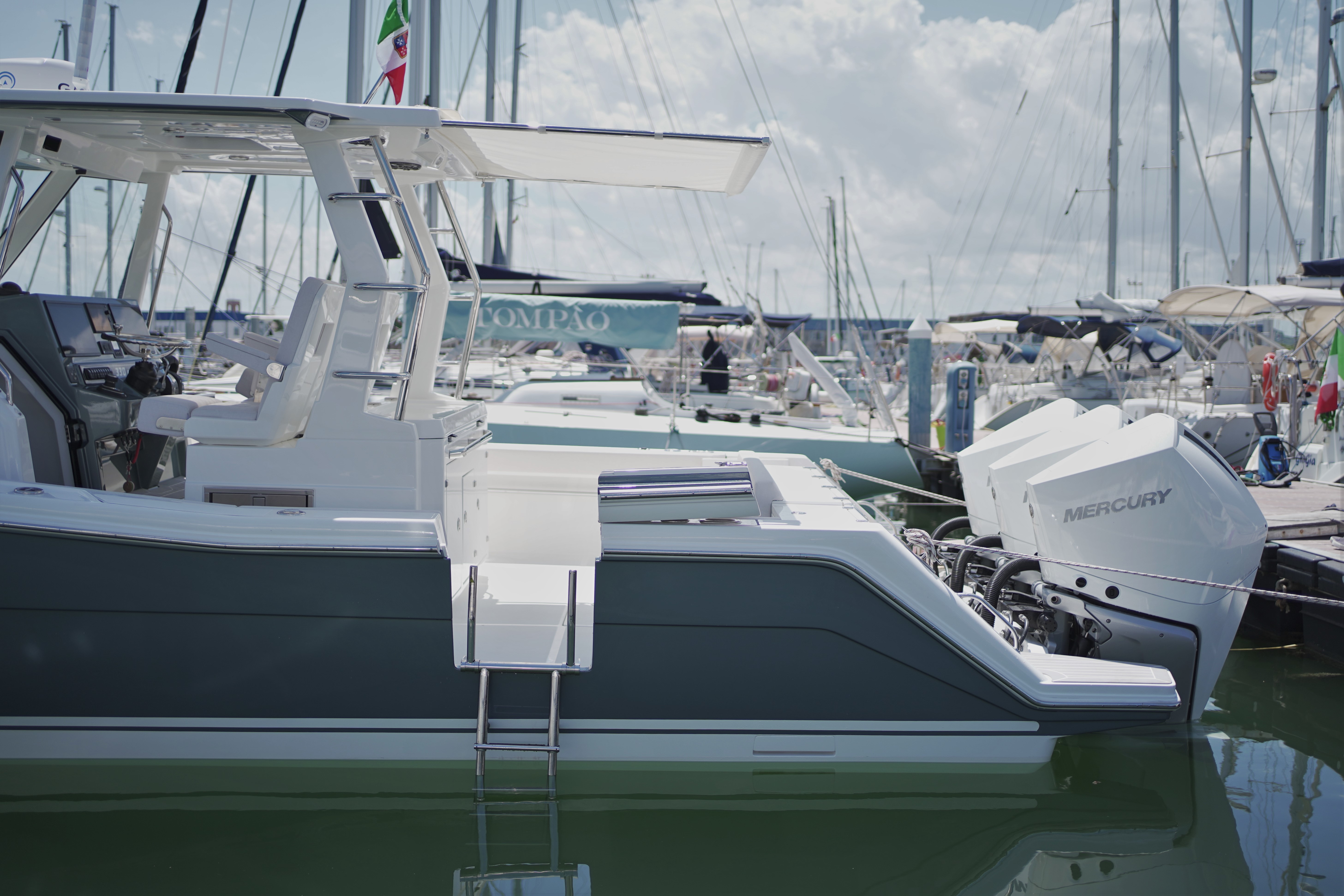

Stainless steel boarding ladder
Self-draining cockpit
Non-skid surface on the deck and the cockpit
STANDARD INTERNAL FITTING

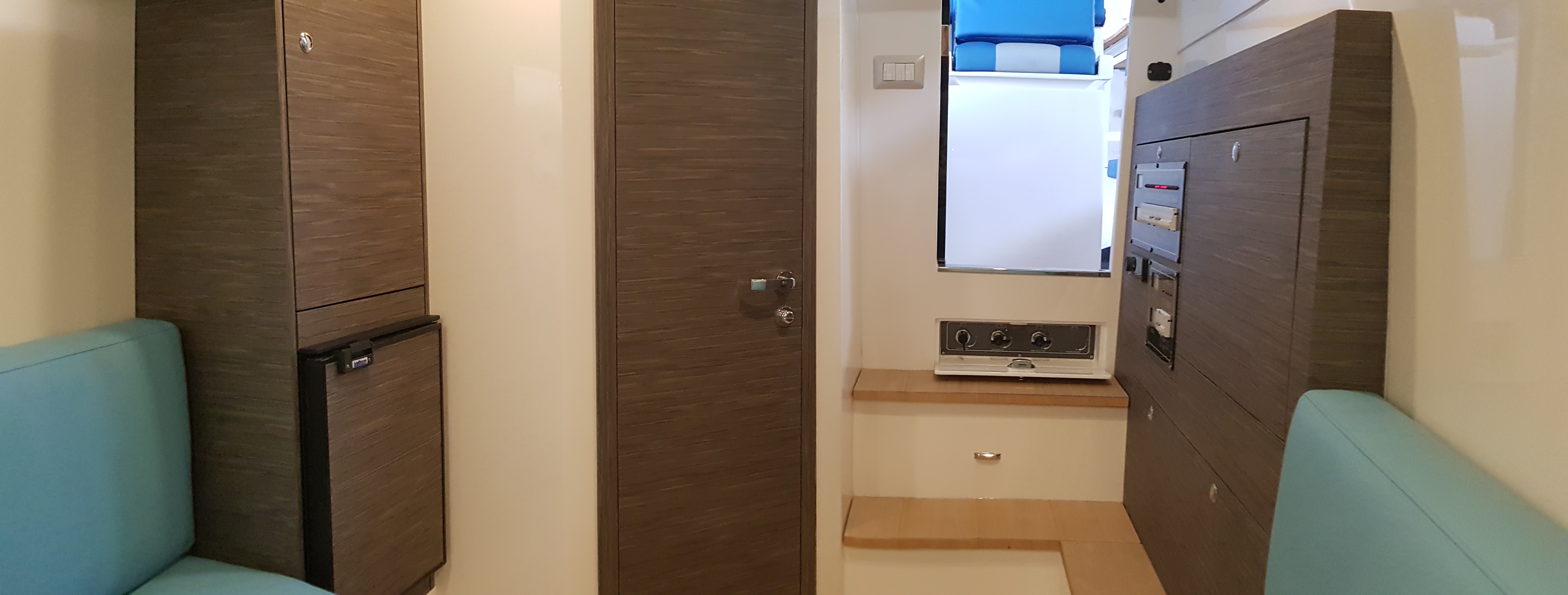

Bow cabin
Sliding entrance door in the cabin in plexiglas with lock
Cabin stairs with wood steps

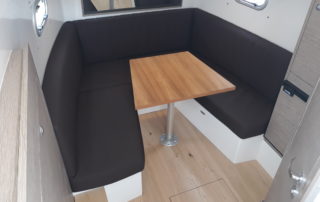

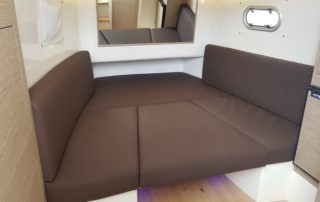

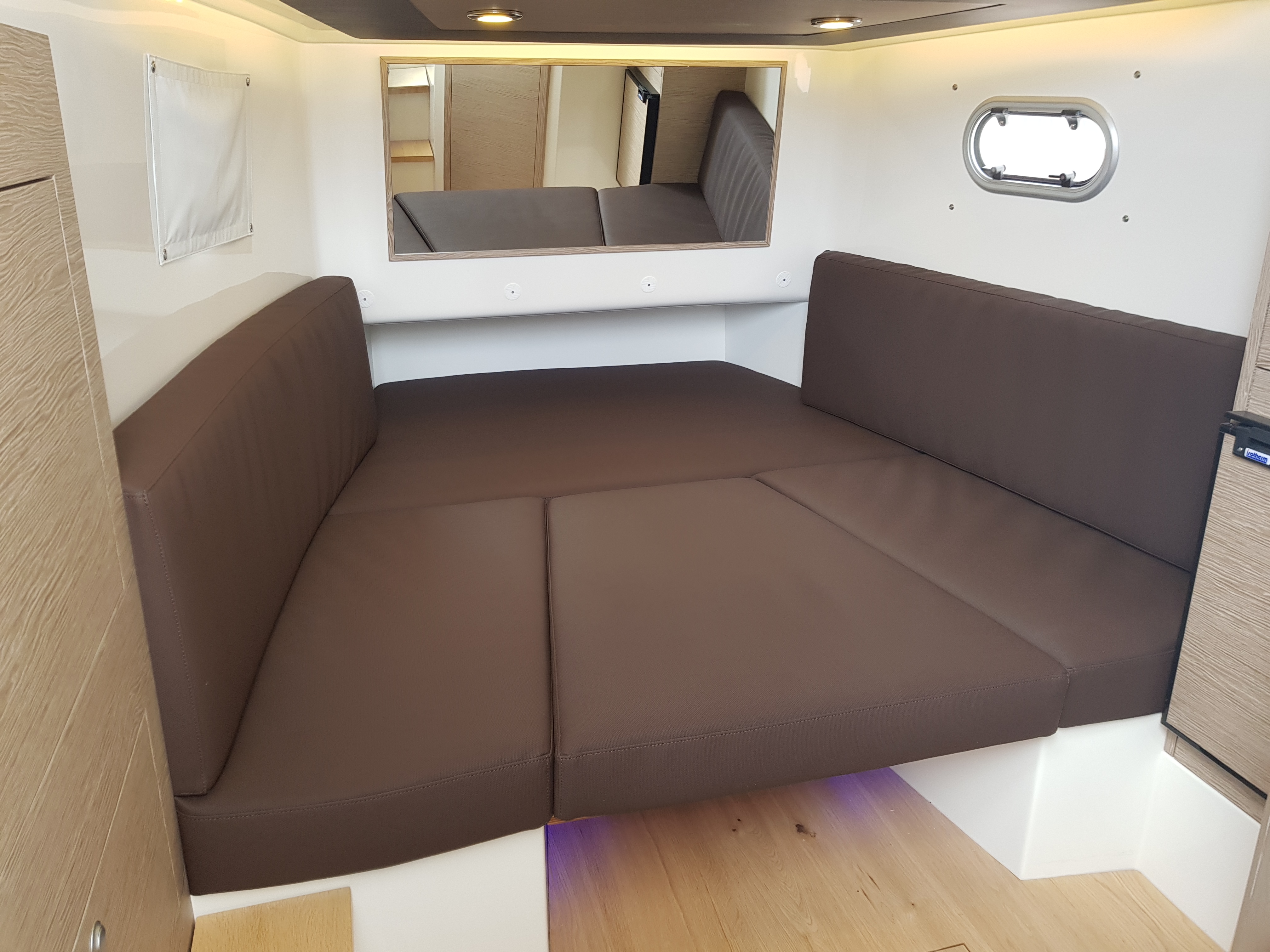

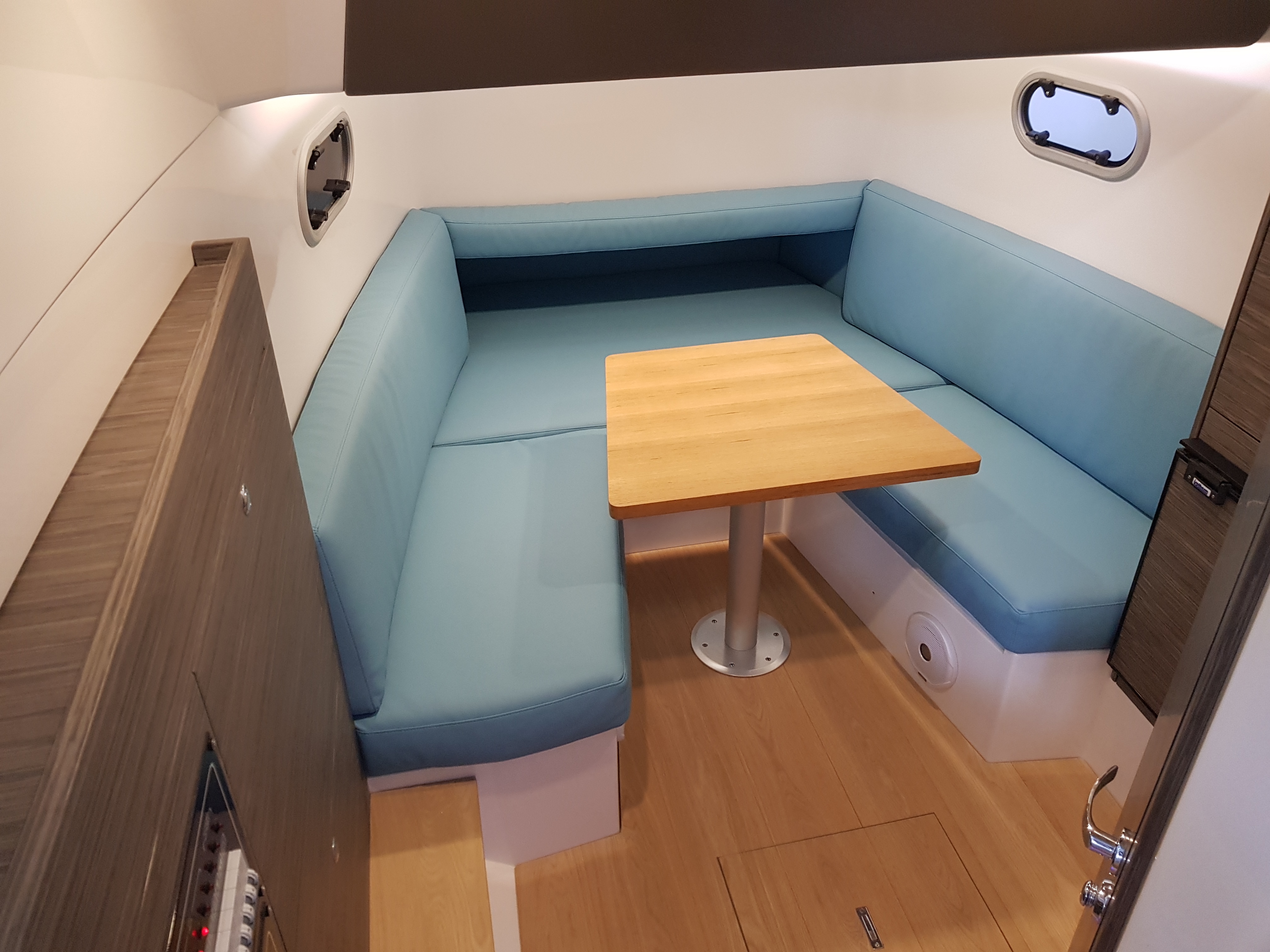

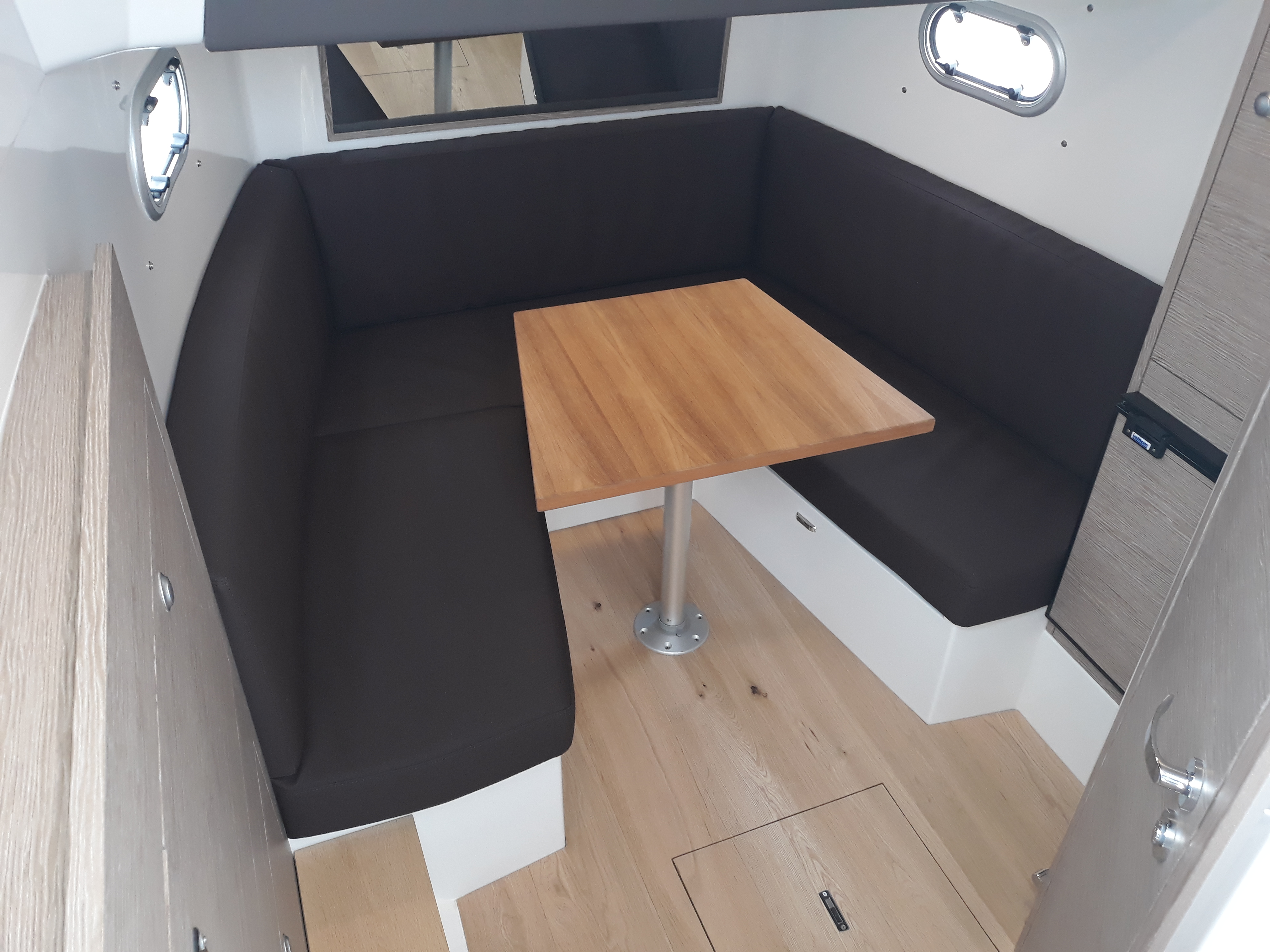

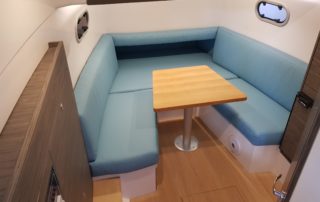

Dinette lounge with cushions convertible into berth for two
Folding dinette table in fiberglass
Storages below lounge
Clock, barometer and thermometer with hygrometer
Mirror on the bulkhead
Hanging closet

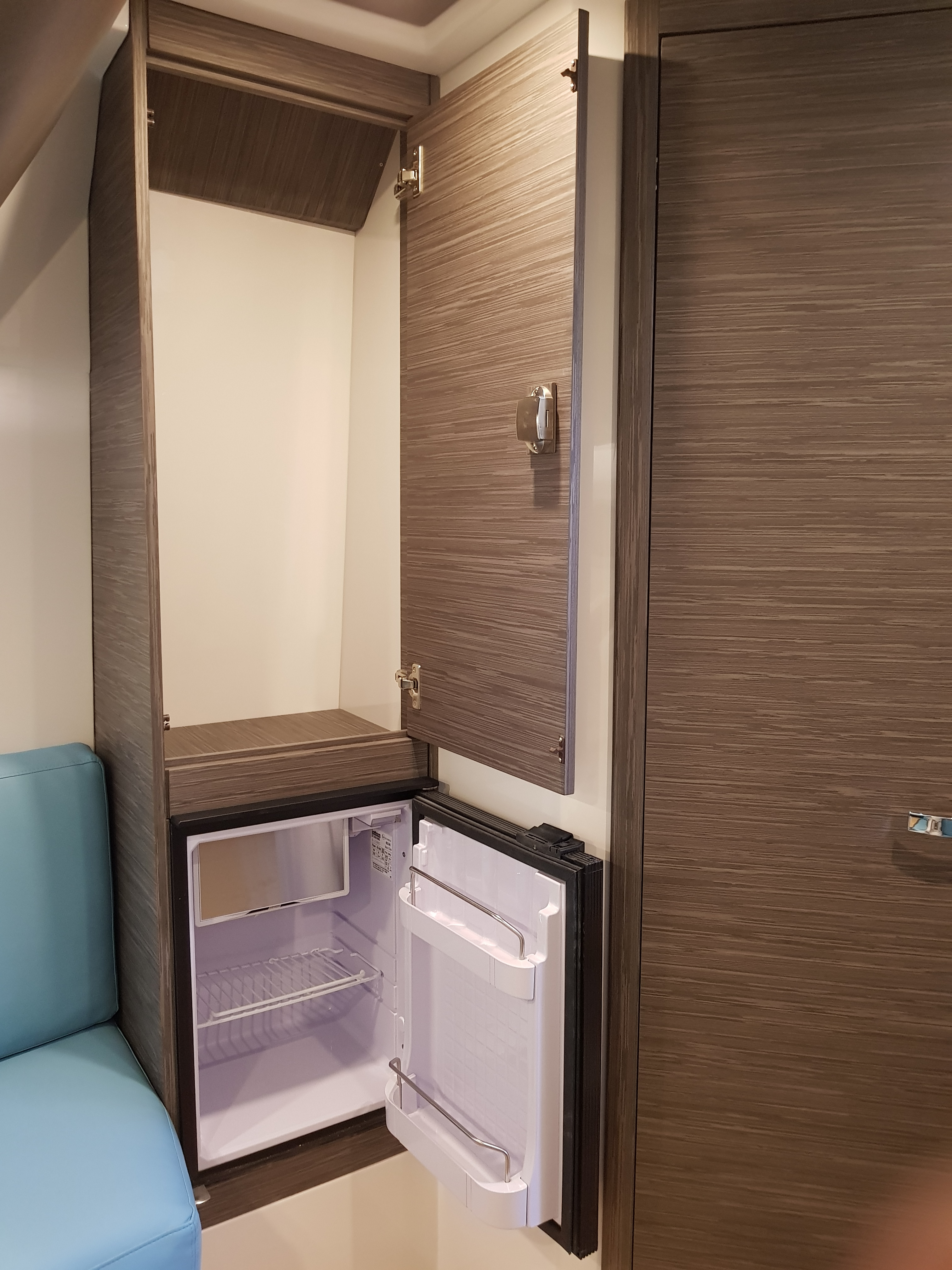

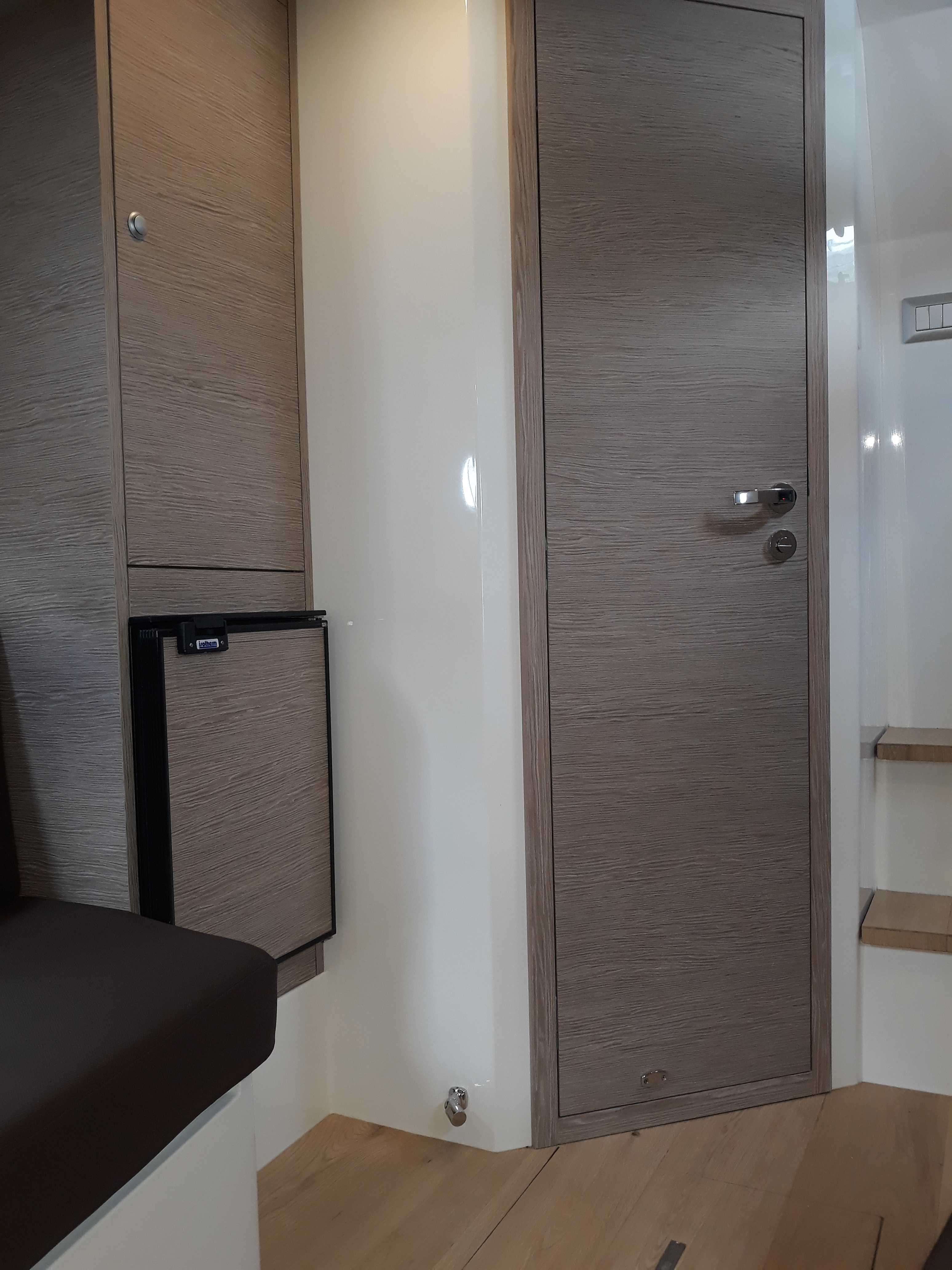

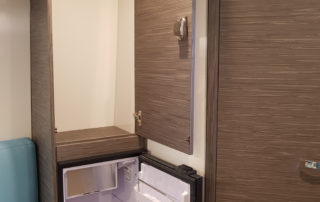

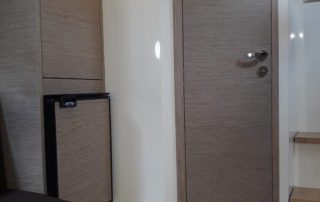

42 l refrigerator 12 V

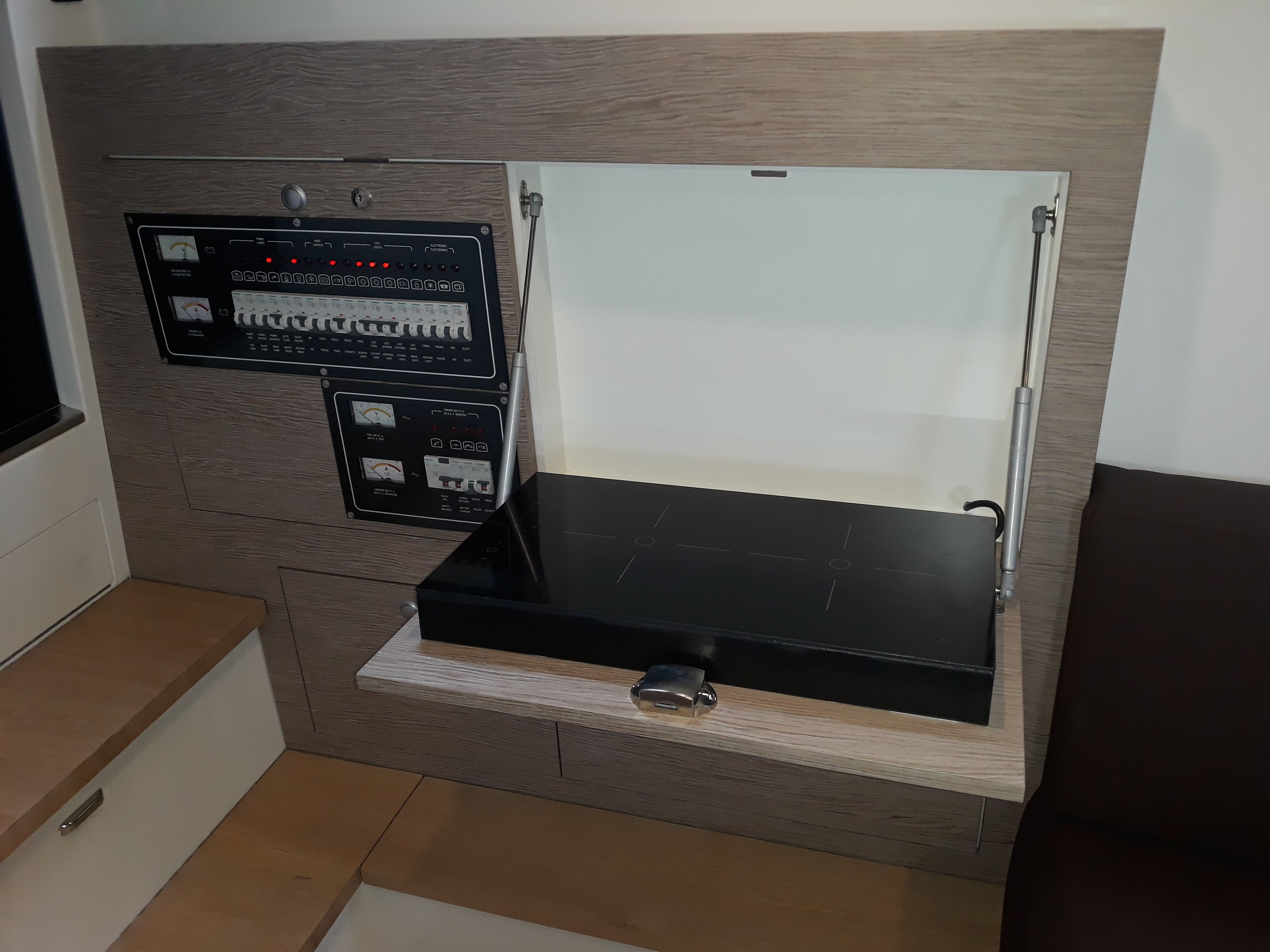

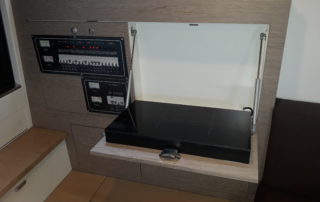

Retractable cooker

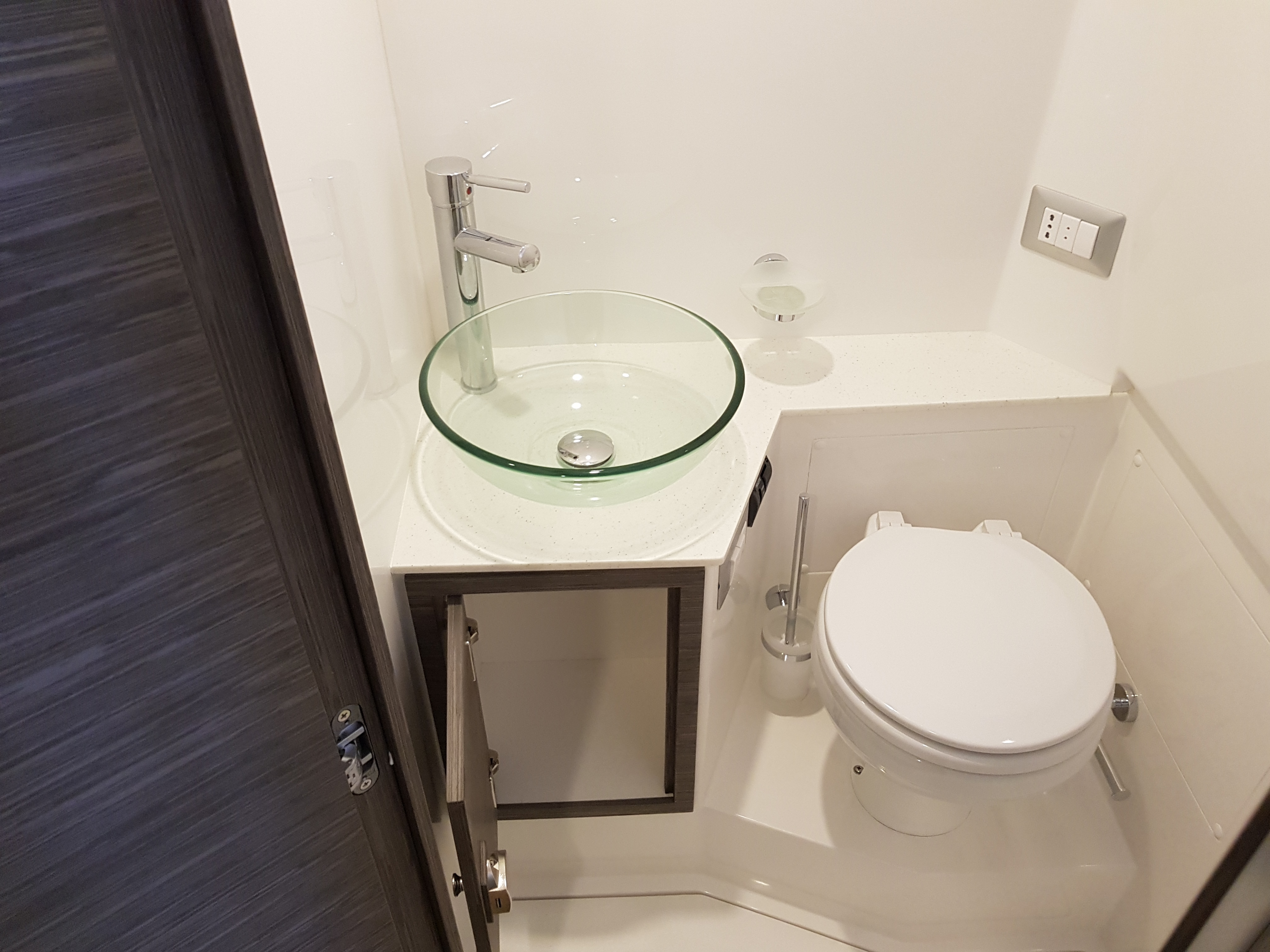

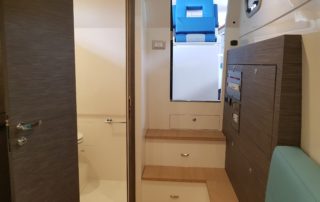

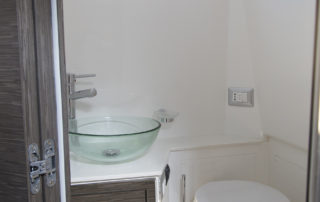

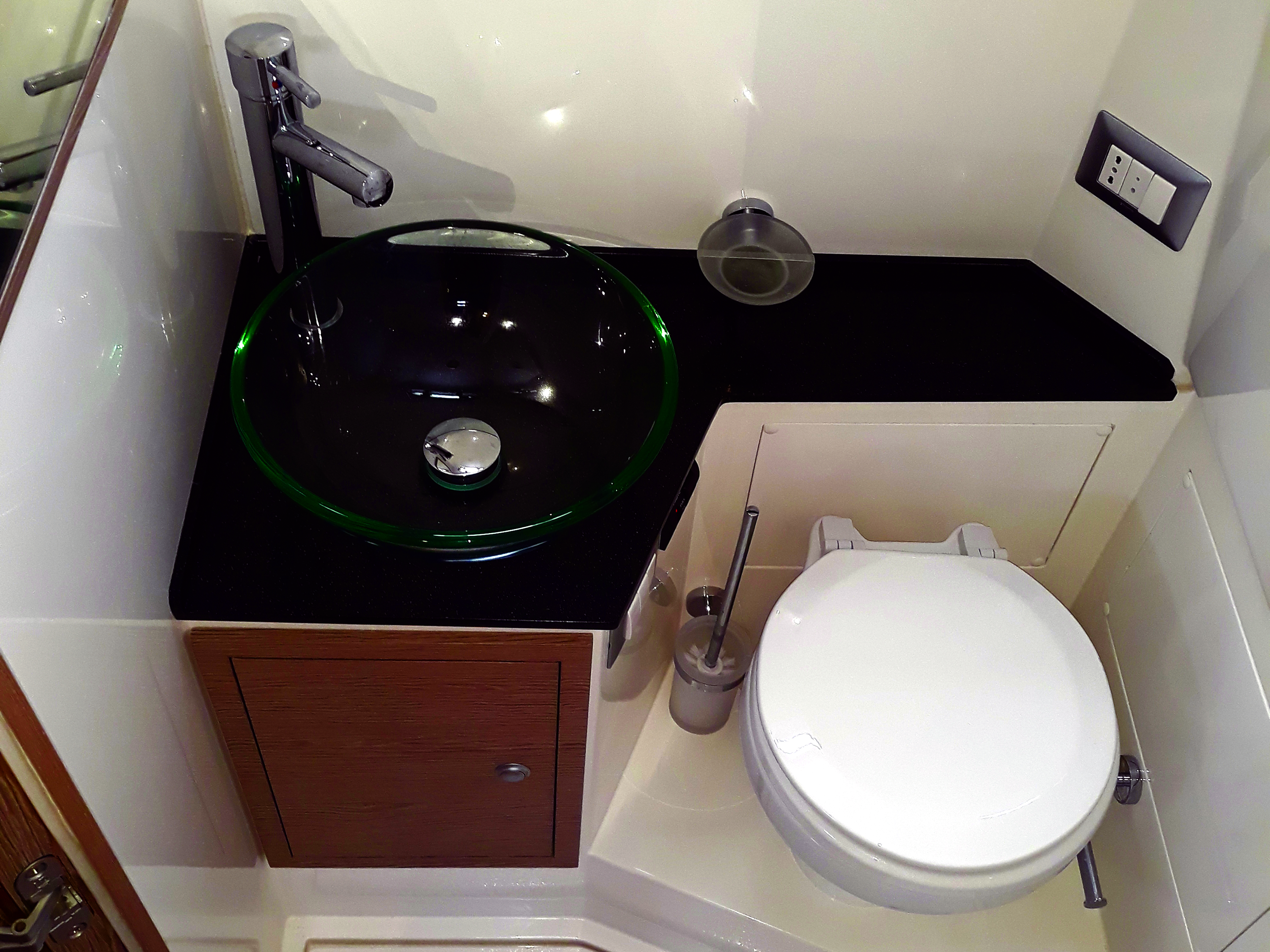

Bathroom

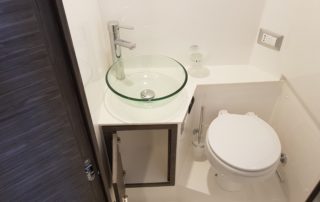

Bathroom unit with counter top, sink and hand shower
Mirror
Electrical toilet
Shower water extraction electric pump and tank
Waste system with holding tank, level and filter
Inside furniture and cabin floor in wood
OPTIONAL EQUIPMENT
Stainless steel structure on the fiberglass Hard Top with 6 – stainless steel rod holders
Hard Top total enclosures
Cockpit sliding curtain
Synthetic teak coating for: upper cockpit, footrest under the driver’s seats and swim platform
Sound system Fusion with stereo Apollo MS-RA670 and 8 speakers
Electrical hot water heater 220 V – capacity 15 l
49 l stainless steel drawer refrigerator 12 V in the cockpit
Bow propeller
3 kW diesel generator
7.000 BTU/h air conditioning system in the cabin
2 x 12 V sockets in the cockpit
Cockpit sea water pump

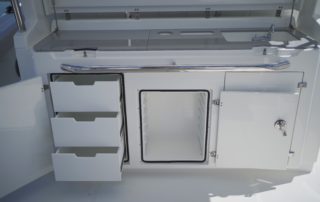

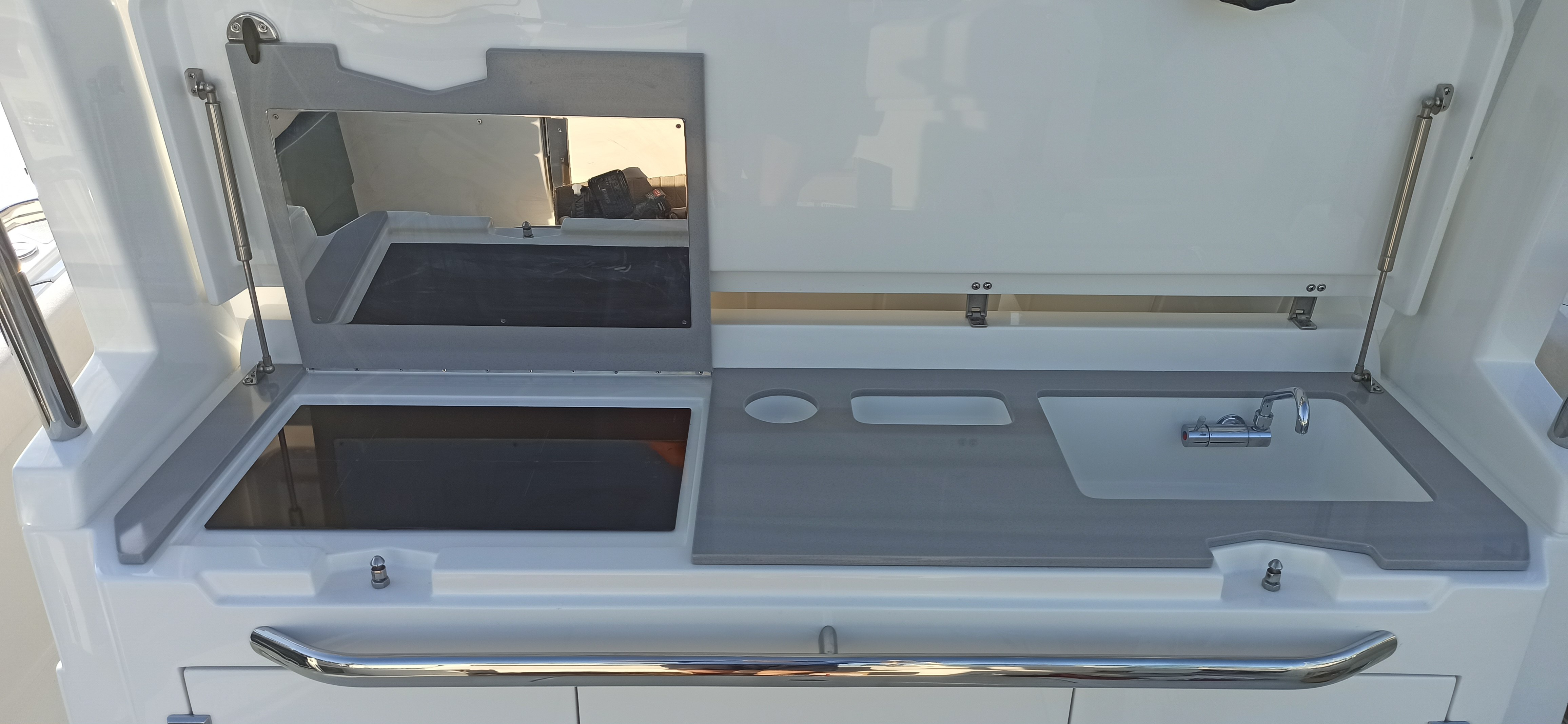

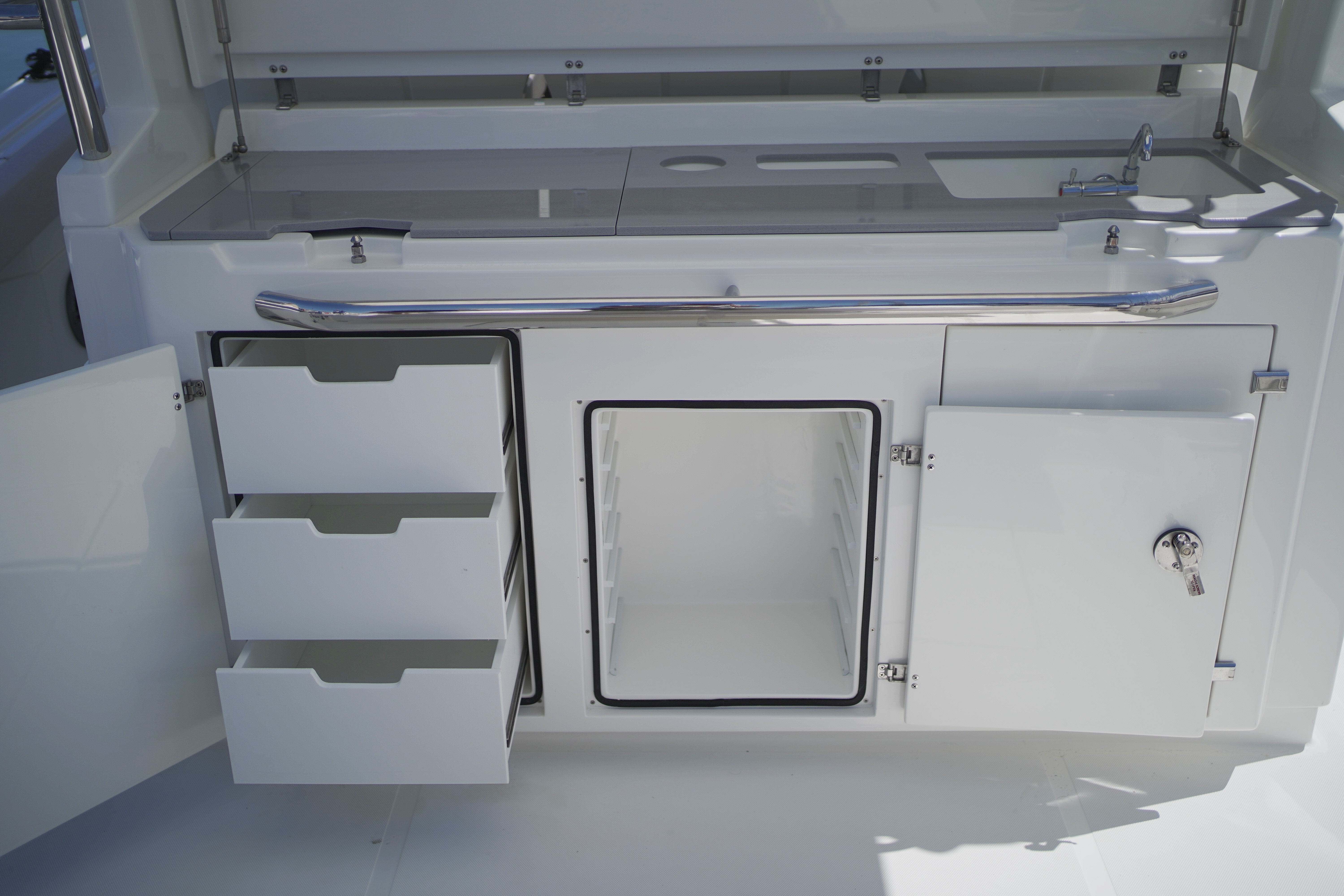

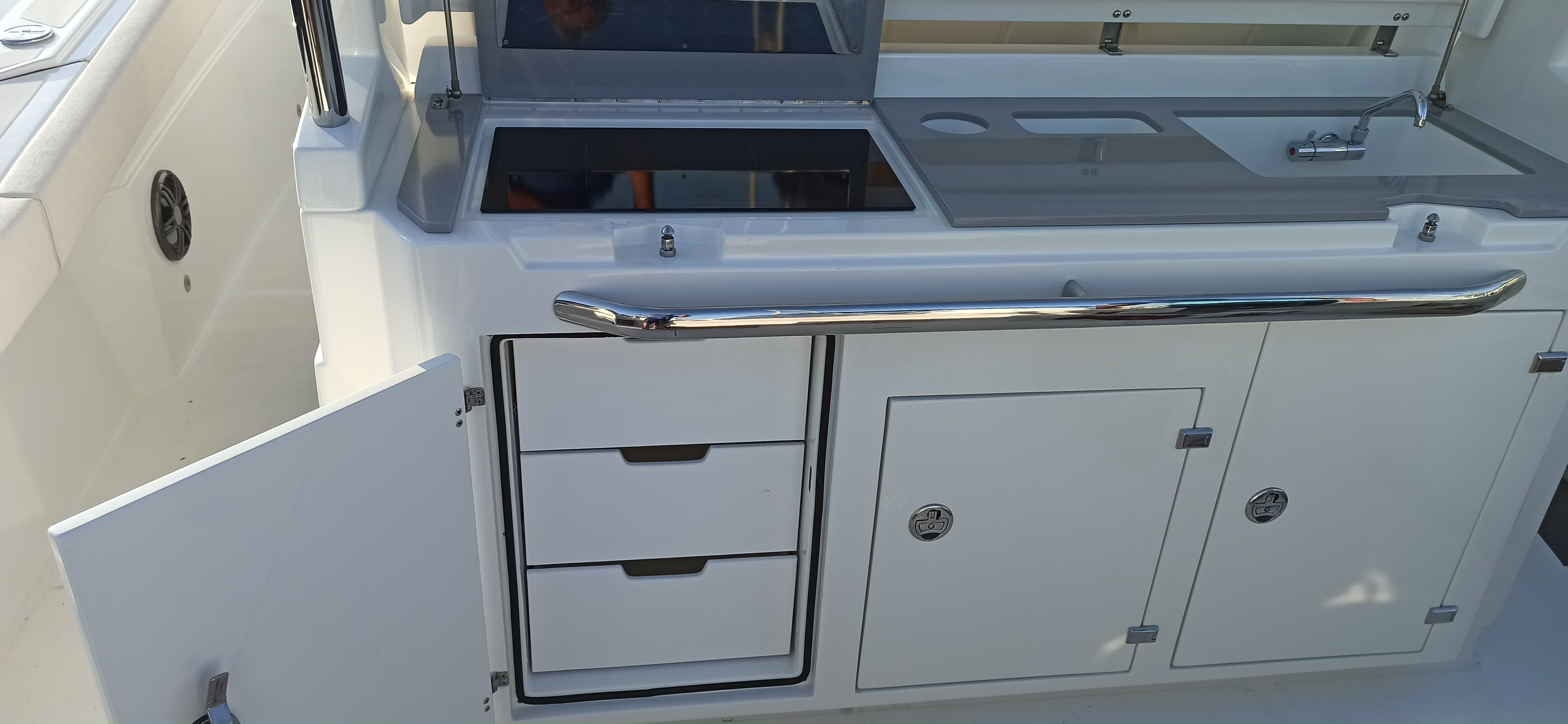

Cockpit cabinet (behind pilot and co-pilots chairs) with sink and cooker

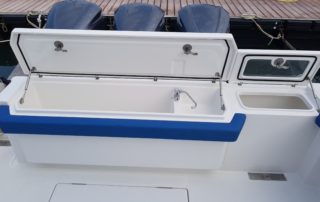

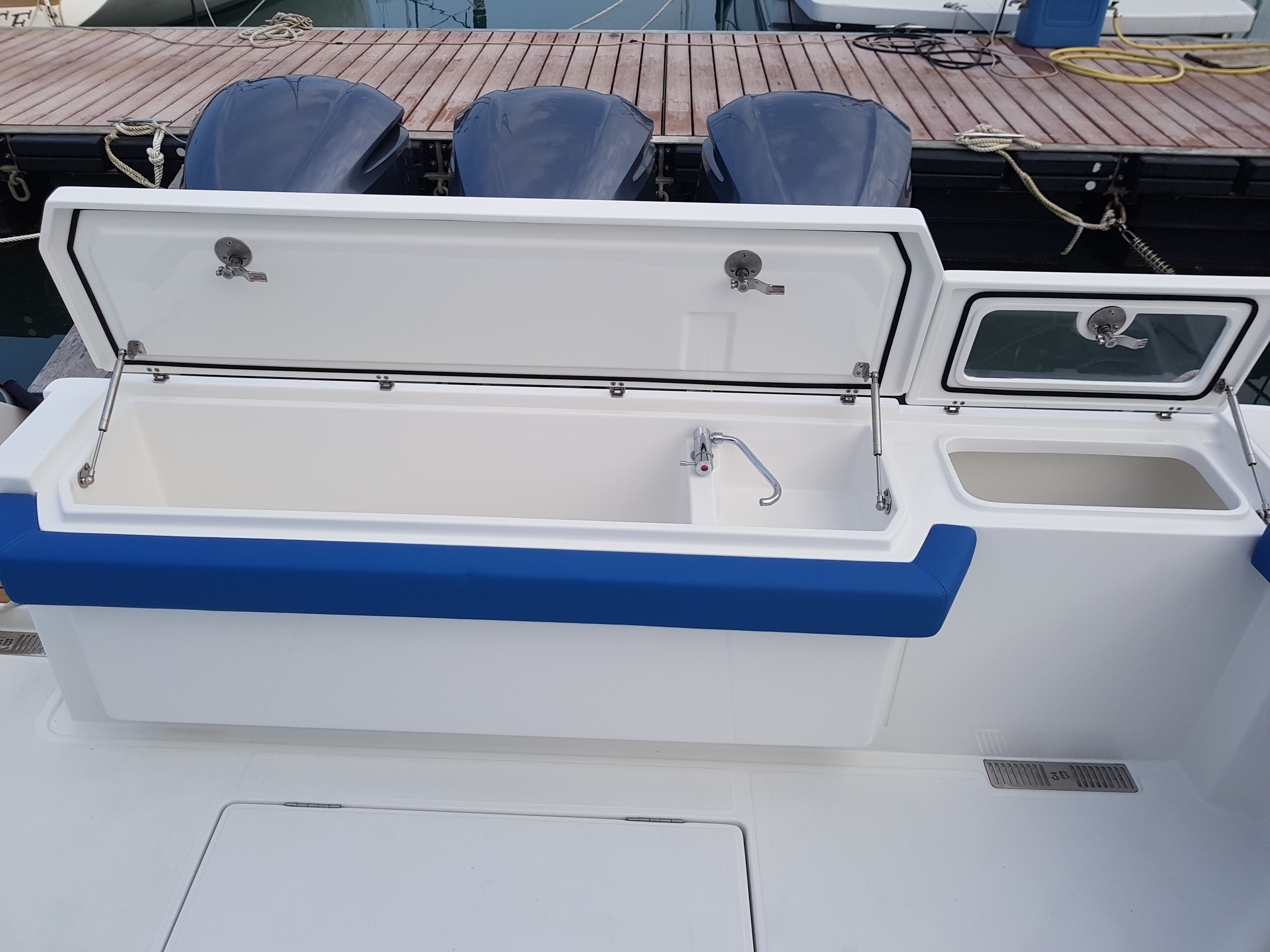

Stern cabinet with 2 transom fish boxes with pumps, stern tub for fish and opening stern bench
Bow curtain

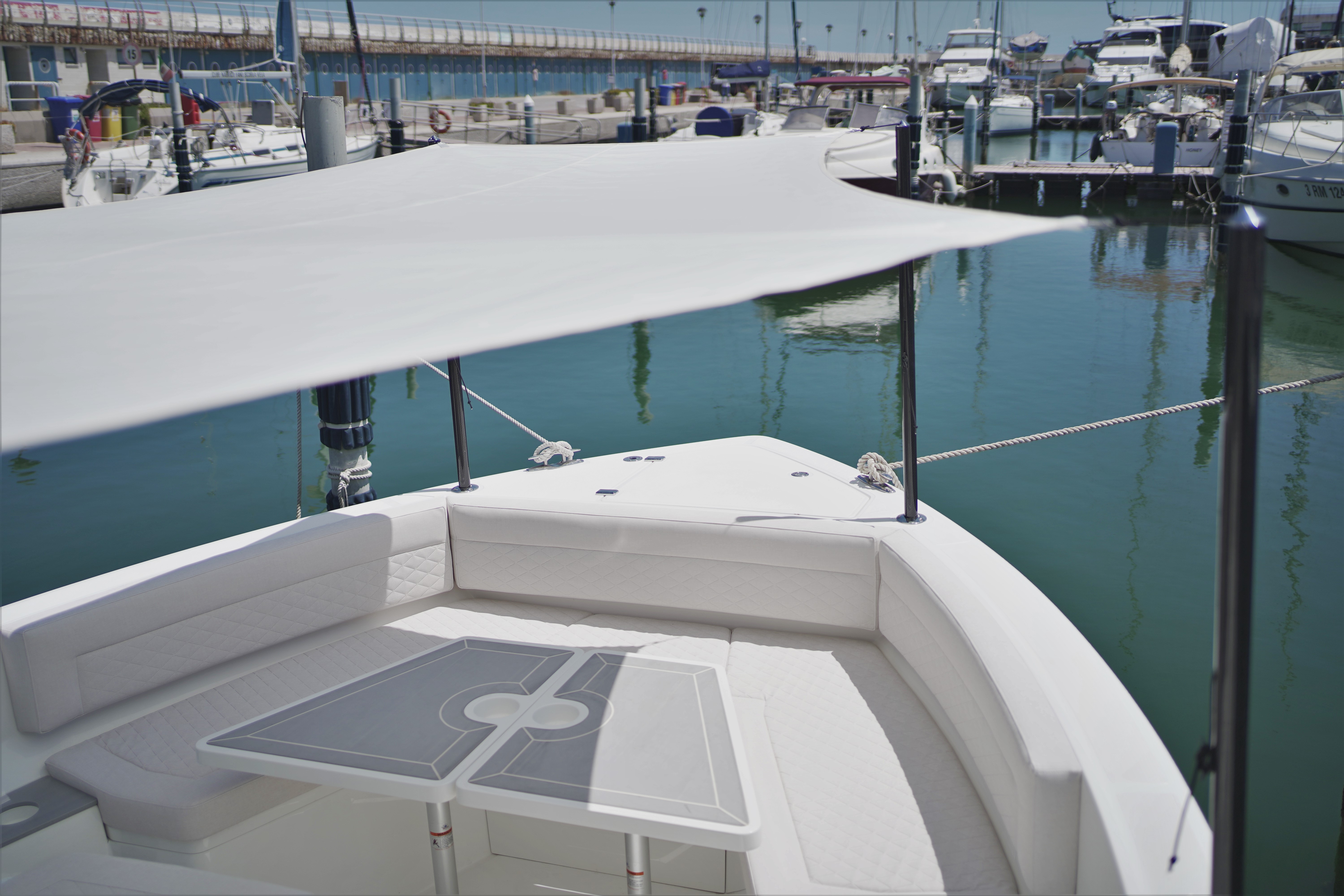

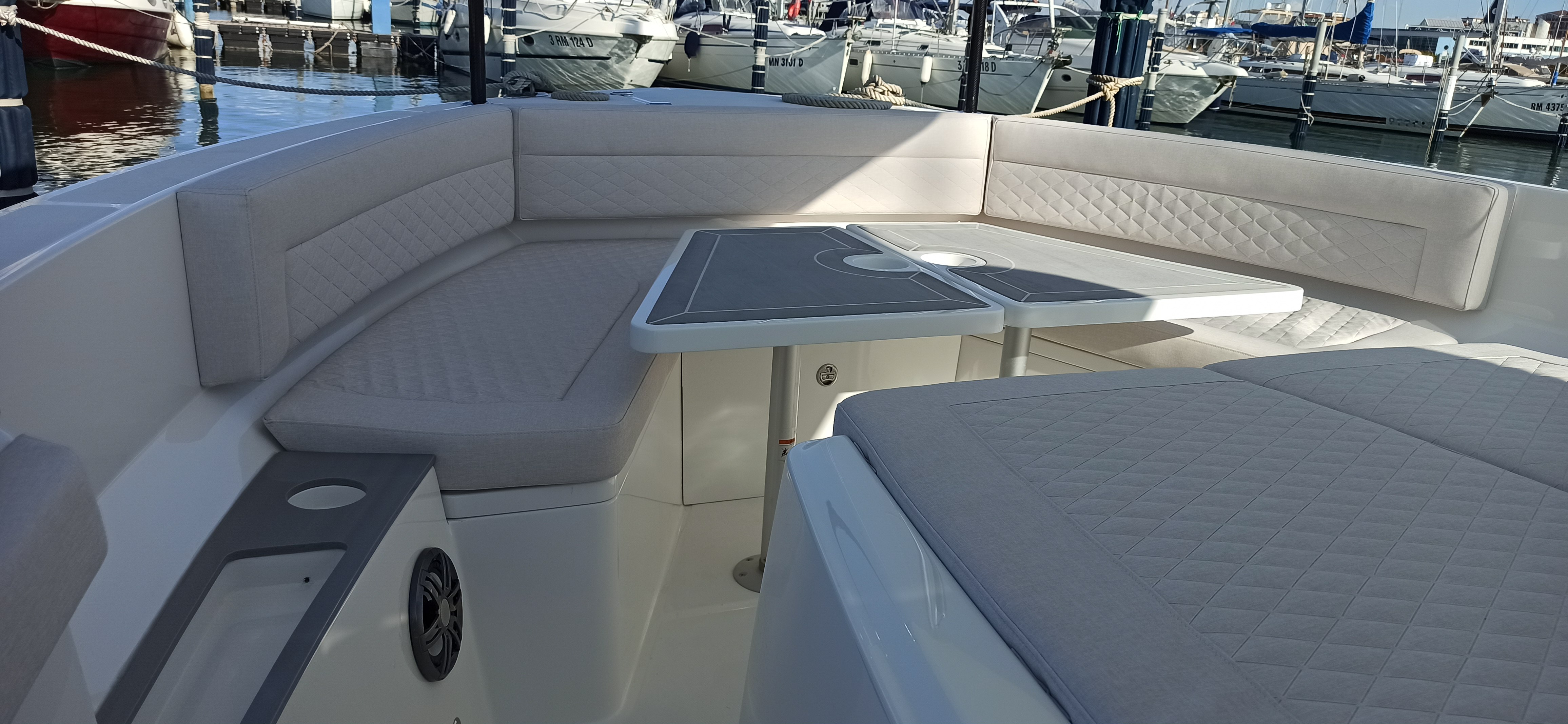

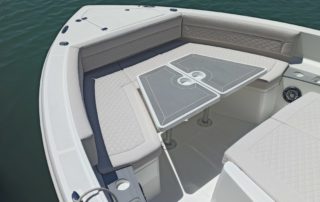

Bow fiberglass table with telescopic table leg

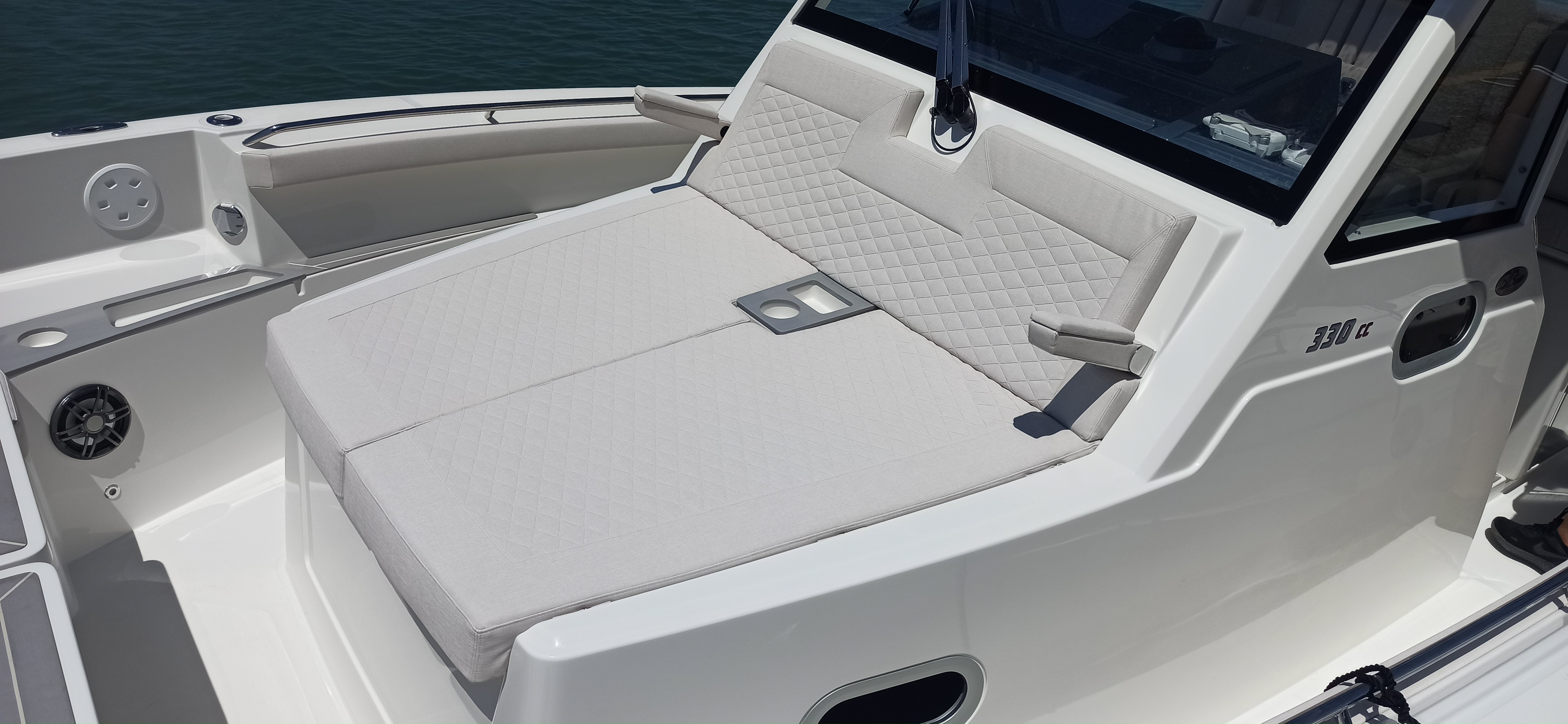

Additional cushion to convert bow bench in bow sundeck (to install the additional cushion you need to have the bow table)
Swivel backrests in bow bench

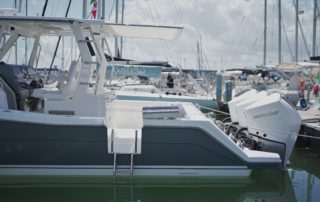

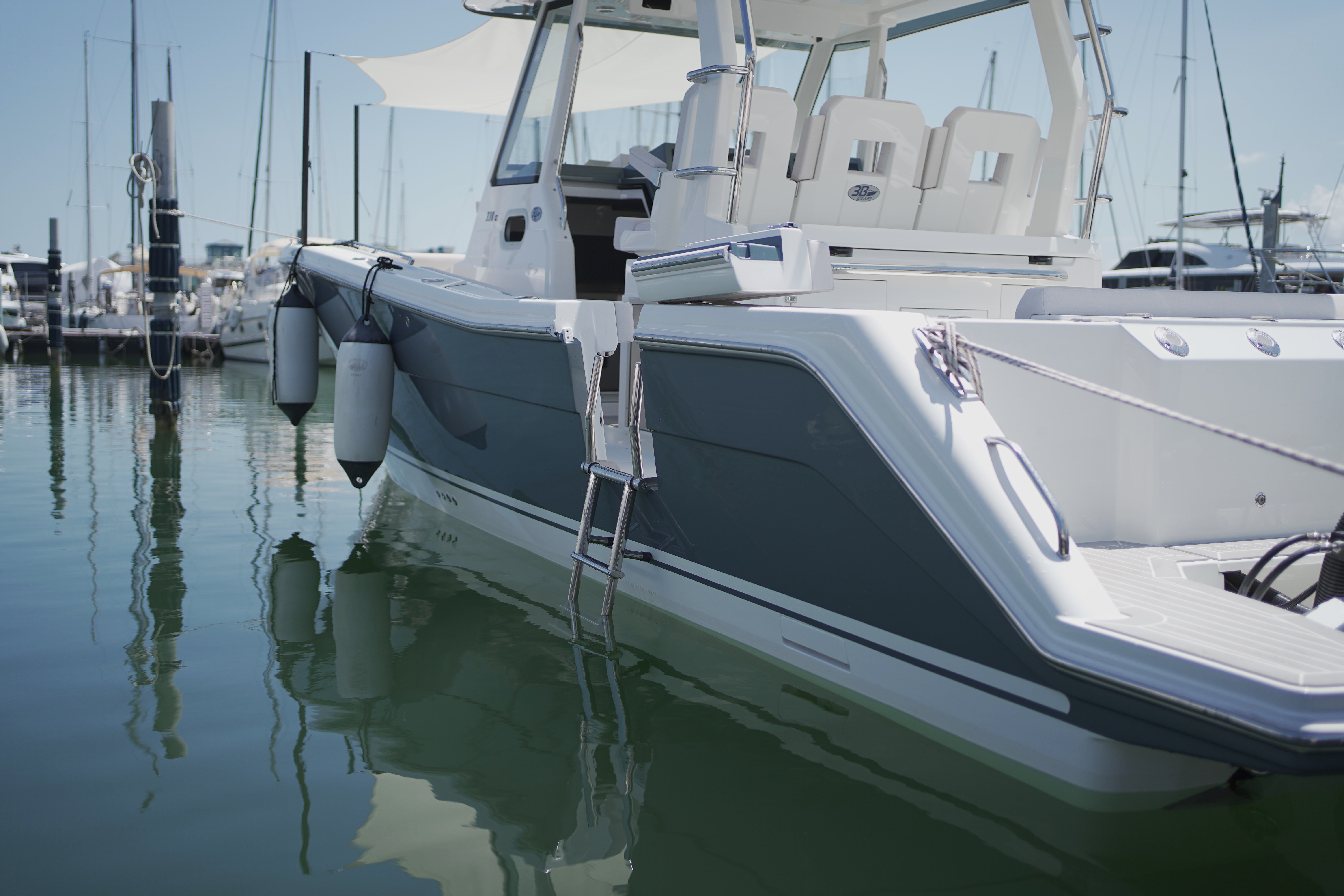

Stainless steel side boarding ladder
n° 6 stainless steel built-in rod holders in the bulwarks
Rubbing strake in stainless steel and PVC
Stern swimming platforms
Protective cover for helm pilot console and entrance door
Protective cover for helm seats
Custom hull GELCOAT colour (when different from white)
