270 LX – Data sheet
270 LX – SPECS
Overall length: 8,30 m
Hull length: 8,24 m
Maximum beam: 2,84 m
Dry weight (approx., depends on engines & options): 3.000 kg

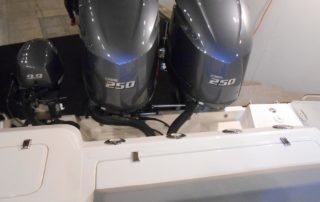

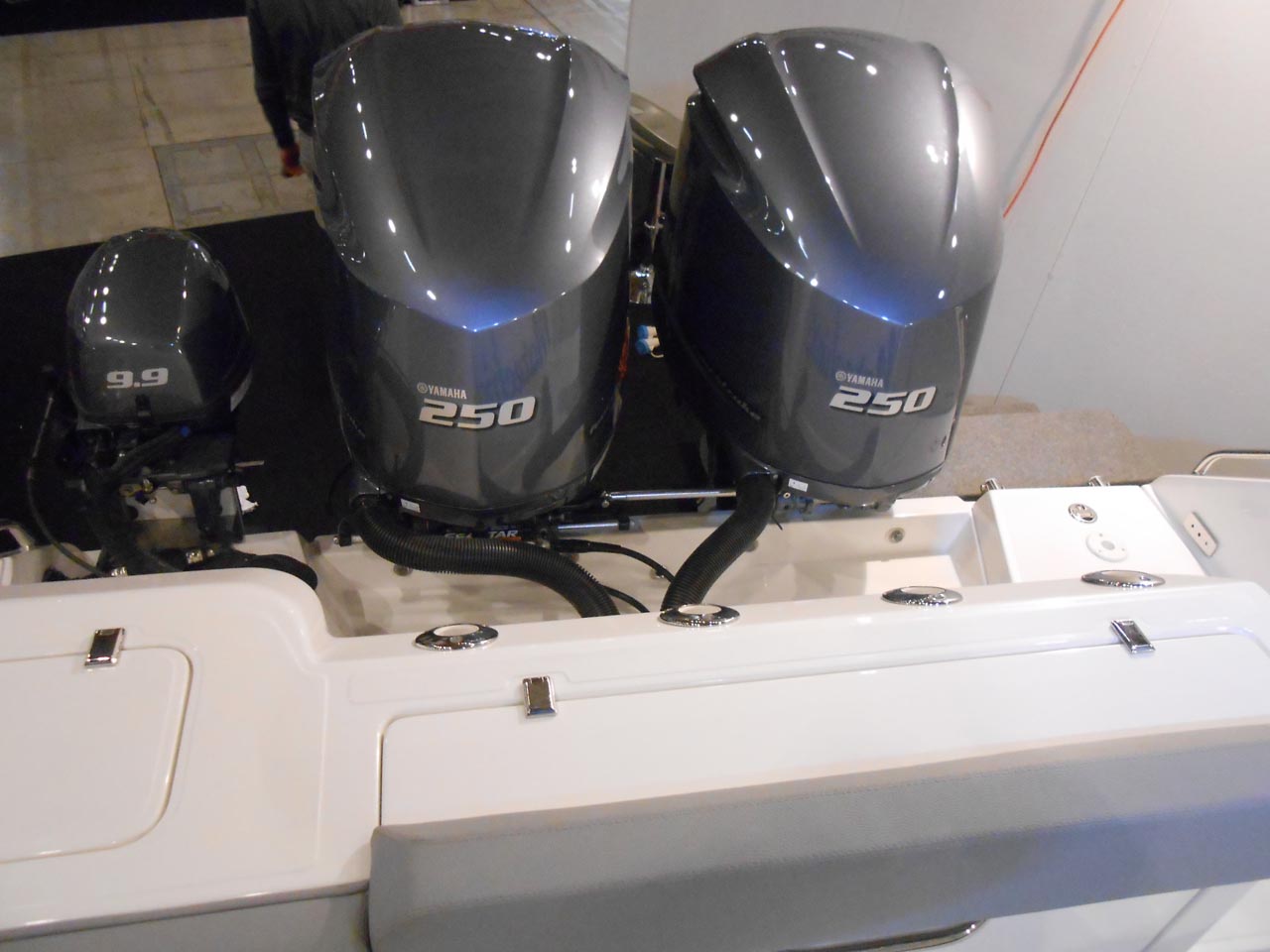

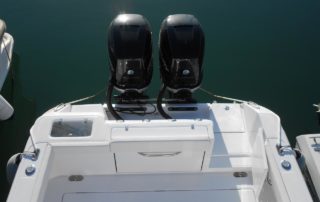

Maximum horsepower: 2 x 300 HP
Fuel capacity: 500 l
Fresh water capacity: 80 l
Sleeping capacity: 2 + 2
Maximum persons capacity: 8
CE navigation category: B
STANDARD MECHANICAL AND ELECTRICAL FITTING
General electrical system
Electrical system 12 V
General electrical panel inside

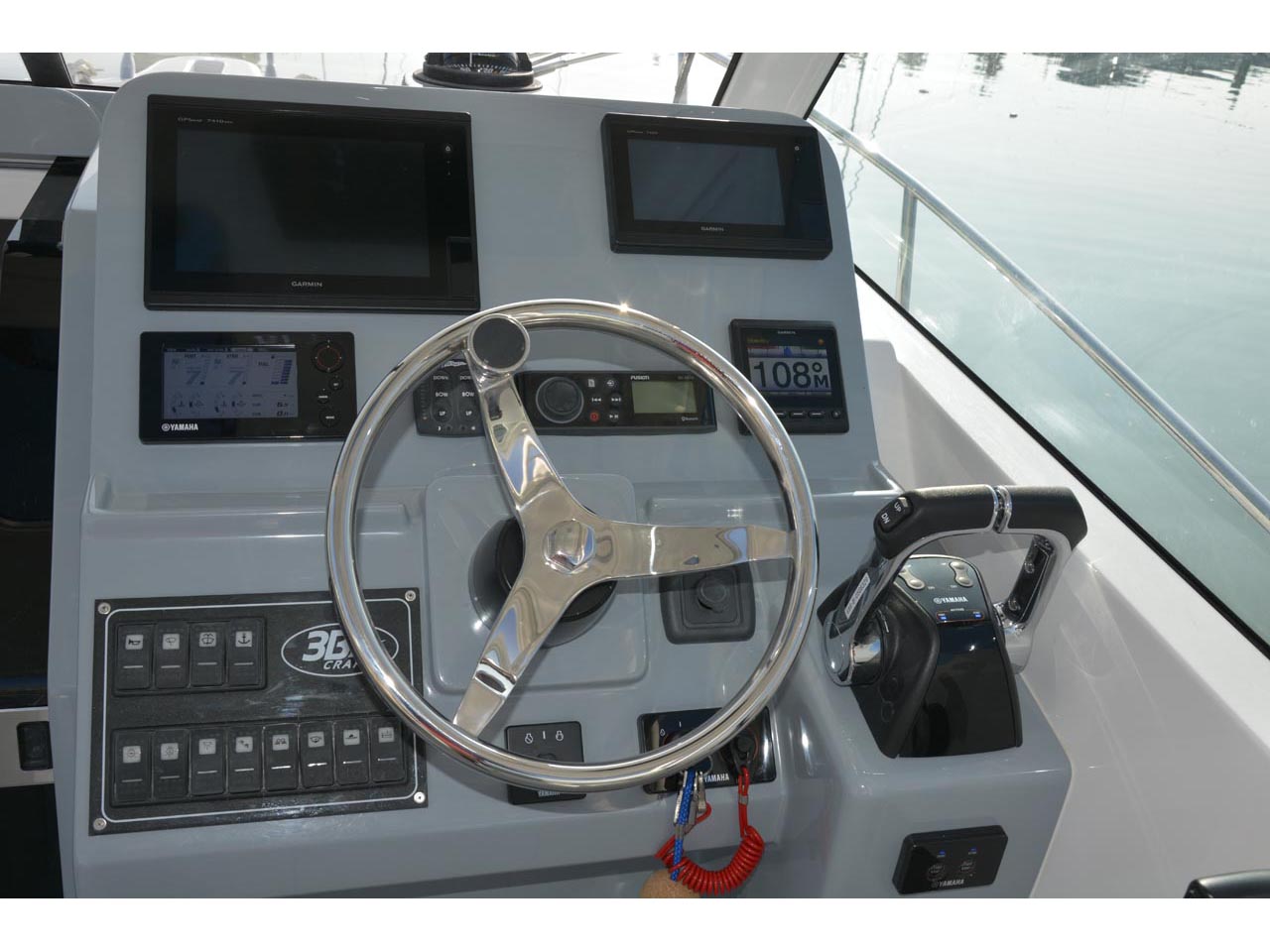

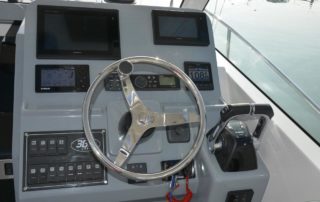

Helm panel with switches
2 x 160 Ah batteries
n° 3 battery switches
Battery parallel
Compass 3”
Built-in lights in all the rooms
Current taps 12 V
Fuel system
n° 2 stainless steel fuel tanks – capacity 500 l
Fuel level indicators
n° 1 fuel filler cup
Fresh water system
Fresh water tank – capacity 80 l
Water level indicator
n° 1 fresh water filler cup
Fresh water pressure system pump
Bilge pump system
n° 2 automatic bilge pumps
n° 1 manual bilge pump
Steering system
Pump for hydraulic steering
Ships’ wheel
Safety
n° 3 manual dry fire extinguishers
Remote-controlled fuel tank closing system with electric valves
Complete system of zincs for galvanic current
STANDARD INTERNAL FITTING

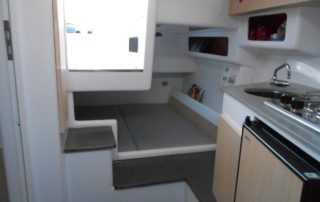

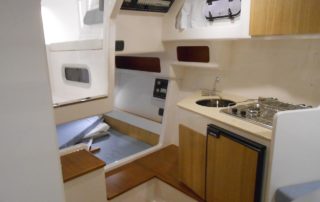

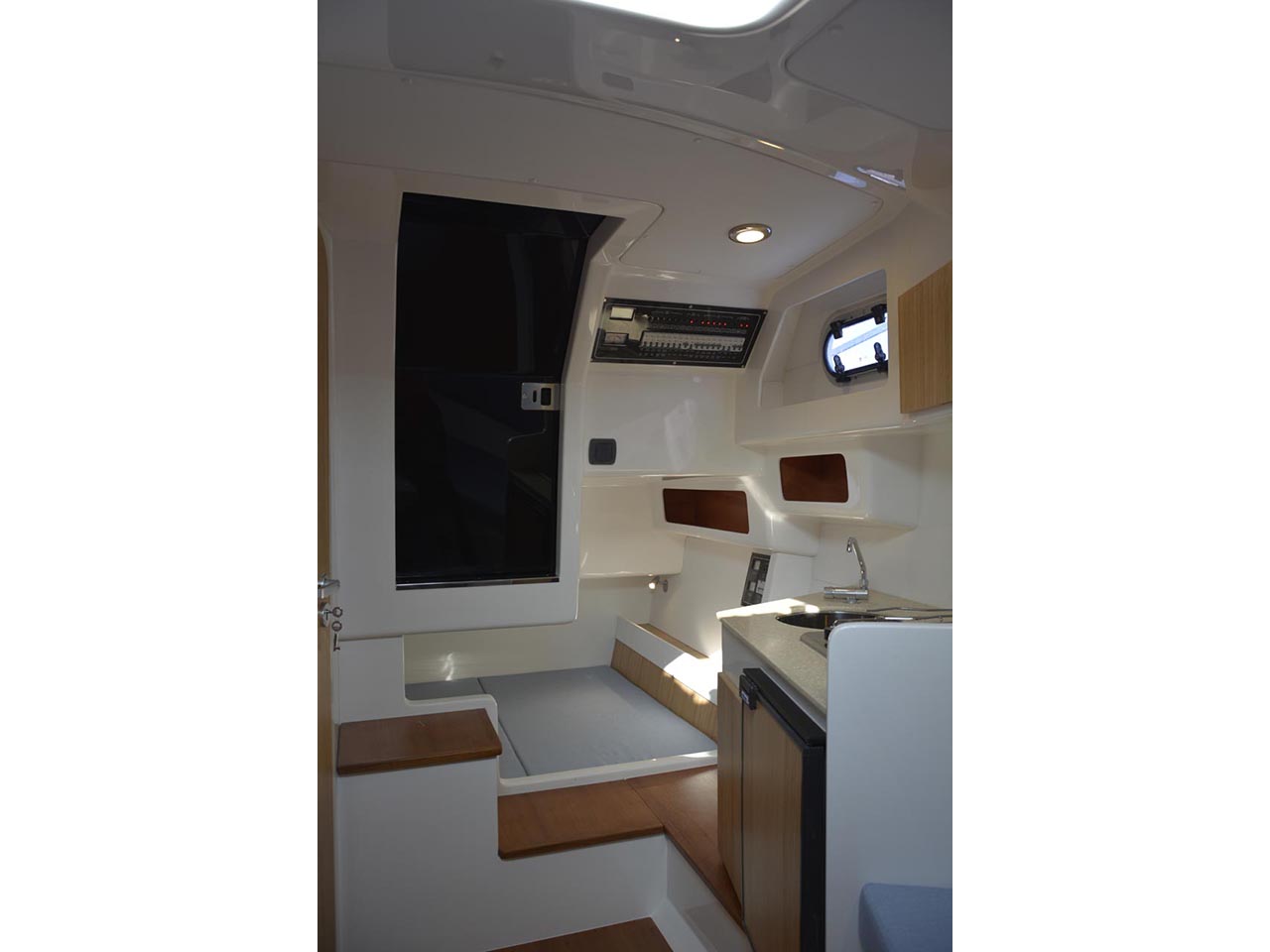

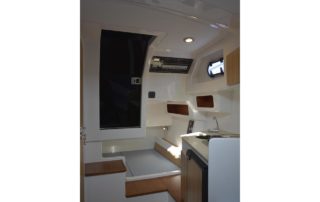

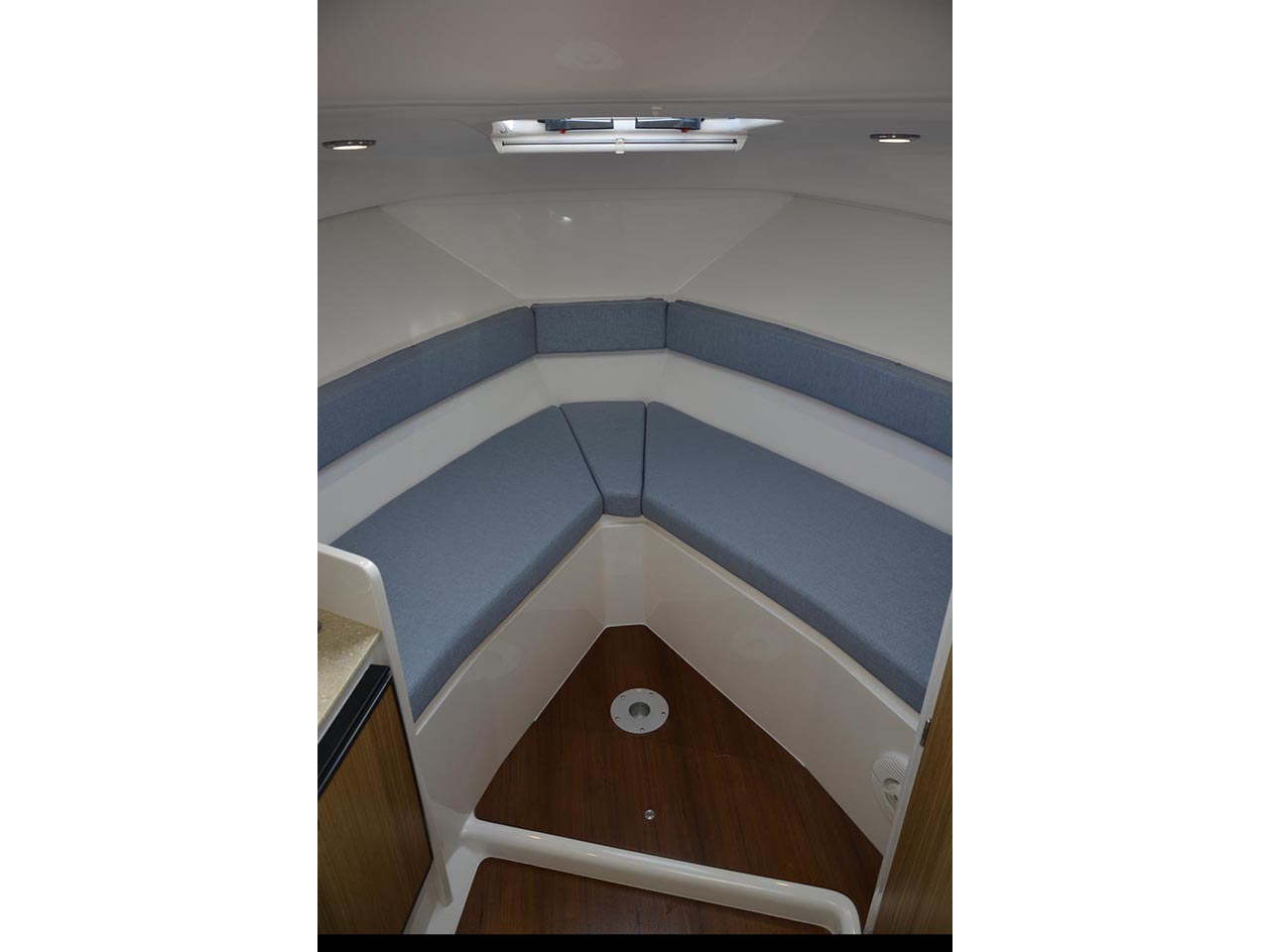

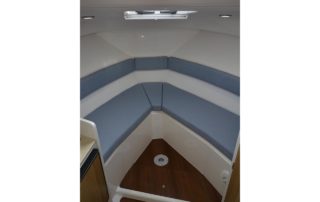

Bow cabin
Sliding entrance door in the cabin in plexiglas with lock

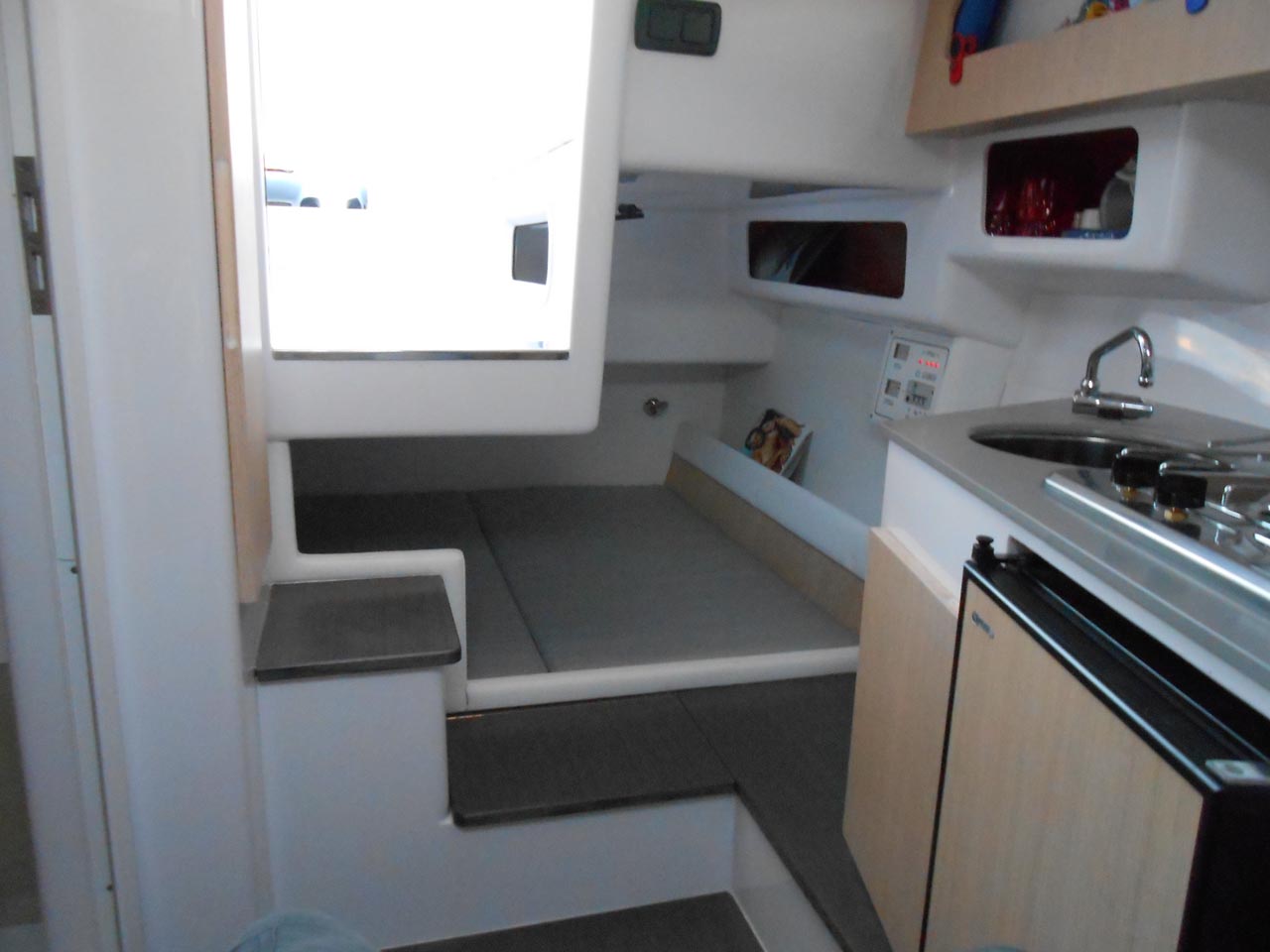

Cabin stairs with wood steps

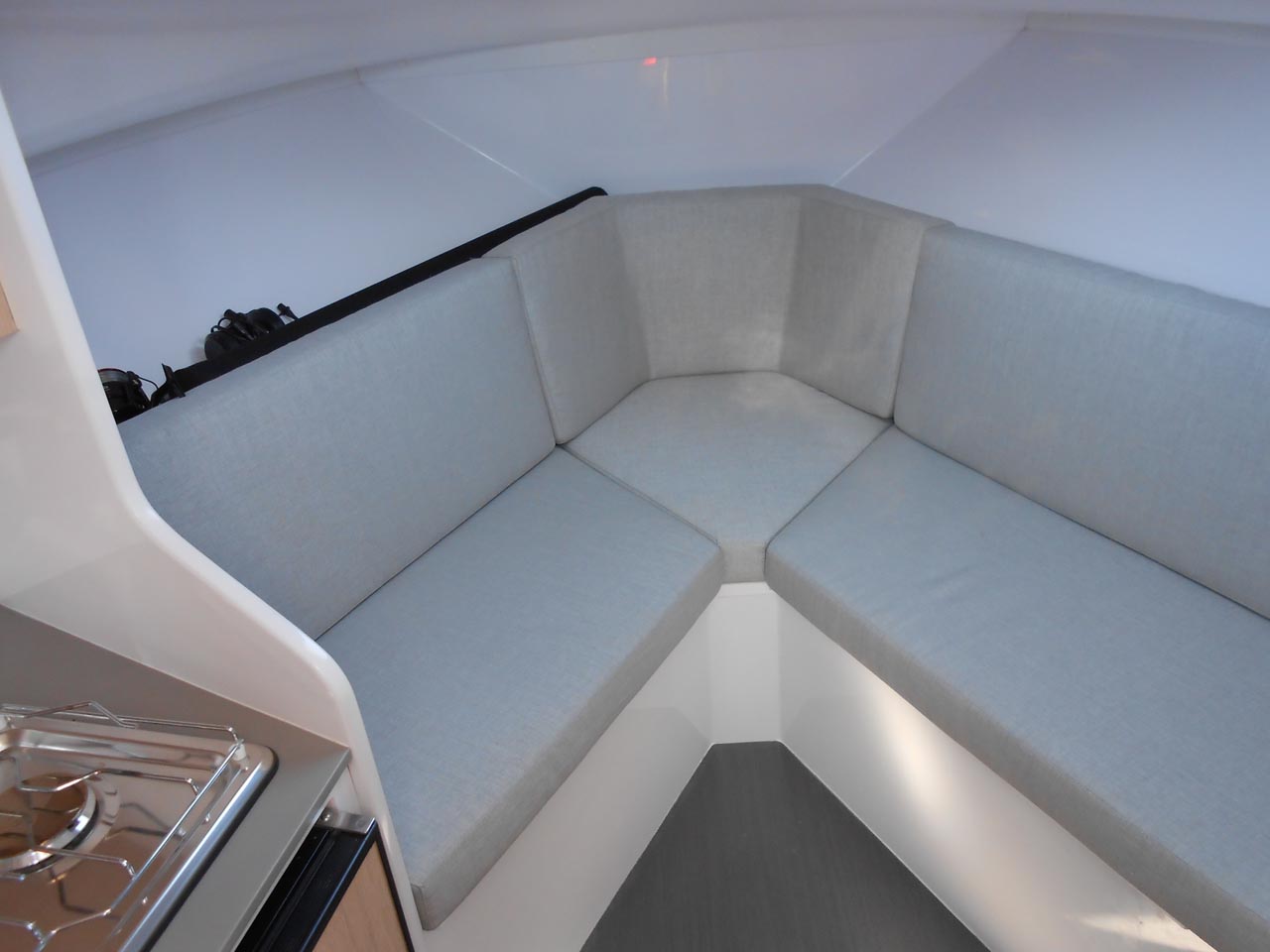

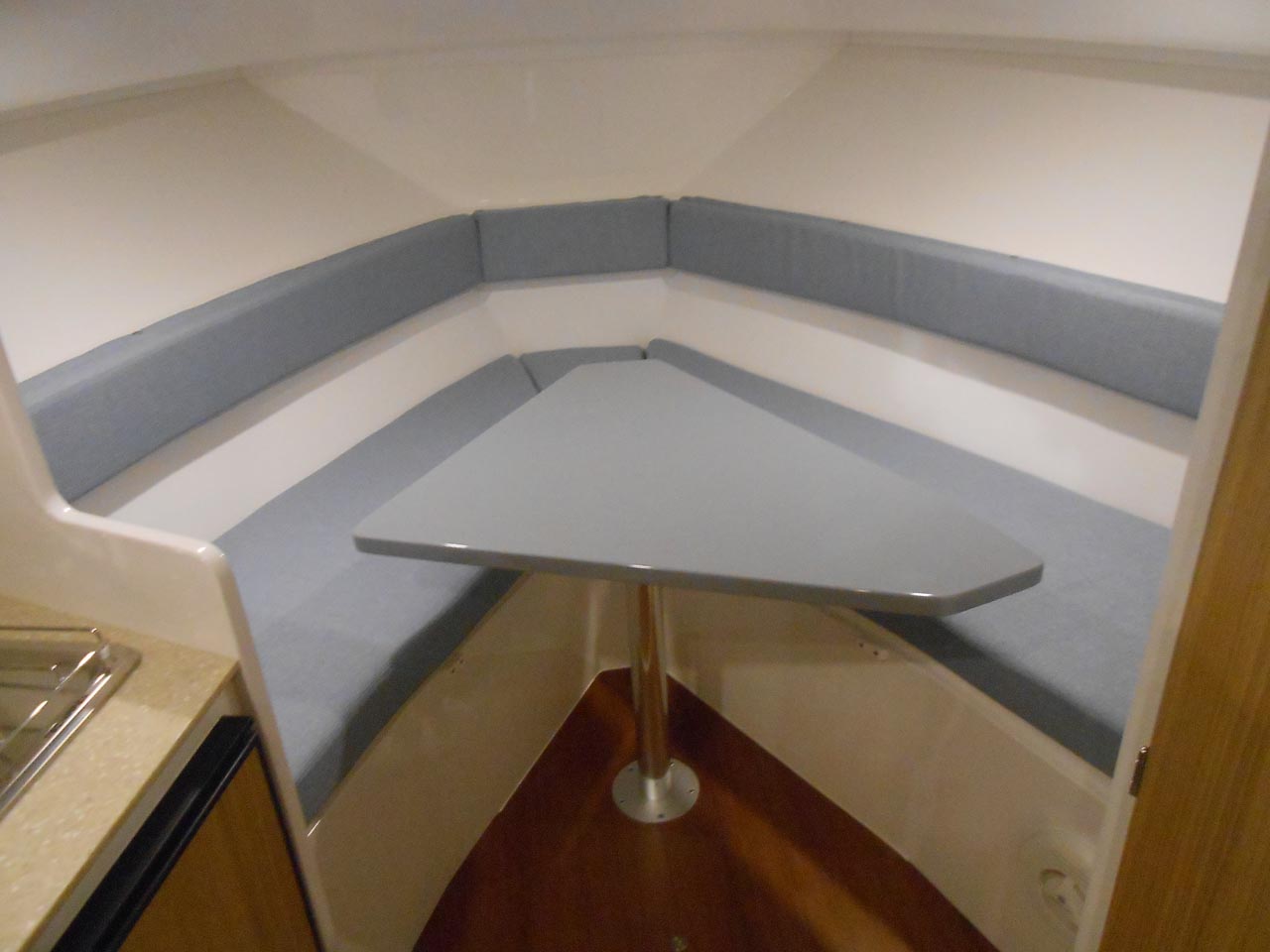

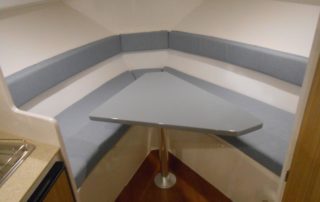

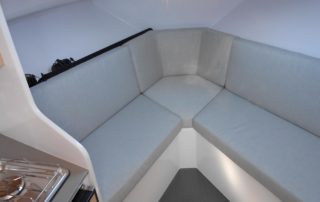

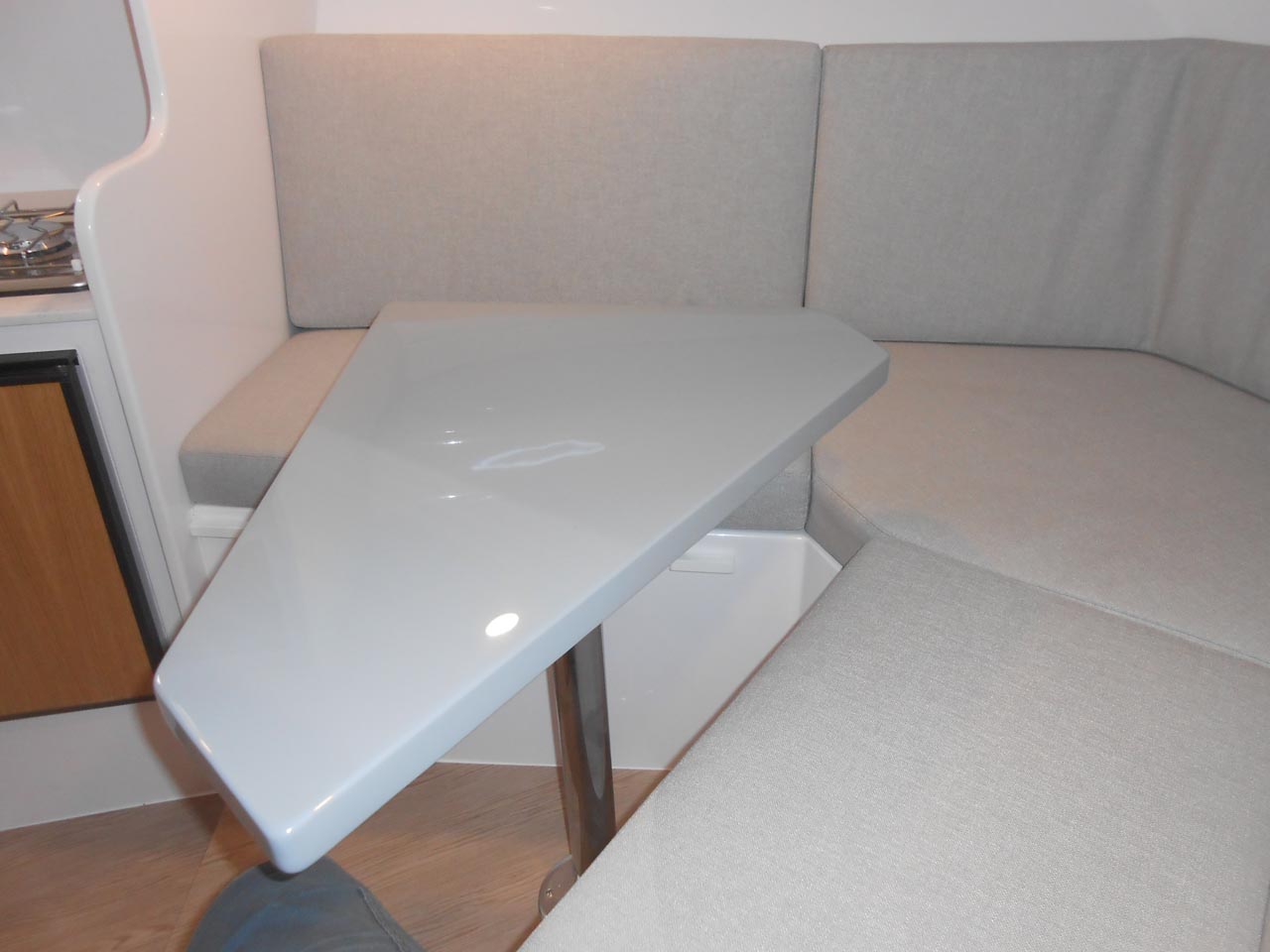

Dinette lounge with cushions convertible into berth for two

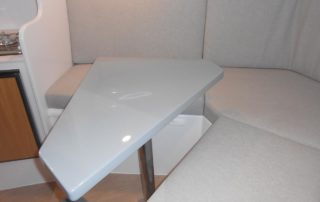

Dinette table in wood
Storages below lounge
Clock, barometer and thermometer with hygrometer

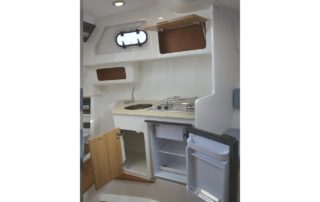

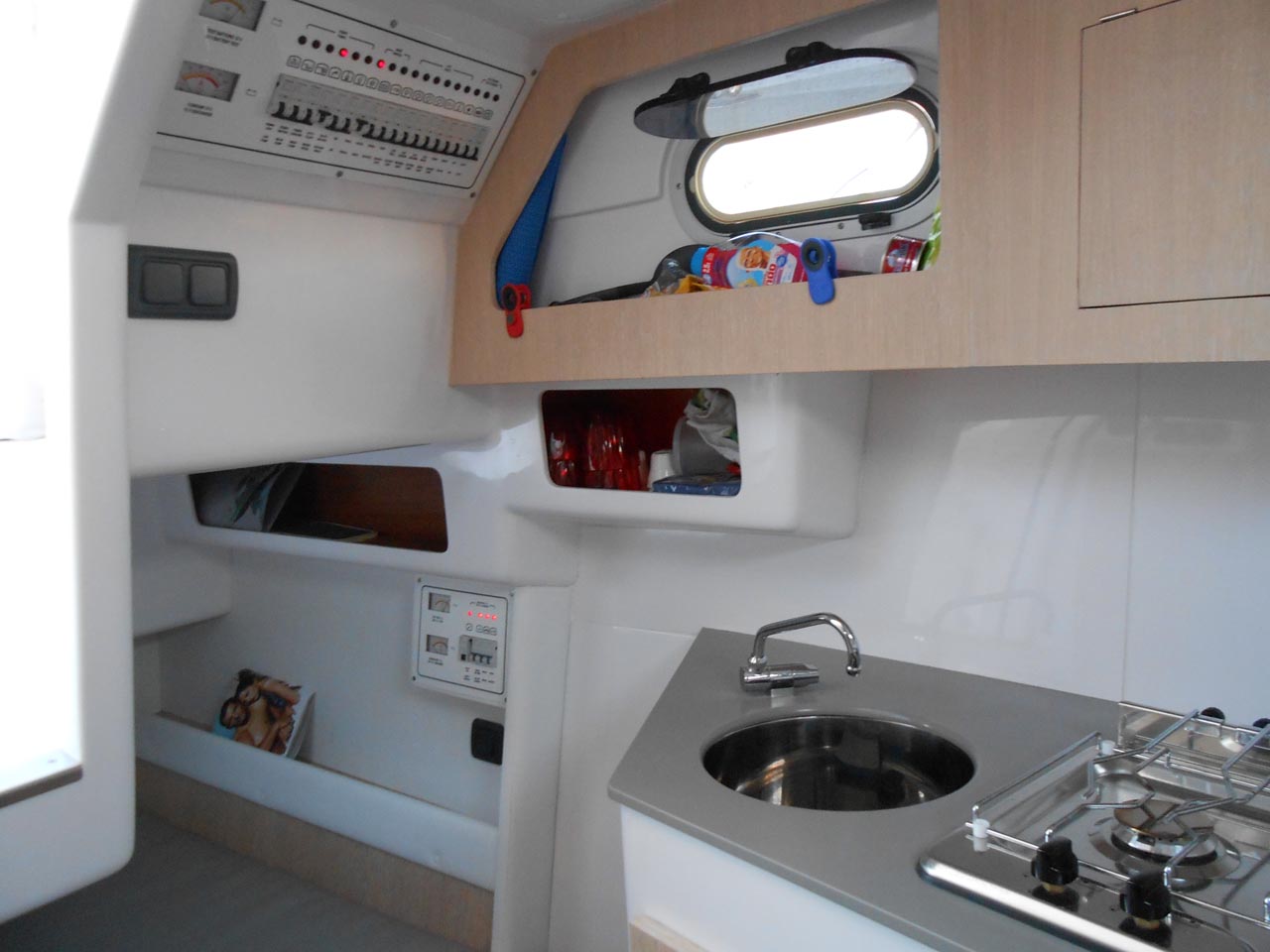

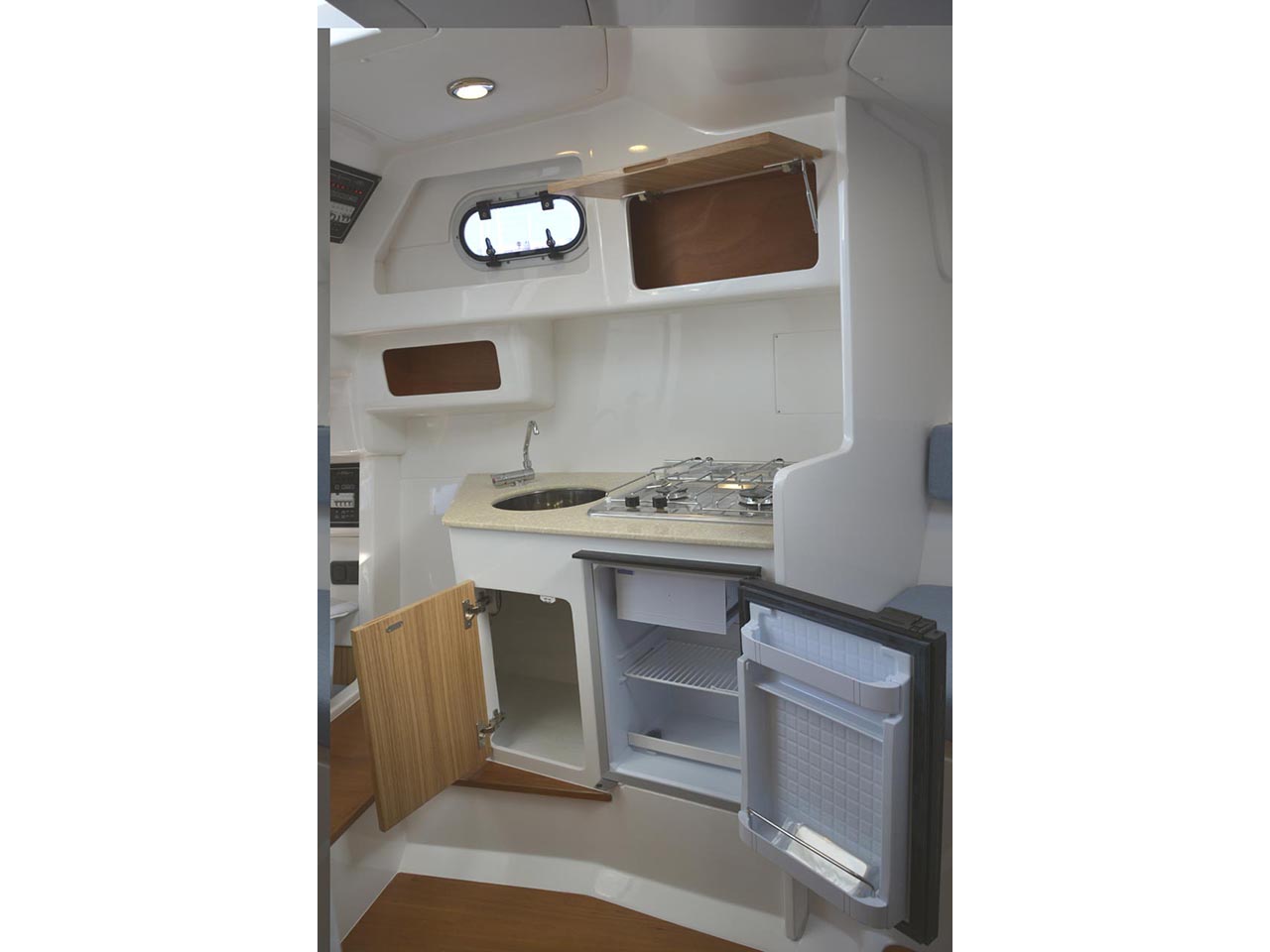

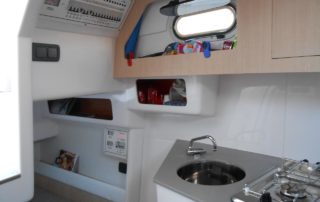

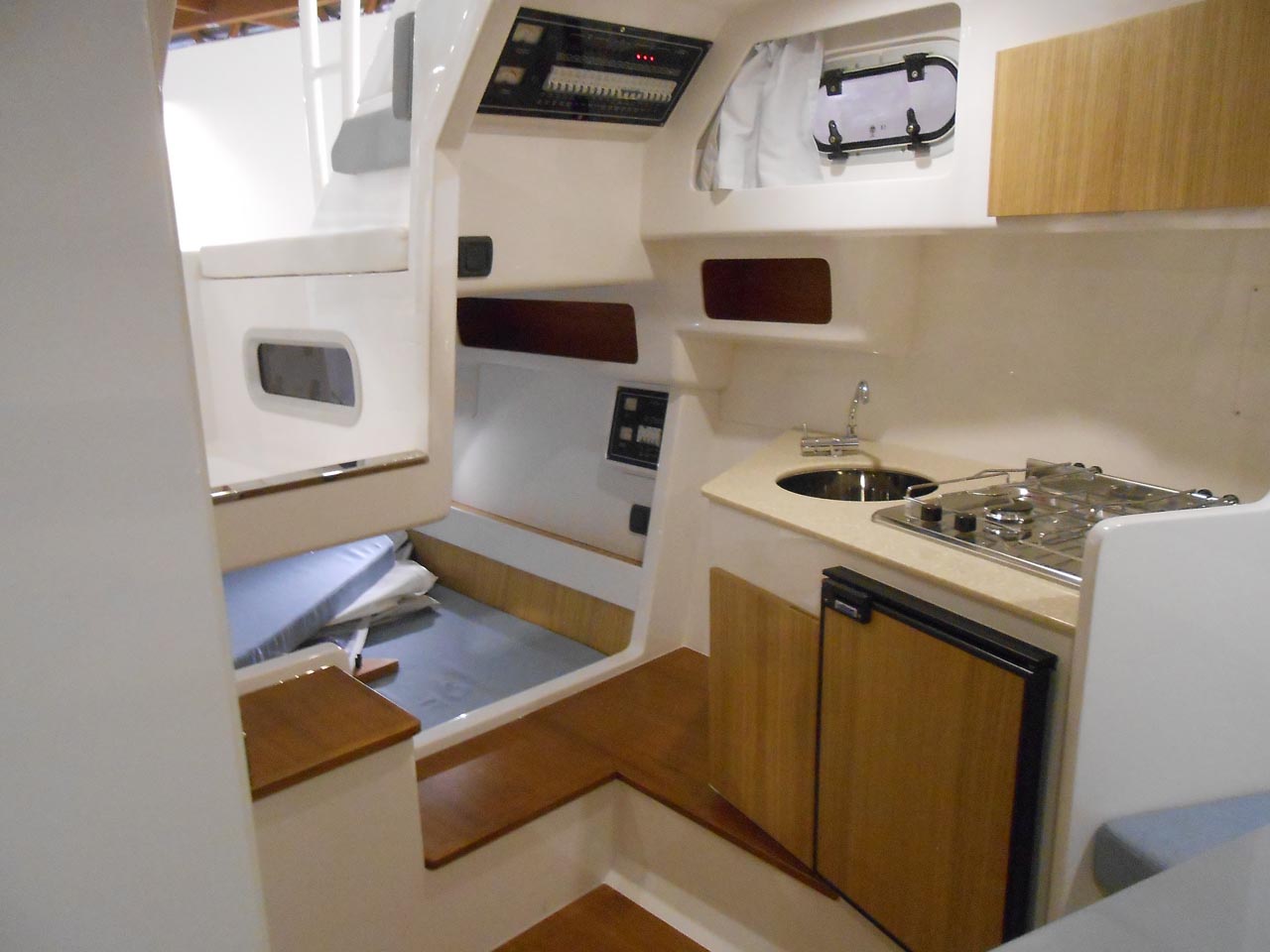

2-burners cooker
Stainless steel sink in the kitchen
Double berth with mattress in the bank

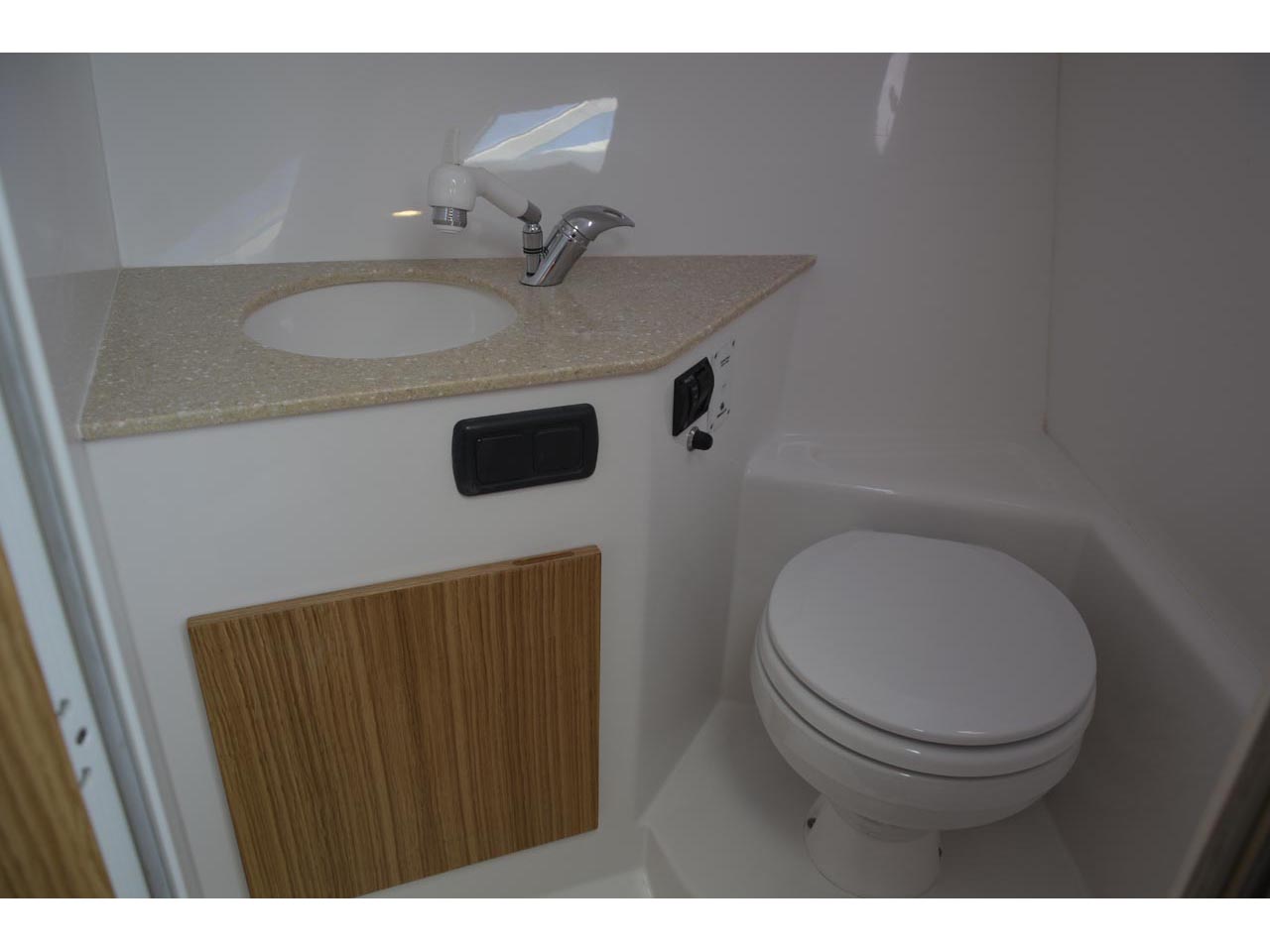

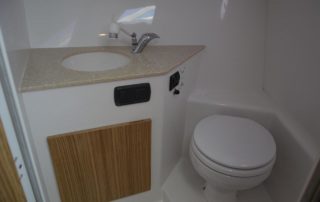

Bathroom
Electrical toilet
Waste system with holding tank, level and filter
Bathroom sink
Inside furniture and cabin floor in wood
STANDARD OUTDOOR FITTING
Hull
Gel coat
Hand-laid fiberglass with vinyl ester resin skin coats
Termanto cored topsides
Solid fiberglass bottom
Antifouling bottom paint
PVC rubbing strake
Deck
Gel coat
Hand-laid fiberglass
Termanto core
Structures
Ply-Foam stringer system
Plywood bulkheads
Navigational lights
Navigational lights
Stainless steel support for 360° light
Radar reflector
Hatchway and portholes
n° 1 aluminium hatchway with plexiglas in the bow cabin
n° 2 aluminium portholes with plexiglas
n° 1 aluminium porthole with plexiglas in the bank

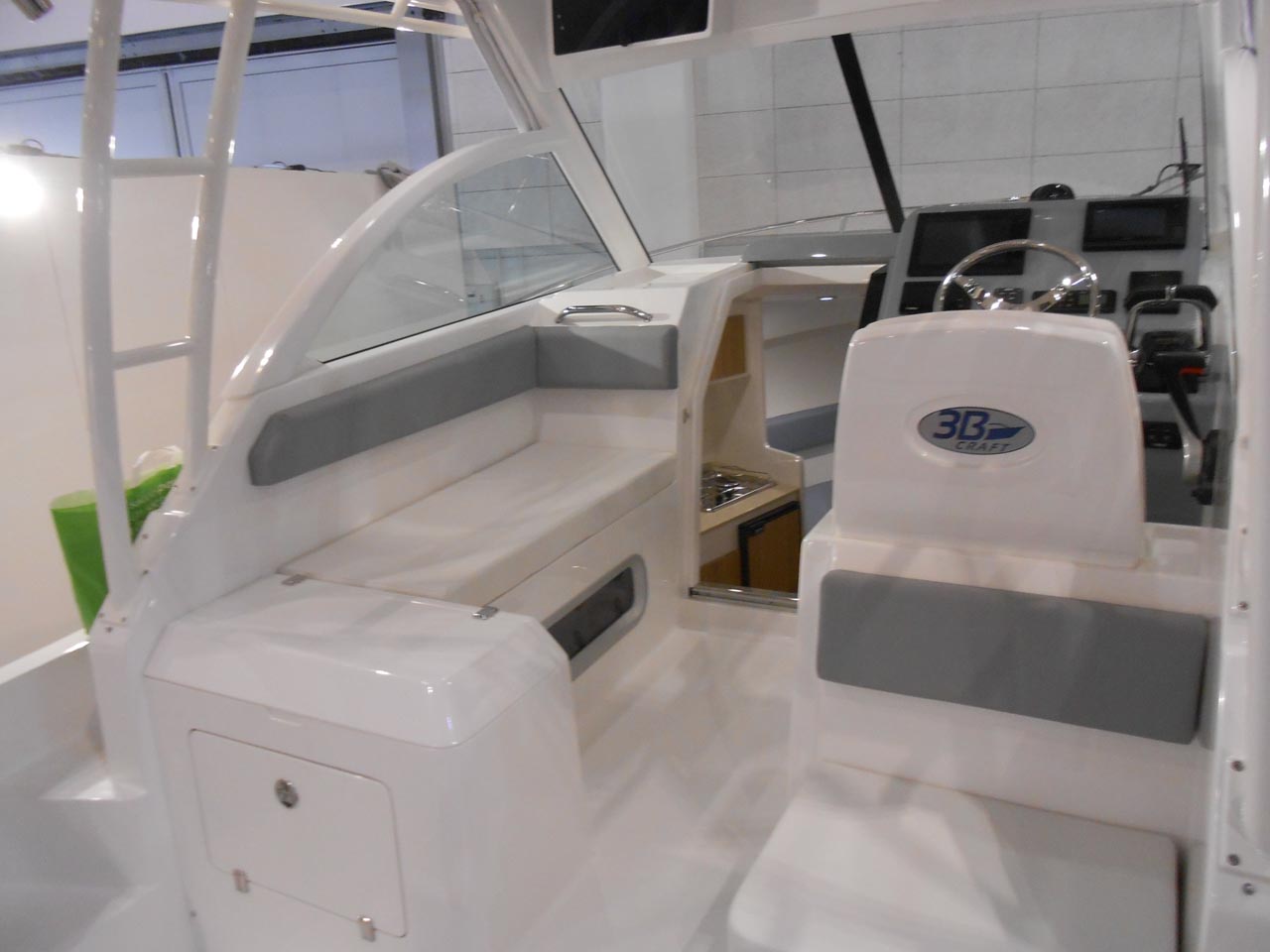

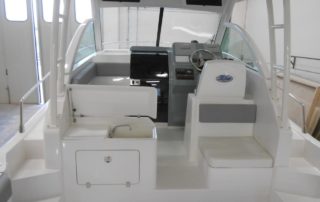

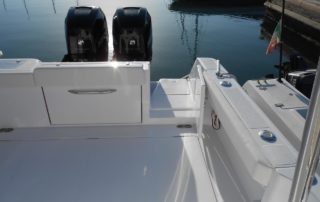

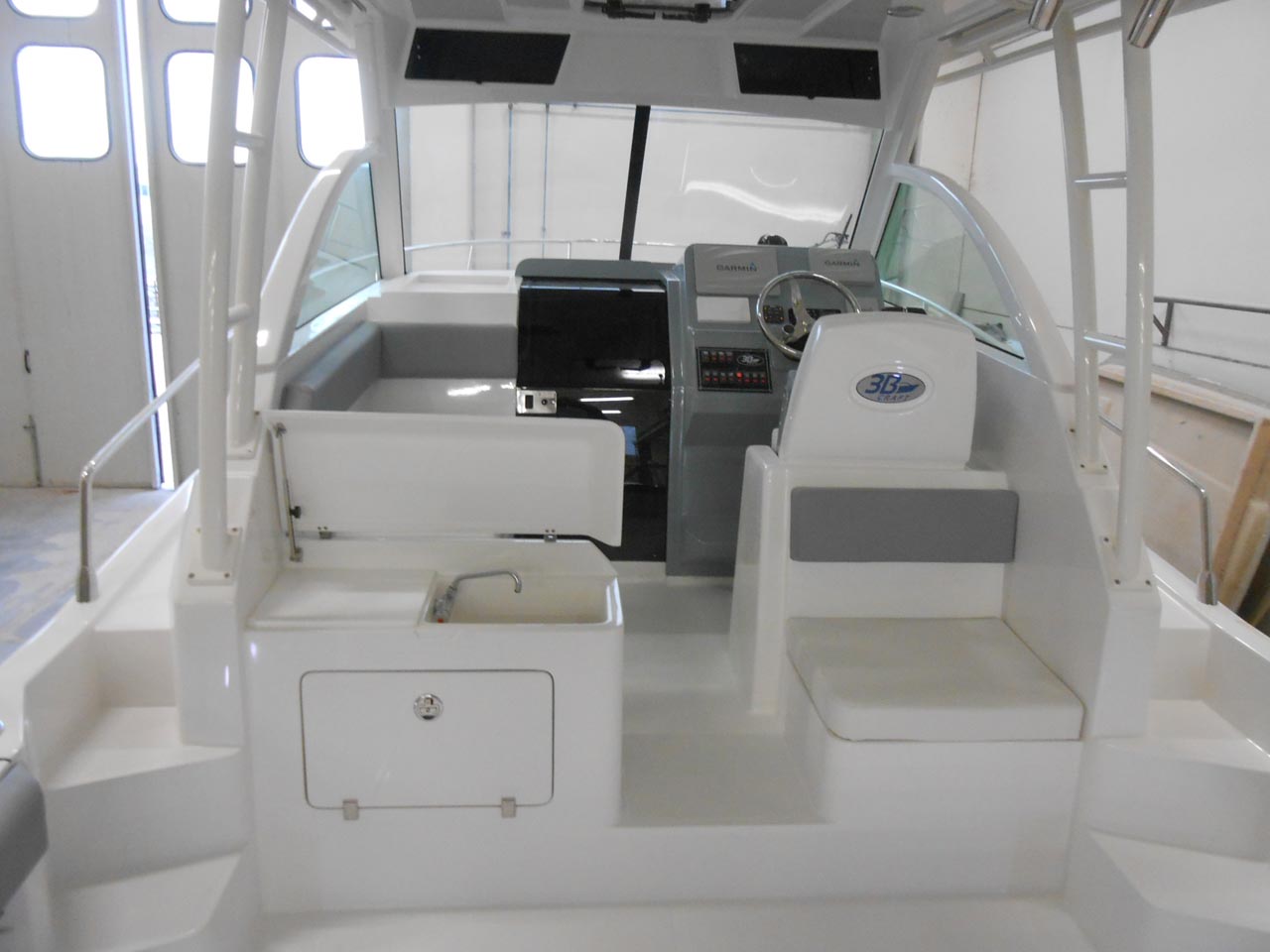

Cockpit and deck fitting

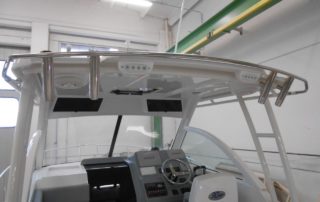

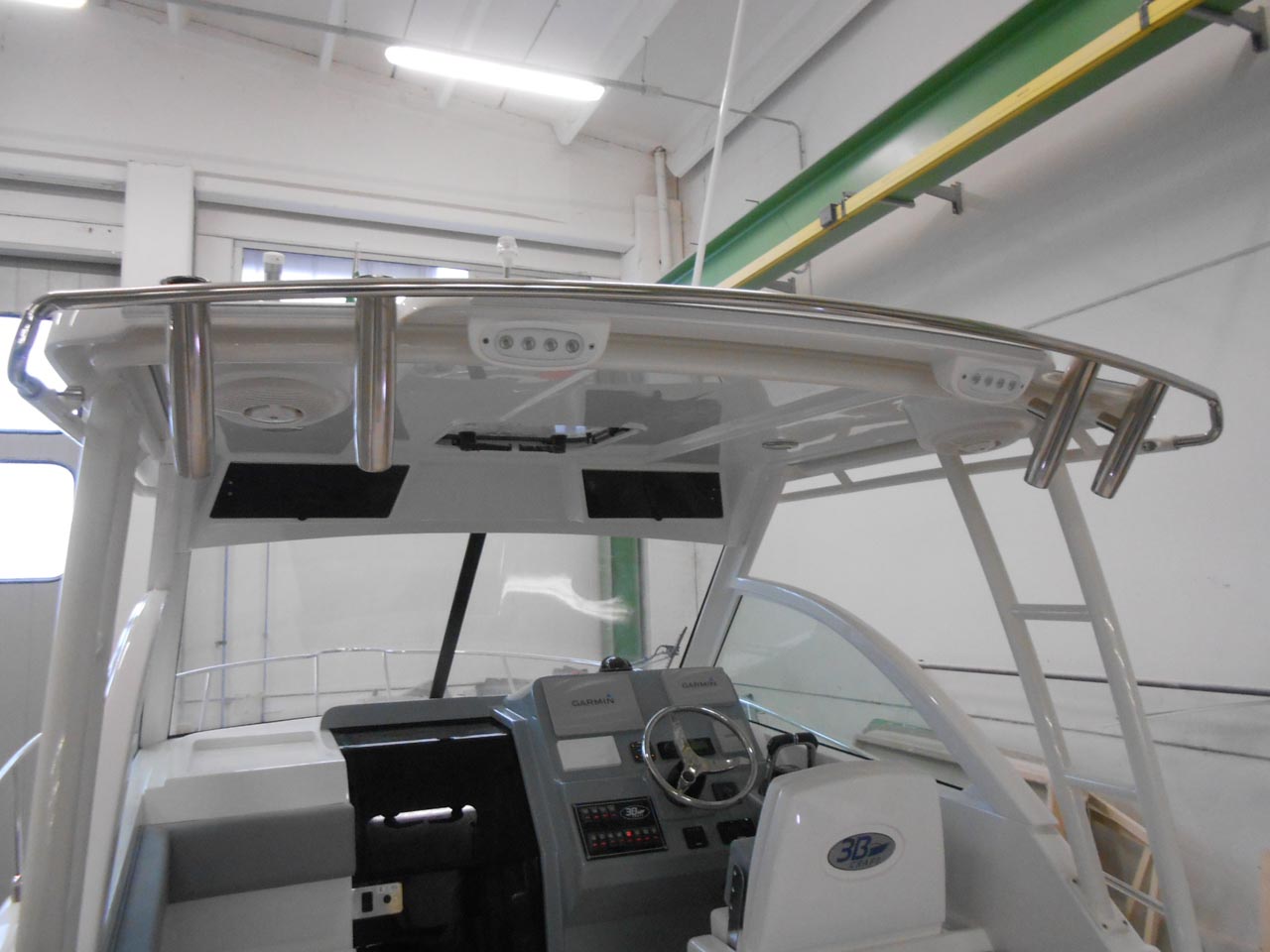

Fiberglass Hard Top
Stainless steel structure with 4 rod holders
Hard Top total enclosures
n° 1 aluminium hatchway with plexiglas in the Hard Top
Cockpit lights
Glued tempered glasses
Windshield wiper with washer
Stainless steel bow pulpit
Bow plate
Delfiniera included in the hull mould
Chain peak with drain
n° 6 stainless steel fixed mooring cleats
n° 2 stainless steel stern mooring hawsers
n° 8 stainless steel built-in rod holders
Acoustic warning signal

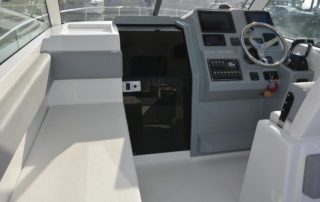

Pilot chair
Co-pilot bench
Cockpit paddings
Courtesy lights

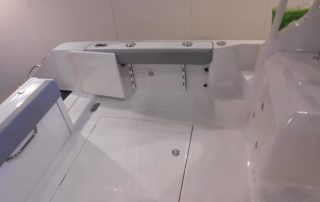

Cockpit storage
Stainless steel boarding ladder

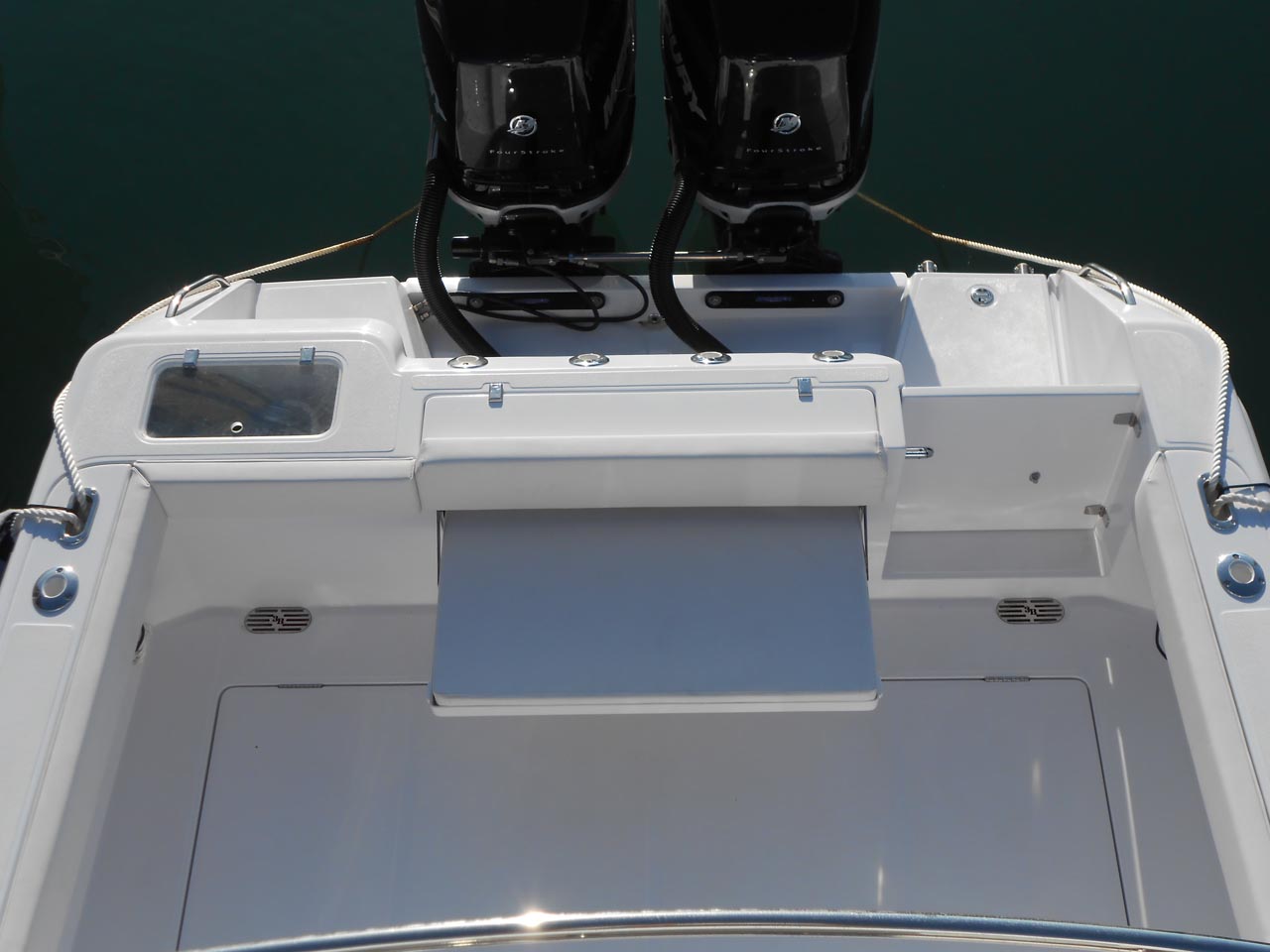

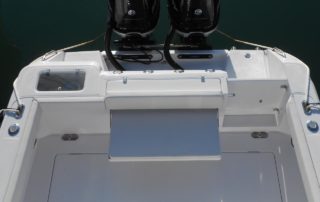

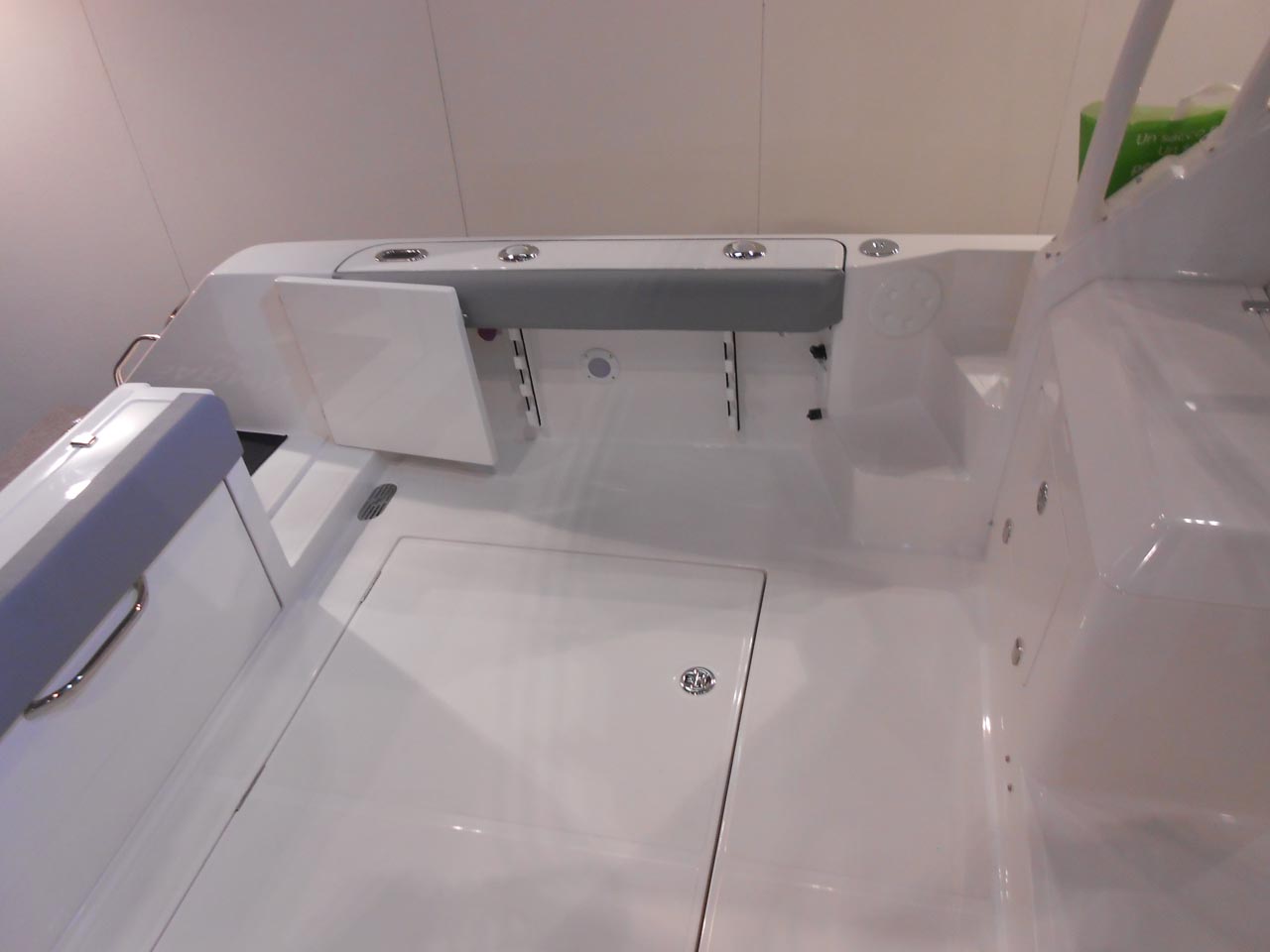

Self-draining cockpit

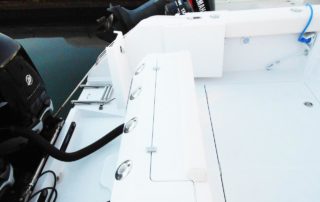

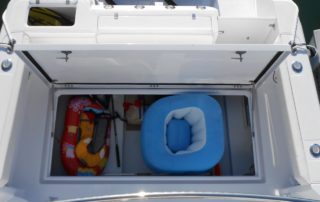

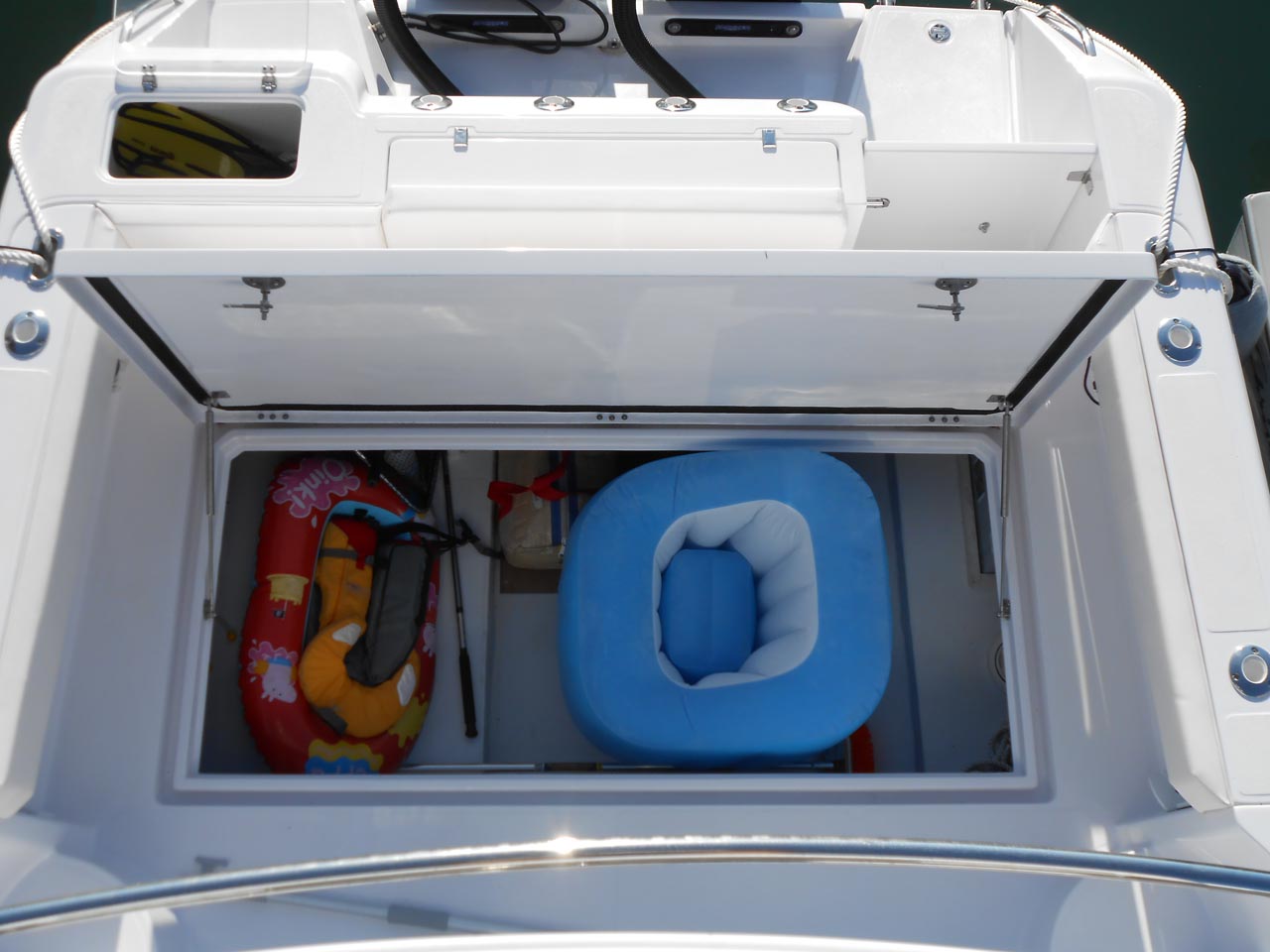

Transom fish box with pump

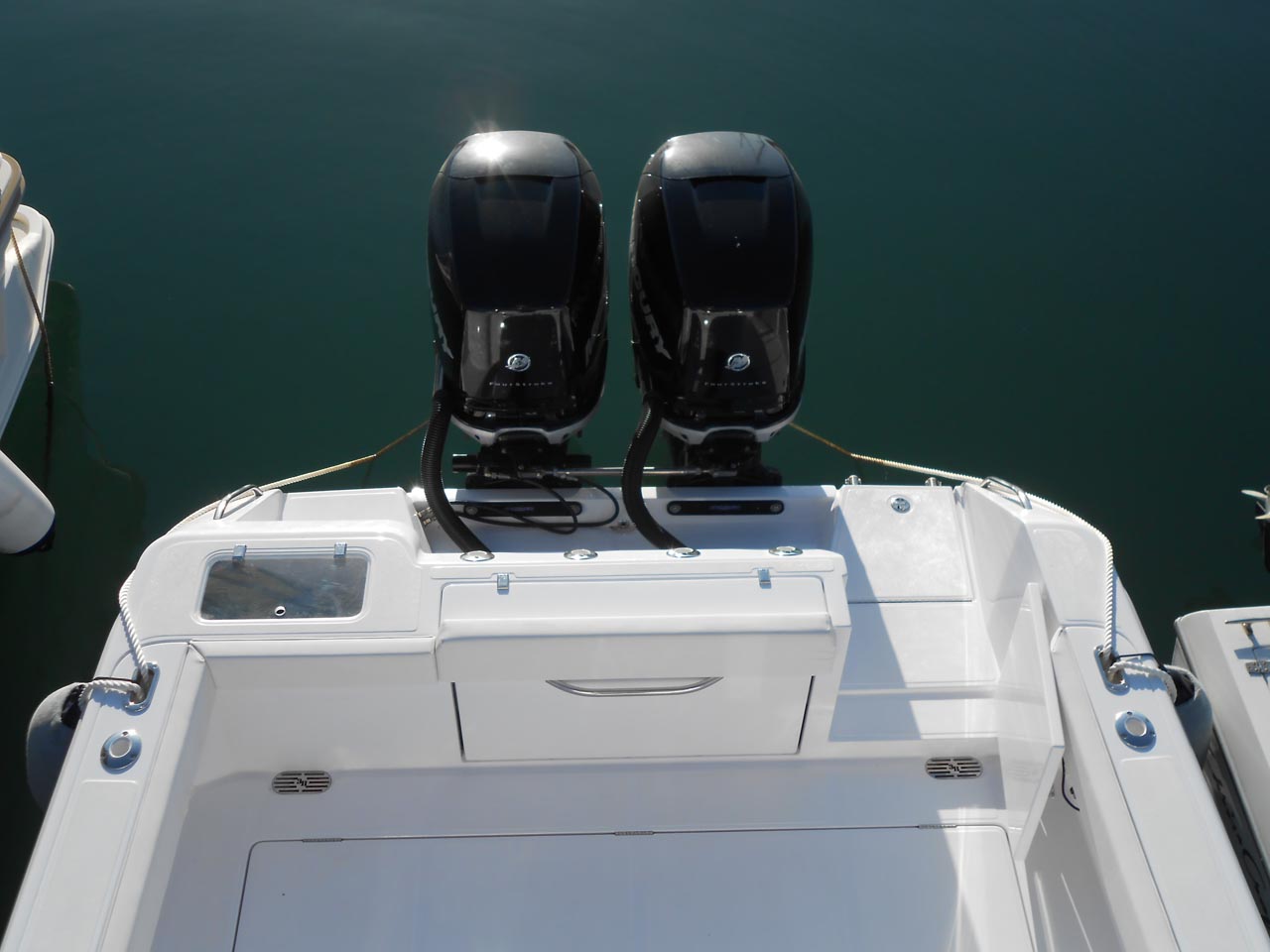

Transom door with tuna gate
Non-skid surface on the deck and the cockpit
OPTIONAL ACCESSORIES
Cockpit sliding curtain
Electrical windlass 700 W with anchor and 50 m zinc plated chain Ø 6
Battery charger 40 Ah with cable with shore power, 220 V sockets and electrical panel with ground fault circuit interrupter in the cabin
2 x 12 V sockets in the cockpit
Hydraulic trim tabs system 12 V with stainless steel plates and digital trim tabs indicators
Cockpit sea water pump
Fresh water shower in the cockpit
Electrical hot water heater 220 V – capacity 15 l
Bow propeller
42 l refrigerator 12 V
Sound system Fusion with stereo Apollo MS-RA670 and 4 speakers
Bow sundeck

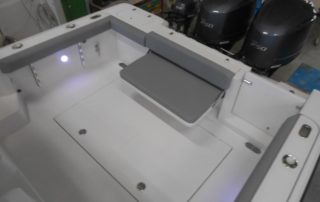

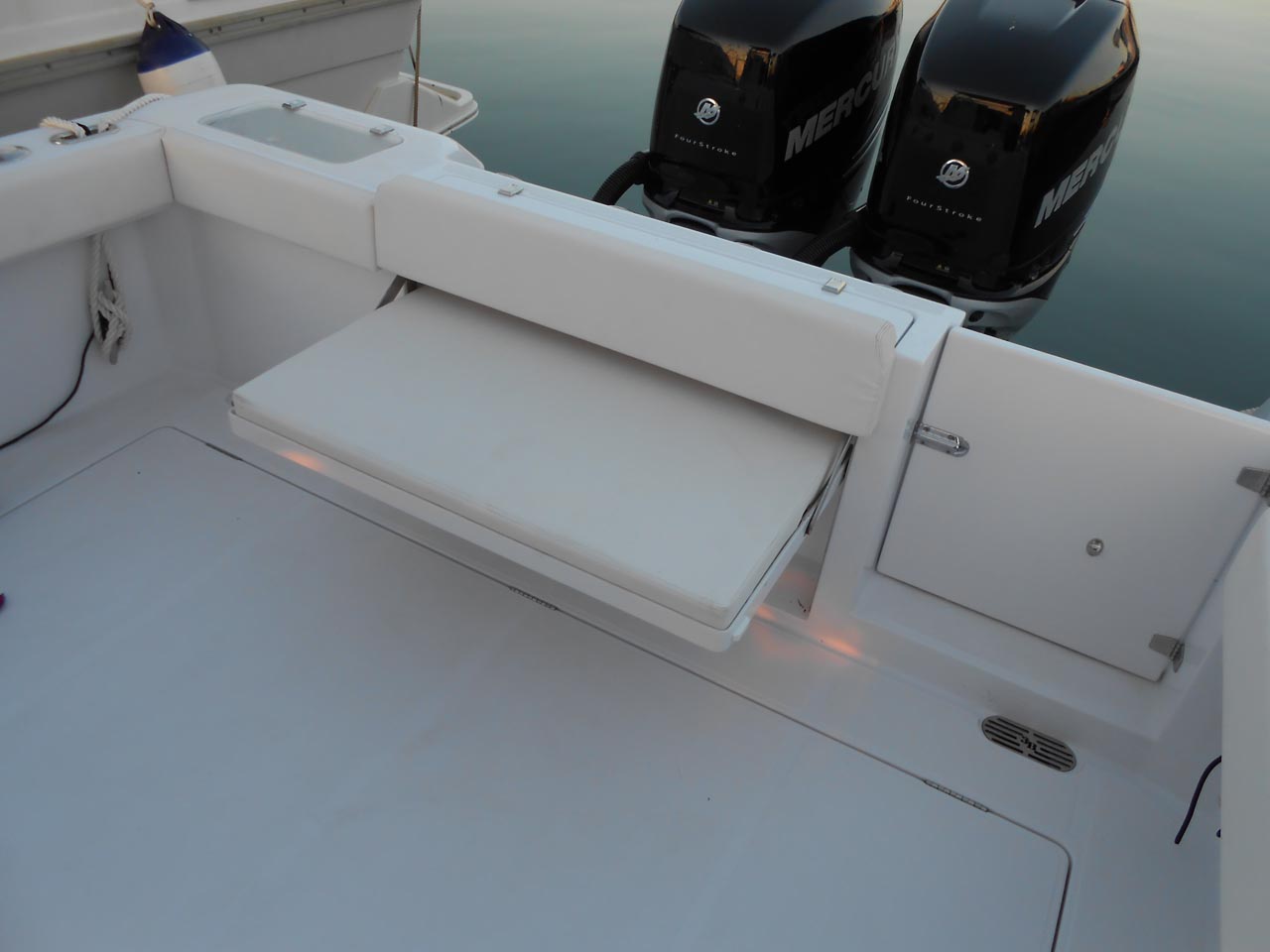

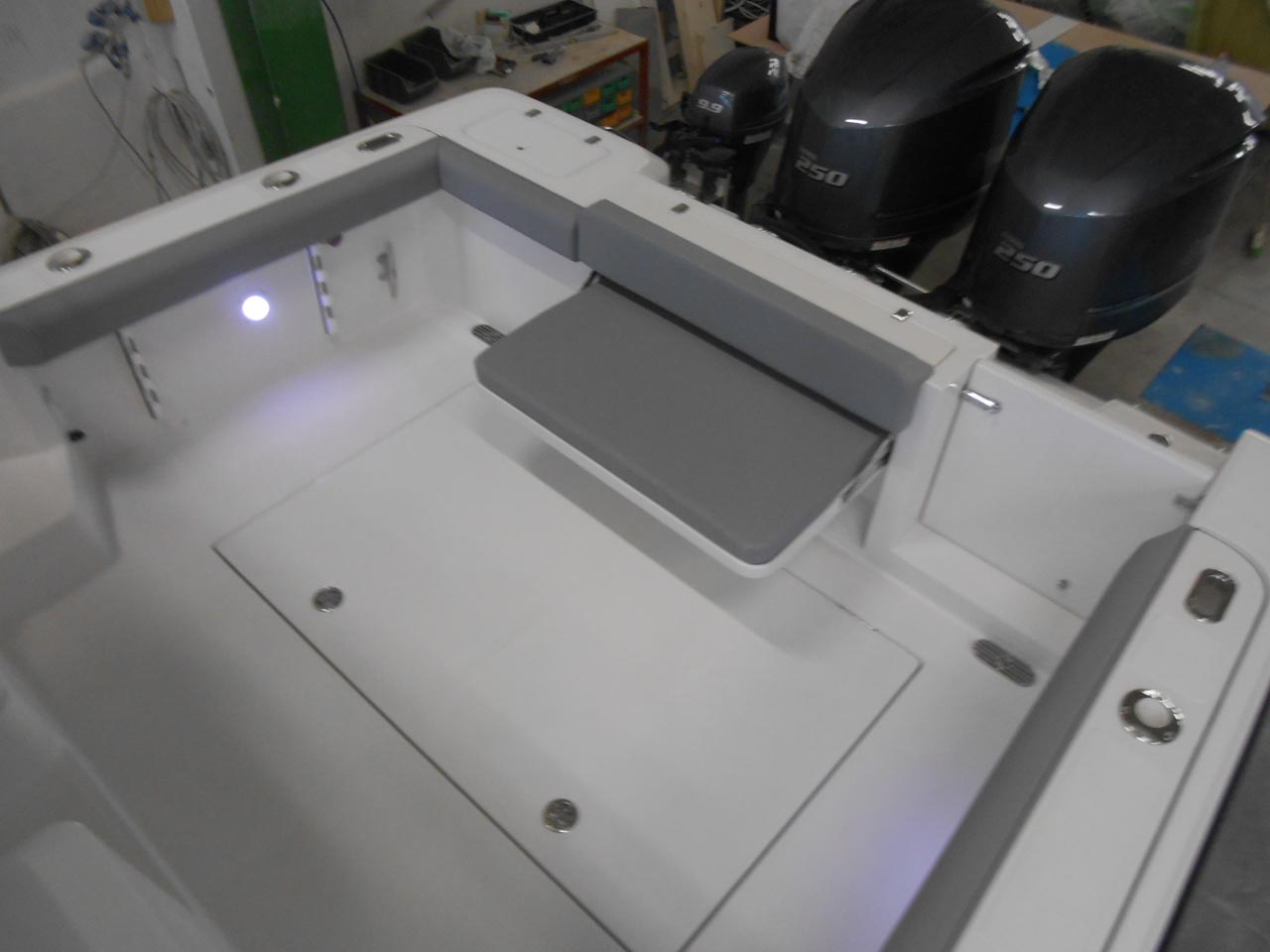

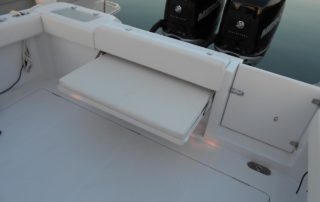

Opening stern bench with cushion
Photovoltaic panel system 12 V – total output 156 W
Custom hull GELCOAT colour (when different from white)
